NEW PILLAR H49

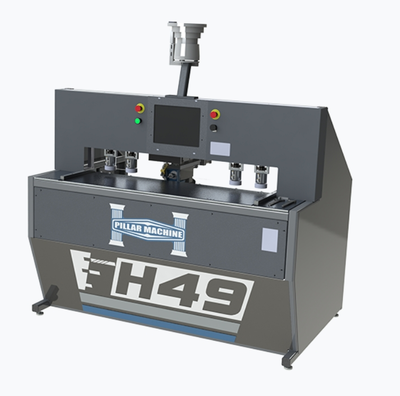

Pillar Model H49 Horizontal Bore and Dowel
The H49 is a horizontal bore and dowel CNC machining center used for case construction in cabinet or furniture manufacturing
With the H49, you get quick and accurate assembly, gaining production times on CNC routers and point to points by shifting horizontal boring to this machine
It is designed to CNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water, then insert a dowel
into the hole
There are 2 working zones on the standard H49 model allowing for pendulum processing
While one part is being machined, the other zone can be loaded and queued for machining
All of this is done during a cycle time of less than one second
The H49 has a 49" Working table with 2 work zones
One 3" dust port
350 CFM
Standard Features
CNC controlled X-Axis
Digital Readout for Z-Axis
1 HP 18,000 RPM Direct Drive Spindle
49" Work Area
15" Color Touch Screen
8mm Dowel Inserter
Sealed Glue System
Options
96" Work Area
Barecode Reader
Dowel Length from 30mm to 35mm
6mm Dowel Inserter
Larger capacity dowel bow
