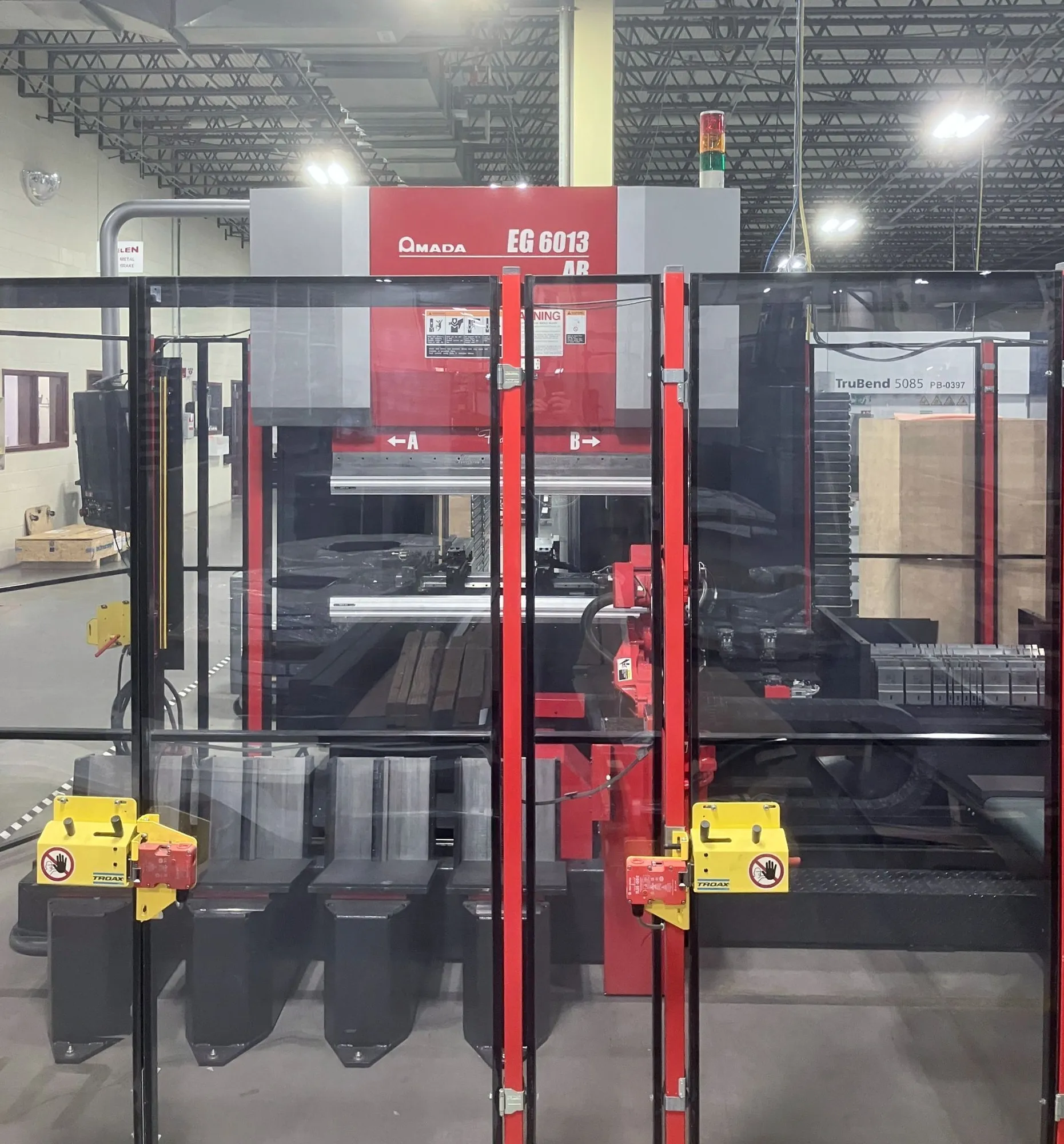

USED 2017 AMADA EG-6013AR
Overview
The Amada EG-6013AR uses a high speed, high accuracy servo press brake with the world's first dual servo press (DSP) drive mechanism. The press brake is combined with a robot for optimum bending of small parts. The combination of precision press brake & robot offers consistently high & accurate production.
Specs
Equipped With
FULLY AUTOMATIC BENDING SYSTEM
AMADA EG-6013R PRESS BRAKE (60 TON CAPACITY)
AMADA EG-ROBOT (22LB CAPACITY, 6 ARTICULATED AXES & 1 TRAVEL AXIS)
AMADA AMNC 3i CONTROL
DUAL SERVO PRESS (DSP) DRIVE MECHANISM
SERVO-ELECTRIC MOTORS
DEDICATED ENCLOSURE
(4) PART LOADING TABLES
UNLOADING CONVEYOR
GRIPPER STATION
TOOL STOCKER
TOOLING INCLUDED:
PUNCHES:
001611 - 695mm 2.3mm radii / 86°
206665 E- 695mm 0.6mm radii / 30°
205665 E - 695mm 0.6mm radii / 86°
204665 E - 695mm 0.6mm radii / 86°
DIES:
897835 - 695mm
897865 - 695mm
898265 - 695mm
891235 - 695mm
** FULL REPLACEMENT COST OF SYSTEM, AS EQUIPPED - $550,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
