NEW PILLAR HPJ

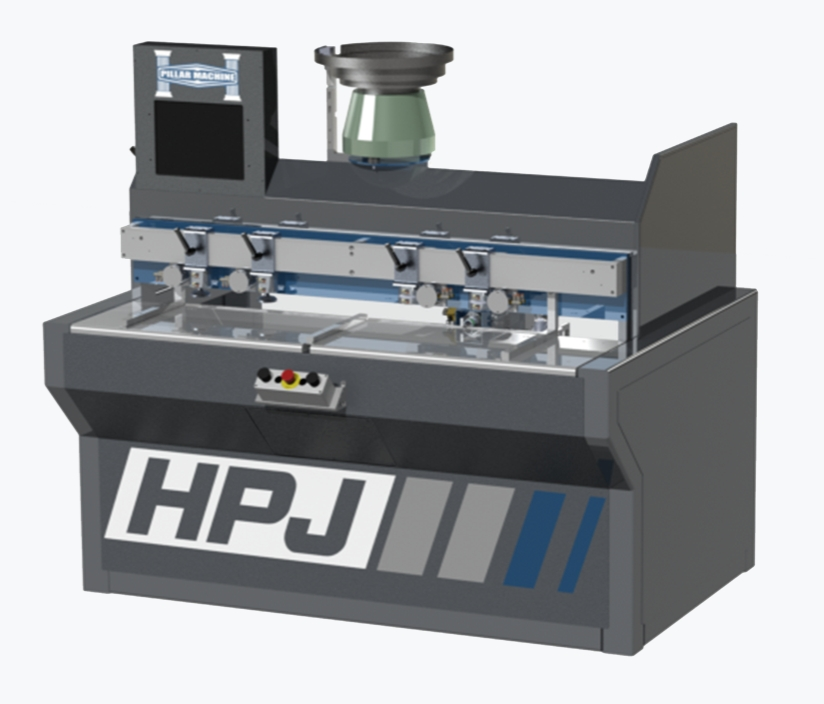

Pillar Model HPJ Horizontal/Vertical Bore and Dowel Machine
The HPJ machine is a horizontal and vertical point to point bore and dowel insertion machine center used for case construction in cabinet or furniture manufacturin
With the HPJ, you get quick and accurate assembly, gaining production times on CNC routers and point to points by shifting horizontal boring to the HPJ
It is designed toCNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water, then insert a dowel into the hole
While one part is being machined, the other3 zones can be loaded and queued for machining
All of this is done during a cycle time of less than one second
The HPJ has a 49" working table with 4 work zones
Standard Features
CNC controlled X-Axis
Digital Readout for Z-Axis
3 HP 18,000 RPM Direct Drive Spindle
49" Work Area with 4 work zones
15" Color Touch Screen
8mm Dowel Inserter
Sealed Glue System
18" Dowel Bowl
One 3" dust port
350CFM
Options
96" Work Area
Barecode Reader
Dowel Diameter from 6mm to 5/8"
Dowel Length from 30mm to 5"
Extra Spindles
Single Axis Routing
Servo Controlled Z and Y Axis
Laser Part Measuring
