USED 2024 HAAS ST-30Y

Illinois, United States
Asking Price
USD $149,900.00
1 available
Your Partners in productivity. 520 Machinery Sales specializes in new and used machine tools sales.
Overview
CNC Lathes

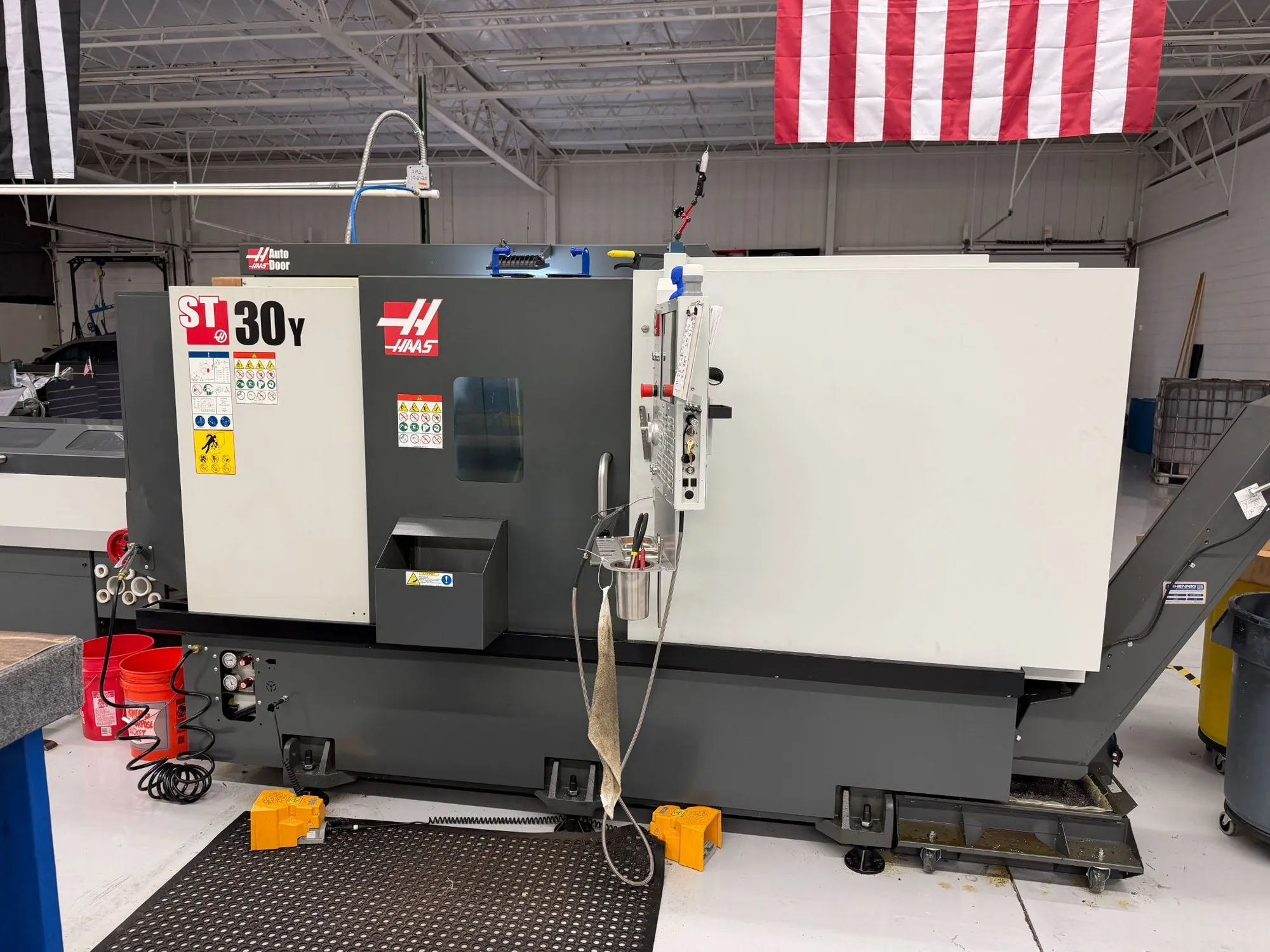

2024 HAAS ST-30Y W/ Haas Servo 300 Bar Feeder. Machine is in excellent condition and can be viewed under power as needed. Very low hours and well equipped with great options.

Specs
Live Tooling
Yes
Yes
Y-Axis
Yes
Yes
Sub Spindle
Yes
Yes
Swing
31.75"
806.45 mm
Machining Length
584.2 mm
23"
# Axis
4
4
X Travel
12.5"
317.5 mm
Z Travel
26"
660.4 mm
Y Travel
2"
50.8 mm
Chuck Size
10"
254 mm
Bar Capacity
3"
76.2 mm
Power
30 hp
22.4 kW
Max RPM
4,500 RPM
4,500 RPM
Turning Dia
18"
457.2 mm
Tailstock
No
No
Barfeed
Yes
Yes
Equipped With

LOW HOURS!
Chip Conveyor
Parts Catcher
Sub Spindle
Chucks-Main & Sub
Tool Holders on Turret
Bar Feeder
Macros
Rigid Tapping
M19 Spindle Orient
VPS Editing
Media Display
Max Memory: 1G
Wireless Networking
Compensation Tables
Max Spindle Speed 4500RPM
Max Sub-spindle Speed: 4200RPM
Max LT Spindle Speed: 6000RPM
