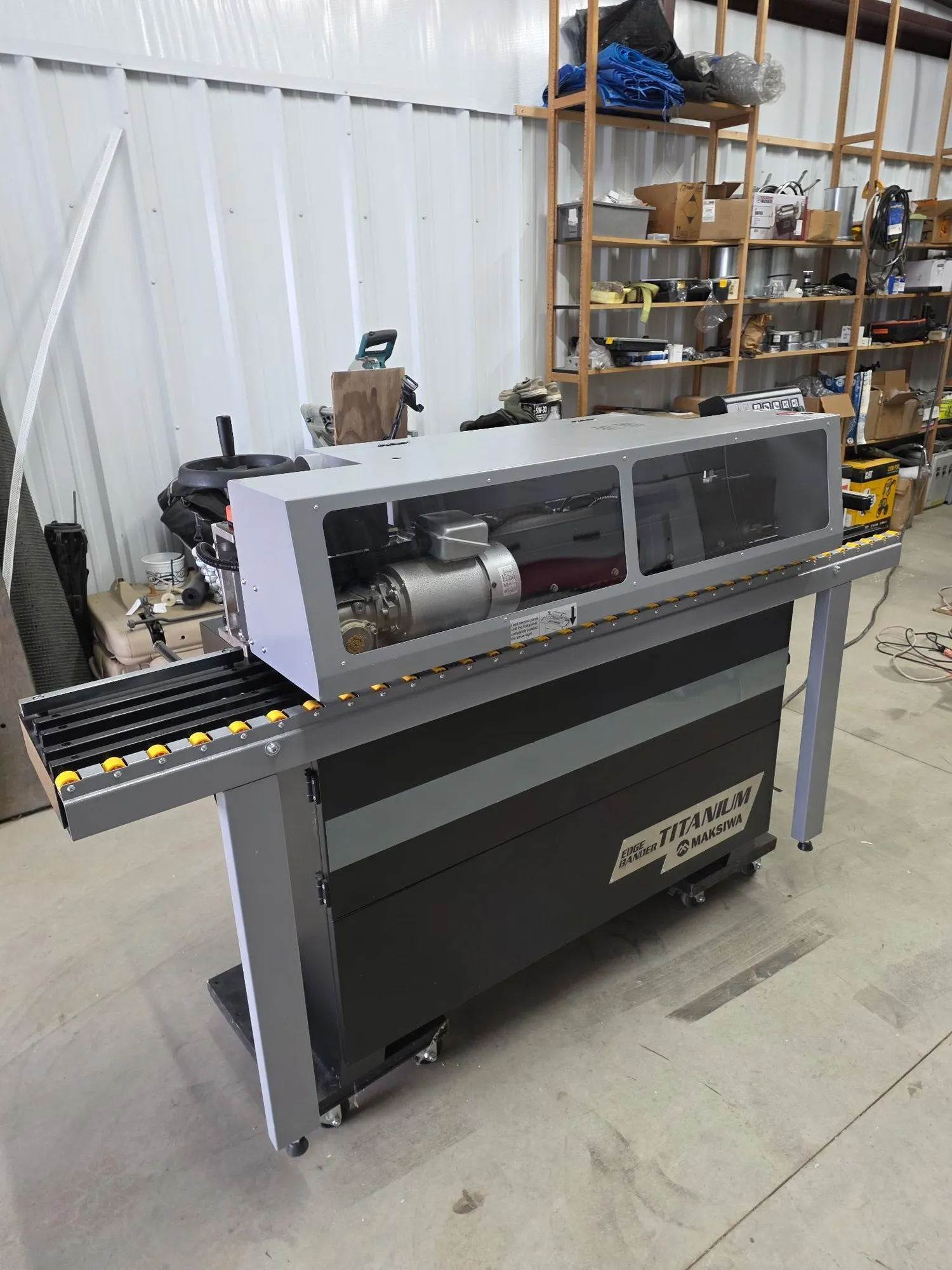

USED 2023 MAKSIWA CBD.T
Overview

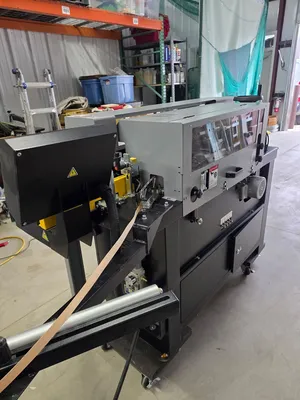

Super clean, low use pre-owned Maksiwa Titanium 3mm Edge-bander. Completely gone through by a certified edge-bander technician. Ready to ship. Can be crated for an extra fee.
Capacities & Performance
• Edge Tape Thickness: 0.4 mm – 3 mm (0.0157" – 0.118")
• Panel Thickness: 12 mm – 45 mm (31/64" – 1-3/4")
• Automatic Feeding Speed: 16 ft/min (5 m/min)
• Min. Panel Length: 9-7/16" (240 mm)
• Min. Panel Width: 4-3/4" (120 mm)
• Glue Pot Capacity: 2 lbs (1 kg
Features:
• Stainless-Steel Mono-Block Base
• Friction-Free Worktable
• Automatic Panel Feed System
• Dual Pressure Rollers
• Pre-Heated Infeed Fence

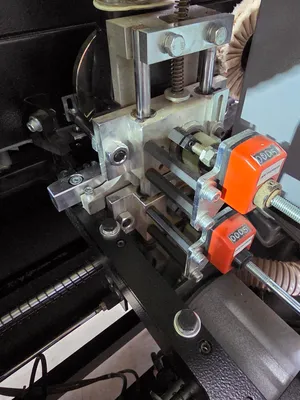

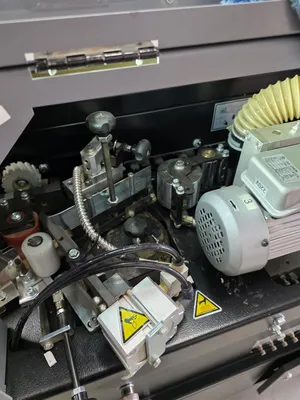

• Flush Trimming

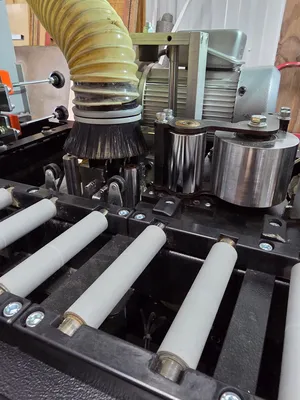

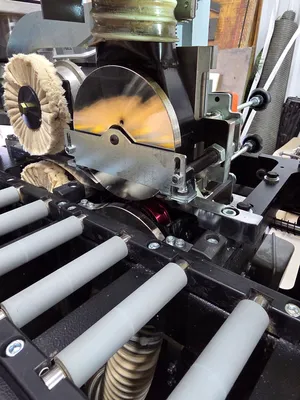

• Dual Buffing Units

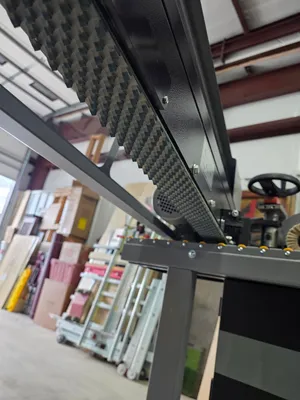

• Extendable Panel Support Rails

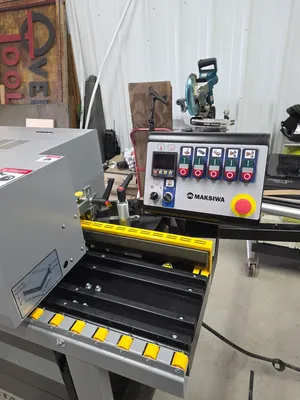

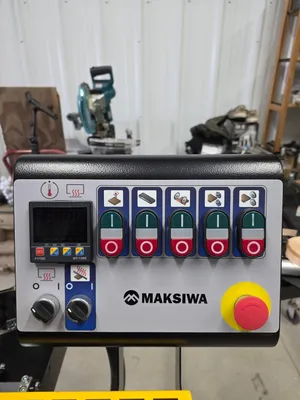

• Push-Button Control Panel
• Digital Temperature Control
Specs
Technical Information SAE METRIC
Automatic Feeding Speed 16ft/min 5m/min
Panel Thickness Min/Max 31/64" - 1-3/4" 12 - 45mm
Edgebanding Thickness 0.0157" - 0.118" 0.4 - 3mm
Max Edgebanding Height 2" 50mm
Minimum Panel Width 4-3/4" 120mm
Minimum Panel Length 9-7/16" 240mm
Extendable Panel Support Rail Length 78-21/32" 1998mm
Extension Table Max Width 12" 310mm
Edgebanding Coil Support Diameter 31-1/2" 820mm
Edgebanding Material Melamine/PVC/ABS/PP/Veneer/Laminate

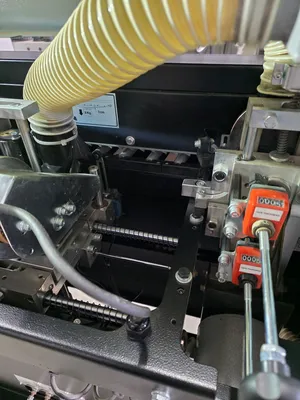

Dust Collection Port (2) 4" 100mm
Dust Collection Requirement 700 CFM
Air Pressure Requirement 6.8 SCFM @90 PSI - Air dryer system required
Glue Type High Temperature Pellet Glue EVA
Glue Temperature Range 356°F - 410°F 180°C - 210°C
Glue Pot Capacity 2lbs 1kg
Machine Dimensions 112" x 63"x 51" 2844 x 1600 x 1295mm
Shipping Dimensions 86" x 36" x 57" 2184 x 914 x 1448mm
Weight 849lbs 385kgs
Warranty 2 years

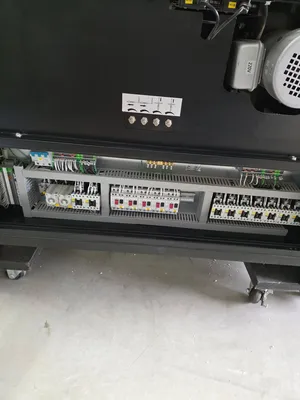

Motor/Electrical Specs
Electrical Specs 1 Phase 220V 30Amps 60Hz
Conveyer Motor 3/4HP(0.55KW)
Flush Trimmer Motor 3/4HP(0.55KW)
End Trimmer Motor 1/4HP(0.18KW)
Glue Spindle Motor 1/3HP(0.25KW)
Top Buffing Motor 1/4HP(0.18KW)
Bottom Buffing Motor 1/4HP(0.18KW)
Sound Rating 80 dB
