USED 2011 SCHENCK HM30BU
Overview
Specs

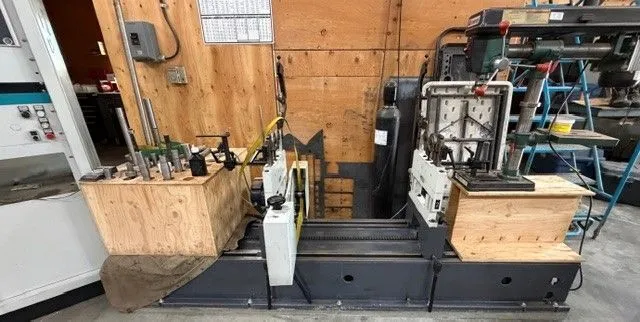

Schenck HM30BU Precision Balancer
Capacity and Rotor Limits
Maximum Rotor Weight: 700 kg (approx. 1,540 lbs total; up to 350 kg per bearing pedestal if evenly split)
Maximum Swing Diameter: 1,260 mm (over bed) / 740 mm (within motor range)
Bearing Journal Diameter: 10 mm to 160 mm
Maximum Distance Between Bearing Centers: 1,330 mm (on standard base)
Performance and Mechanics
Minimum Balancing Speed: 120 RPM
Minimum Achievable Residual Unbalance (MARU): 3.0 gmm per balancing plane
Drive Power: ~2.2 kW
Measuring Unit: CAB 820 or CAB 920 microcomputer system
Drive Type: Underslung belt drive (BU)
Power Supply: Single Phase
Equipped With

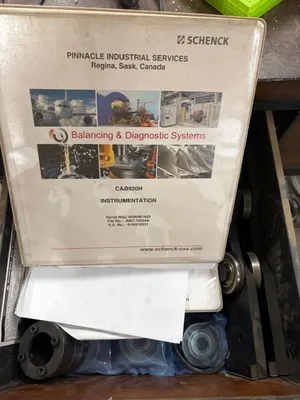

CAB 920
1550 LBS Capacity, 23" Radius, Length 100"
Belts
Rollers
Calibrated 2025
