USED 2002 TSUGAMI FMA3-II
Overview

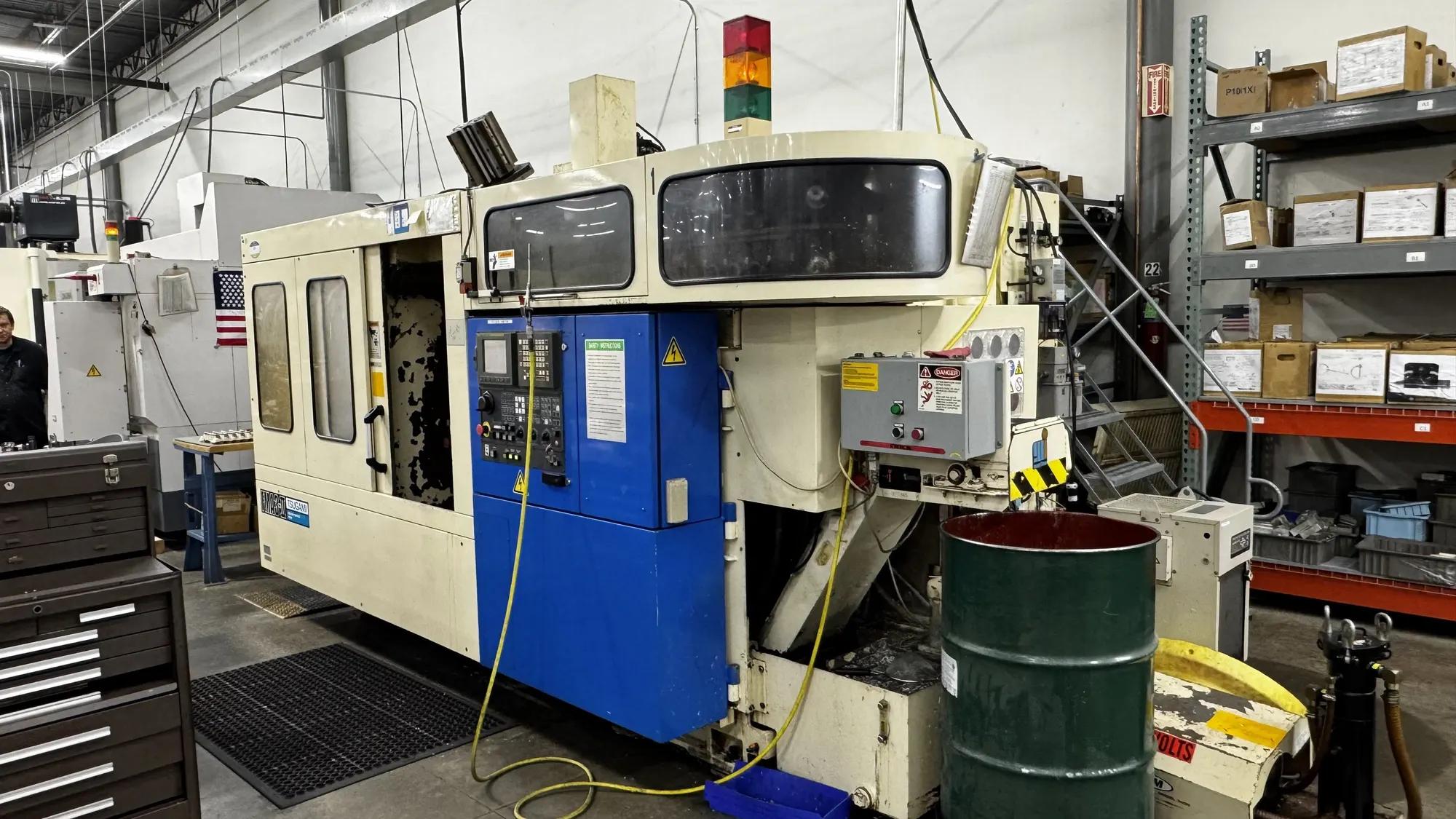

Tsugami FMA3-II 4 Axis Horizontal Machining Center (2002), 11 Pallet
Specs
Tsugami FMA3-II 4 Axis Horizontal Machining Center (2002)
X-Axis Travel (Longitudinal)14.17 inches (360 mm)
Y-Axis Travel (Cross)13.00 inches (330 mm)
Z-Axis Travel (Vertical)15.75 inches (400 mm)
B-Axis Indexing Full 4th Axis,
Spindle Motor Power10 HP (7.5 kW)
Spindle Speed Range40 to 10,000 RPM
Spindle Taper 40
Pallet Dimensions 11.75" x 11.75" (300 mm square)
Pallet Pool Capacity 11 pallets
Tool Storage Options 62 standard pots (expandable up to 128 or 190 pots)
Rapid Traverse Rate 945 inches per minute (IPM)
CNC Control SystemFanuc 16N / Fanuc MC1
Machine WeightA pprox. 24,000 lbs (12 tons)
Floor Space Required13' 3" x 8' 2" (approx. 105 sq. ft.)
Equipped With
Tsugami Fanuc MC1 CNC Control
11 Pallets
Chip Conveyor with Integrated High Pressure Coolant
Chiller
