NEW OMEC 650A

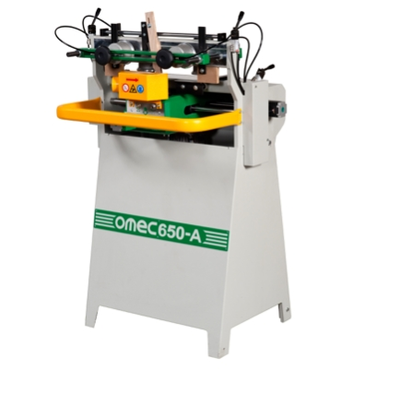

Omec Model 650A Automatic Dovetailer

Technical Data:
On board machine installed power: 2.33 HP
Working pressure Mpascal: 0.7
Number of spindles: 1
Spindle revolutions: 16,500 rpm

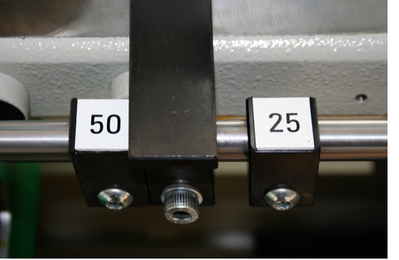

Center to center of indents: 25mm & 50 mm
Dovetail production: 40 boxes per hour
Speed, variable 0-2000 mm/minute

Workpiece Limits
Lengths: Min. 7.87" (200mm) Max. 59.06" (1500mm)
Width: Min. 2.36" (60mm) Max. 15.75" (400mm)
Indent Height: Min. 0.33" (8.5mm) Max. 0.63" (16mm)
Front Thickness: Min. 0.31") 8mm Max. 2.36" (60mm)
Side Thickness: Min. 0.31" (7mm) Max. 0.78" (20mm)

Standard Equipment
Integral Width cutter installed on the machine in HM (carbide)
Tool kit for adjustments and maintenance
User's and instruction manual
Pneumatic clamps
Servo/ballscrew driven X & Y axis movement
Dual zone machining areas
Dust collection port
Solid carbide tooling

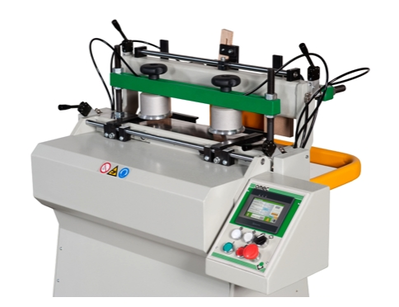

Programmable TouchScreen CNC control to regulate the number of joints, depth of grooves, height of pins, speed of cut, tool compensation, as well as placement of the joint
Fine tuning of the fit to be saved for later recall
All parts are loaded from the front without the need of accessing the back of the dovetailer with the exception of maintenance
