NEW OMEC ICM

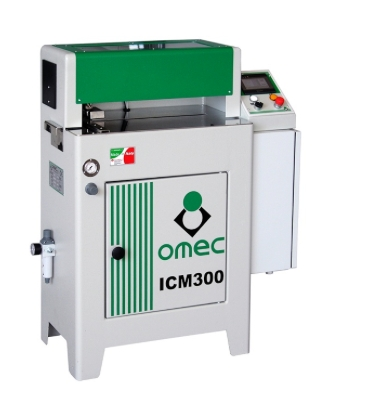

Omec Model ICM 300 Automatic Gluing for Drawers
Technical Data
On board machine installed power: 30 watts/.25HP
Working pressure: Mpascal 0.7
Glue Type: Low Viscosity Assembly Glue
Glue Tank Capacity: 9 liters/2.3 gallons
Workpiece Limits
Draw Length: min. 150mm max. 1500mm
Draw Width: min. 50mm max. 450mm
Draw Thickness: min. 5mm max. 40mm
Standard Equipment

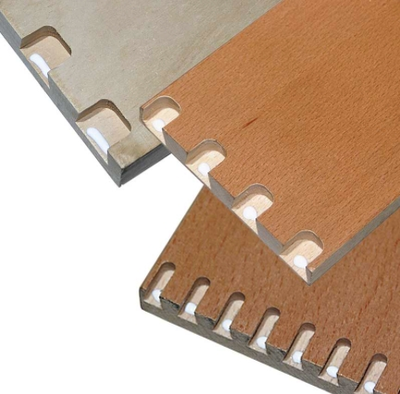

Automatic gluing machine designed to glue different types of drawers featuring dovetails, parallel joints and lock-pins
Read Less -Took kit for adjustments and maintenance
User's and instruction manual
