NEW OMEC ICA

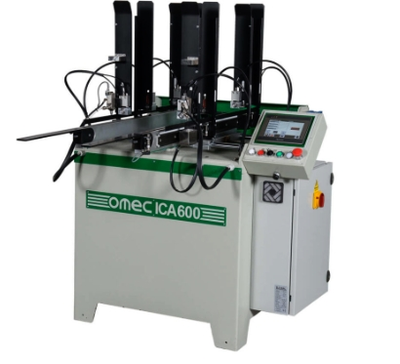

Omec Model ICA 600 Automatic Glue Machine
Technical Data:
On board machine installed power: 0.5kw
Working pressure: Mpascal 0.7
Glue Type: vinyl glue
Glue Tank Capacity: 32
Workpiece Limits
Draw Length: min. 150mm max. 600mm
Draw Width: min. 60mm max. 4050mm
Draw Thickness: min. 4mm max. 25mm
Standard Equipment
Automatic Gluing for Drawers High Production
Automatic gluer will greatly increase speed and reduce manpower in the drawer work cell
Load the hopper and it glues both ends of two panels (male or female), then conveys parts to out-feed
Components and gluer sit idle until the pieces are removed by the operator
Once the piece is removed, the machine runs the cycle again, keeping parts ready for assembly
Setup is loading the hopper, entering data into the Touch-Screen, adjusting the outer fences and aiming the glue guns
Control: ICA600 CNC Control determines glue placement and quantity so you have the right amount every time, every dovetail, every box
Touch-Screen Interface allows ease of inputting dimensions and setting control parameters
File memory offers the ability to store a glue patterns including quantity released, distance apart and overall product width
