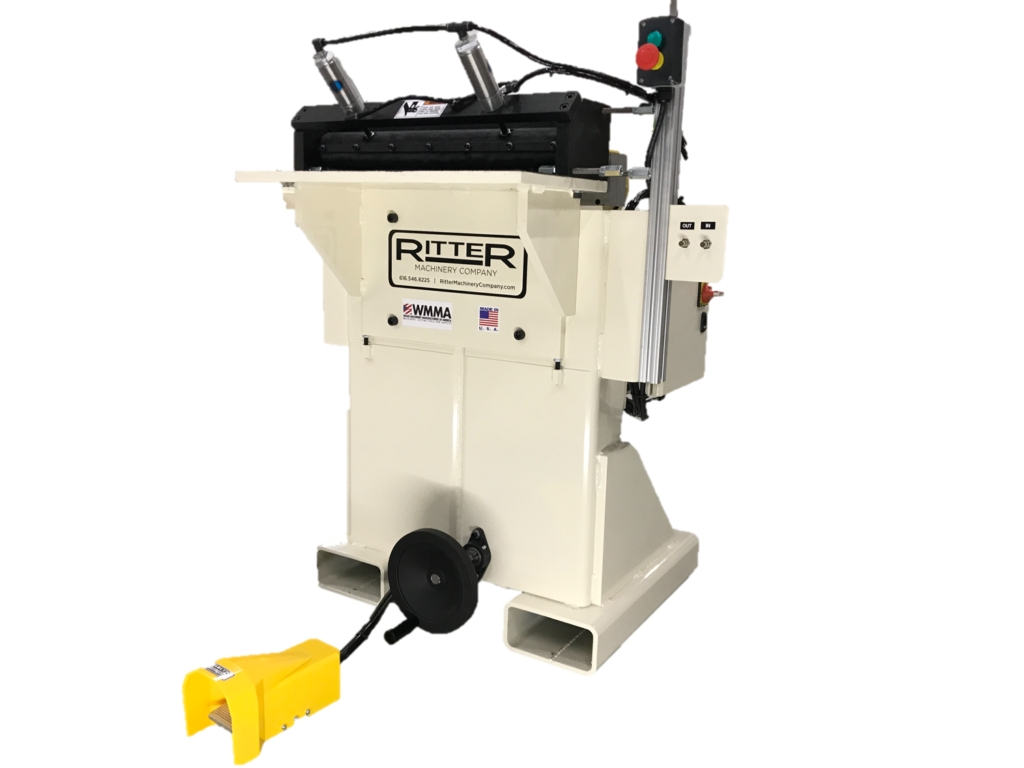

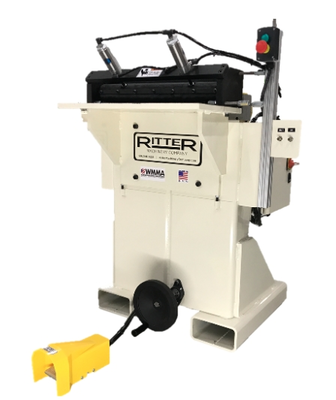

Ritter Model R853 Horizontal/Vertical Drawer Drill
General Specifications:
Foot Actuated Drilling and Clamping Cycle
(13)-Spindle Gear Head
32mm Spindle Centers on Gear Head
(7) Right Hand, (6) Left Hand
10mm Bored Collets
2 HP Spindle Drive Motor, TEFC
0-2" Adjustable Boring Depth Turret
1/2" - 3/4" Thick Drawer Box Sides
14" Maximum Drawer Box Height
12" X 24" Machined Steel Work Table
34" Work Height
Horizontal / Vertical Boring Fence System
Horizontal / Vertical Material Clamp System
Tooling Not Included
Designed and Manufactured in the USA
