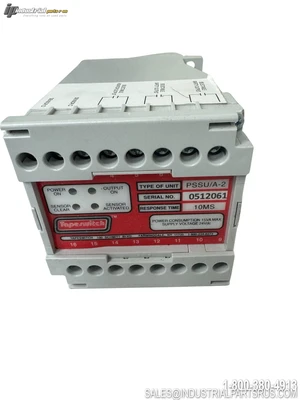

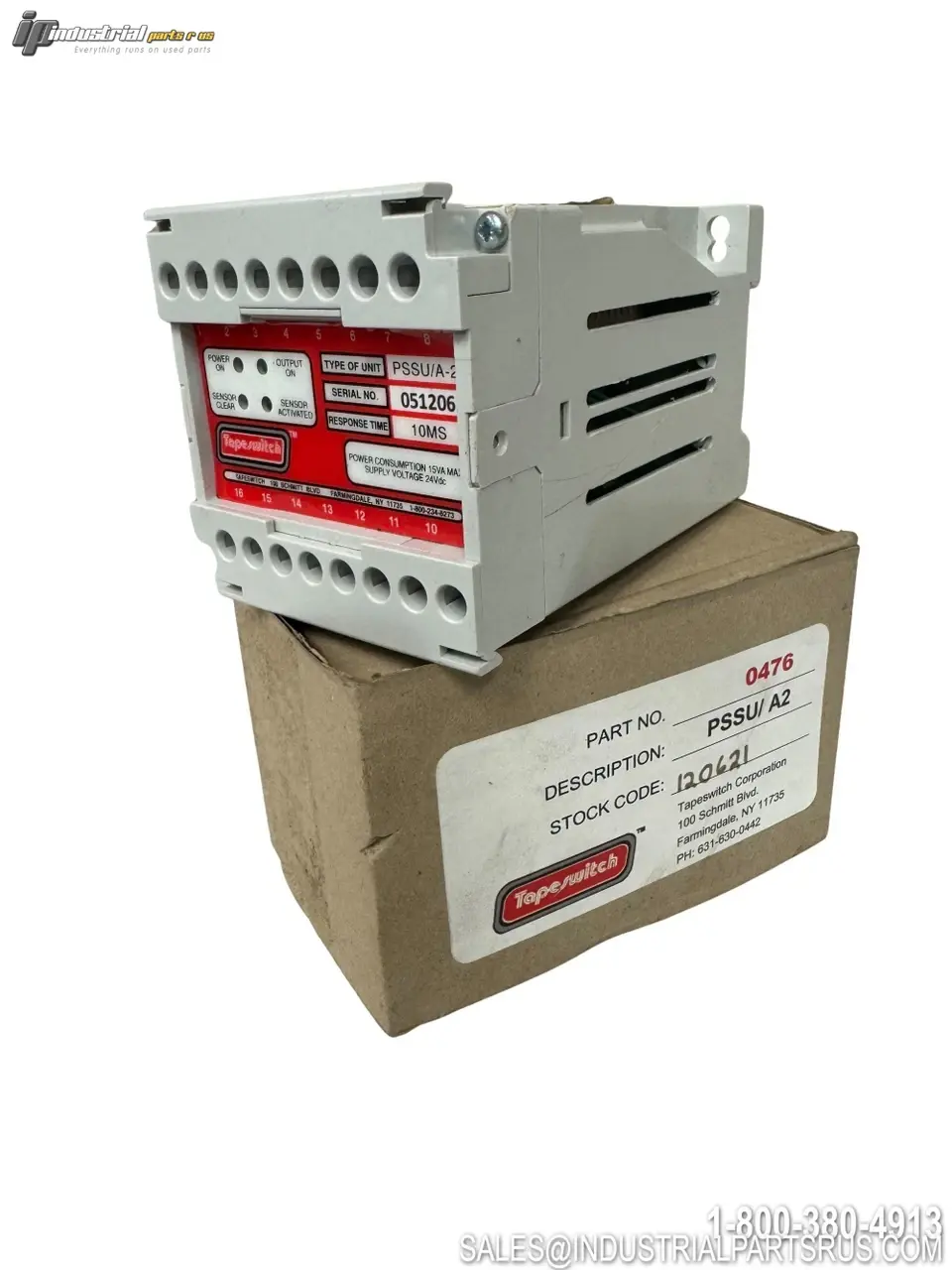

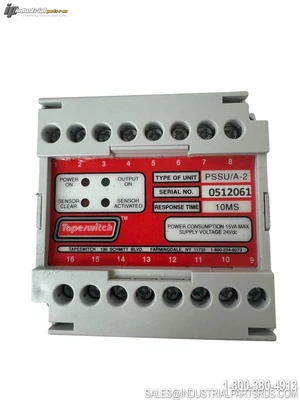

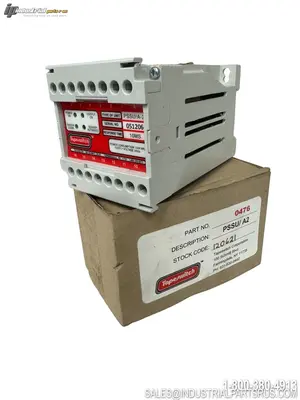

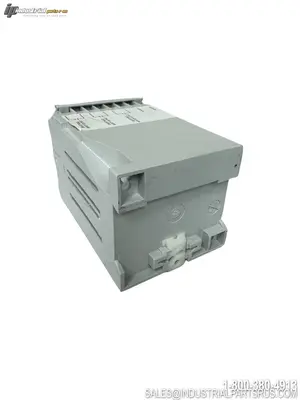

NEW TAPESWITCH PSSU/A2

The Tapeswitch PSSU/A2 is a fail-safe interface safety controller designed for high-risk automation and machine control applications. It operates from a 24 VDC supply and features a DIN rail-mounted enclosure with 16 integral terminals, making it suitable for installation inside existing machine control panels. The unit is self-monitoring with redundant safety output relays rated Control Reliable, exceeding the requirements of Safety Category 3 as defined by EN-954-1 and meeting applicable OSHA, ANSI, and RIA standards for safety interface modules. Compatible sensors include safety mats, sensing edges, sensing bumpers, and ribbon switches.
Specification
Value
Brand
Tapeswitch
Model / Part Number
PSSU/A2
Supply Voltage
24 VDC
Power Consumption
6 VA
Safety Output Type
Force Guided Contact
Safety Output Contacts
2 Form C (NO) or (NC) — Selectable
Safety Output Rating (Resistive)
6.0 A @ 240 VAC & 24 VDC; 0.75 A @ 50 VDC
Safety Output Rating (Inductive)
1.0 A @ 24 VDC; 0.35 A @ 50 VDC
Monitor Output Type
Standard Relay — 1 Form C (NO) or (NC)
Monitor Output Rating
5 A @ 240 VAC
Number of Safety Relay Outputs
2 (Selectable)
Number of Monitor Outputs
1 (Non-Safety, Selectable)
Response Time
10 ms
Switching Frequency
5 Hz
Recommended Fusing
2.0 A (user-supplied)
Reset Type
Auto-Reset
Mounting Type
DIN Rail (35 mm DIN EN 50 022-35)
Enclosure Rating
IP20
Enclosure Dimensions (W x D x H)
2.87" x 2.95" x 4.49" (73 mm x 75 mm x 114 mm)
Number of Terminals
16
Operating Temperature
0°C to 50°C
Safety Category
Exceeds Category 3 per EN-954-1
Compatible Sensors
Safety Mats, Sensing Edges, Sensing Bumpers, Ribbon Switches
Standards Met
OSHA, ANSI, RIA Safety Interface Module Standards
Self-Monitoring
Yes (Control Reliable)
Weight
0.85 lbs
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
