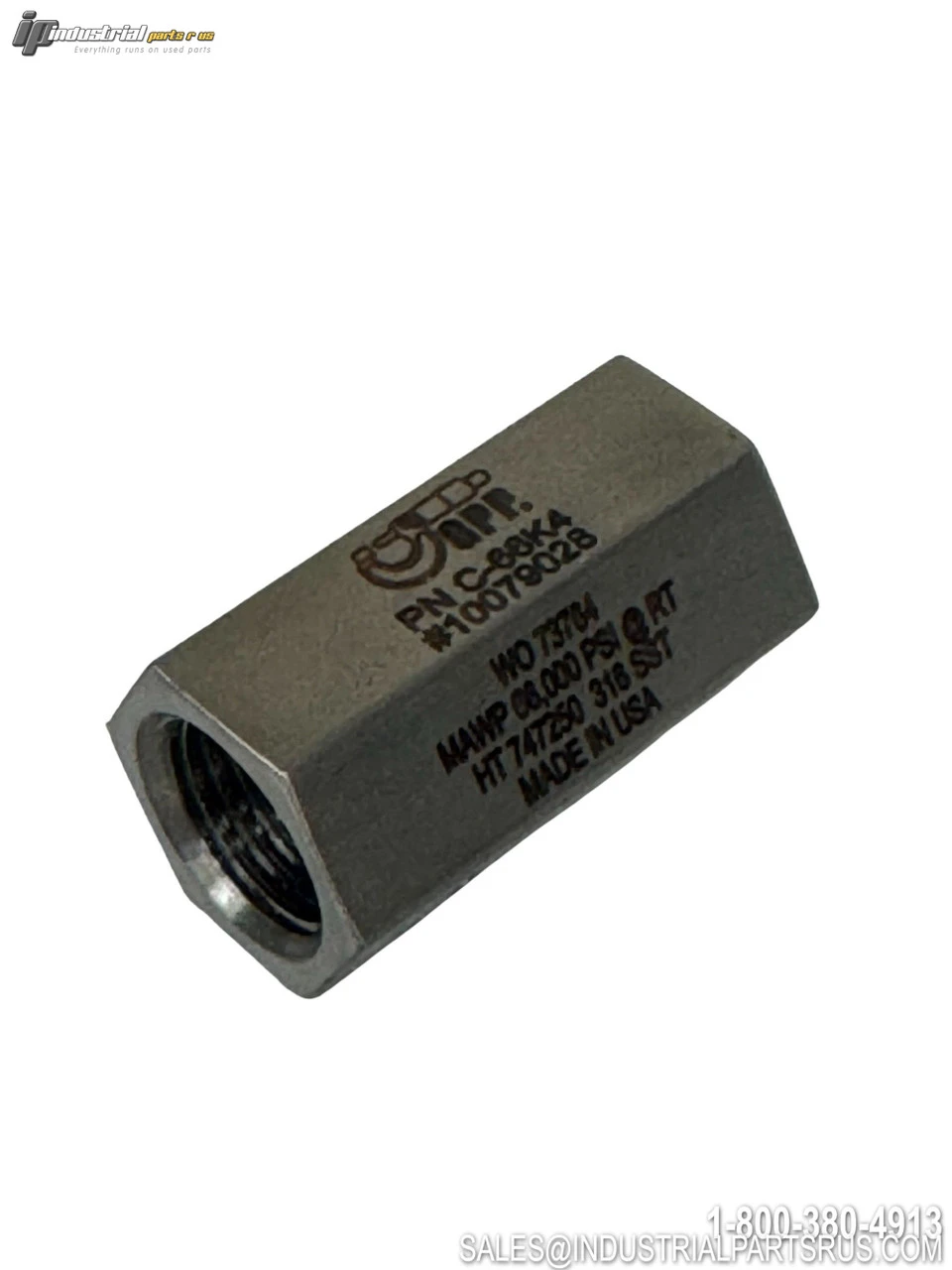

USED GPP 10079028 1/4" STRAIGHT HIGH-PRESSURE COUPLING

The GPP 10079028 is a 1/4" female-to-female high-pressure straight coupling assembly rated for 60,000 PSI (60K) service, designed for use in CNC waterjet cutting systems. This coupling connects sections of 1/4" OD high-pressure tubing and is constructed from 316 stainless steel to withstand the extreme operating pressures of ultra-high-pressure (UHP) waterjet intensifier pump systems. It is a direct replacement for KMT OEM part 10079028, Flow International A-0780-1 / 400011-1, and other equivalent industry part numbers.
Specification
Value
Brand
GPP
Model / Part Number
10079028
Product Type
High-Pressure Straight Coupling Assembly
Tube / Port Size
1/4" OD
Connection Type
Female to Female (Cone & Thread)
Maximum Pressure Rating
60,000 PSI (60K / 4,150 bar)
Material
316 Stainless Steel (SST)
Configuration
Straight (Inline)
Cone Angle (Tube)
59°
Cone Angle (Body)
60°
Thread Direction (Collar)
Left-Hand Thread
Thread Direction (Body)
Right-Hand Thread
Compatible Systems
KMT 60K Waterjet Pumps, Flow Waterjet Systems
OEM Cross-Reference
KMT 10079028 | Flow A-0780-1 / 400011-1
Application
CNC Waterjet Cutting Systems / UHP Intensifier Pump Plumbing
Includes
Coupling Body, Glands (Collars) and Coning Components
We warranty all items for 30 days from date of purchase.
