NEW NORTHTECH NT-DBN26

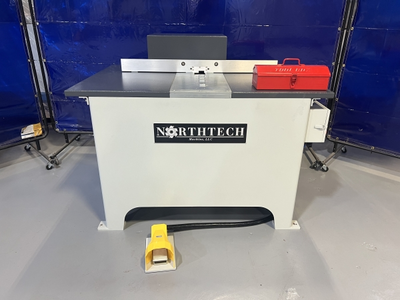

Northtech model NT-DBN26 Drawer Box Notcher
Motor 5HP 3PH 230V or 460V 60HZ
Max notch dimension of 57mm (2-1/4"x 0.5" H with included head
Capable of notching over 200 boxes/hr
Designed to notch the underside of a drawer as well as drill the back for using under mount drawer slides
Cutter diameter: 10"
Drill diameter: 1/4"
Table size: 50"x23"
Passline: 33"
(2) 4" Dust port requiring 436CFM at point of extraction
Recommended compressed air: 90-100PSI

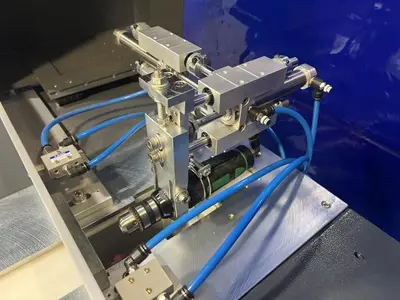

Pneumatic cutter & drill stroke by foot pedal operation
Cutter stroke and drill are adjustable
Insert knife cutterhead with solid carbide inserts for optimum finish results and long tool life
Comes with (57mm) 2-1/4"Cutterhead with inserts and 1/4" (6.3mm) carbide drill bit
Machine dimensions (LxWxH): 48" x 38"x 40"
Machine weight: 650lbs
Operation and parts manual included
Standard Northtech one year parts warranty
All machines are tested stateside prior to shipment providing trouble free start up.
Northtech offers a full line of drawer building machinery, ask your salesman for information on Box Sander, Award Winning Dovetailers and Automatic Gluers

Optional Accessories
35mm Cutterhead
57mm Cutterhead (one included with machine)
