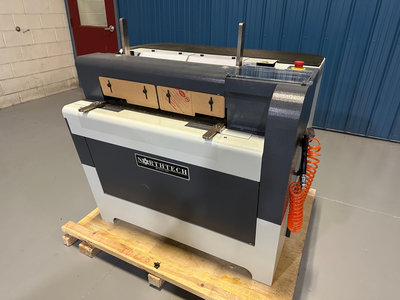

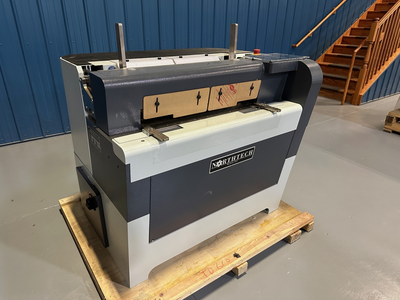

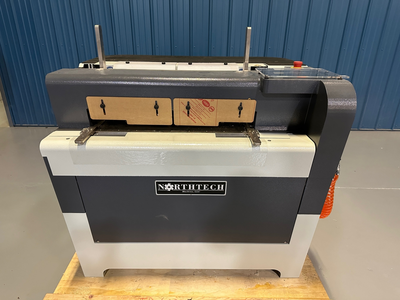

NEW NORTHTECH IDOVETAIL24

Northtech Model iDovetail24
4.2kw (6HP) driven spindle
Programmable spindle controls with a maximum 24,000RPM
Maximum processing width: 610mm (24")
Tenon dimensions: See following profile mode specific details
Workable part dimensions: See following profile mode specific details
Spindle vertical adjustment: 100mm (4") servo positioned

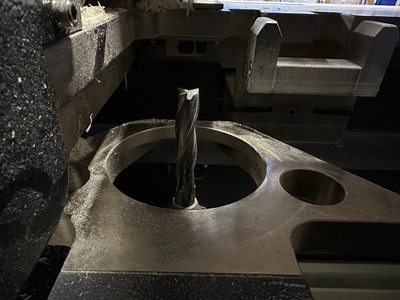

Usable bits: See following detail
Recommend working pneumatics: 90PSI on a 3/8" air line
200 Programmable profile memory
Dust port (2) 4" requiring 436CFM @ point of extraction
195in/min dovetail bit acceleration

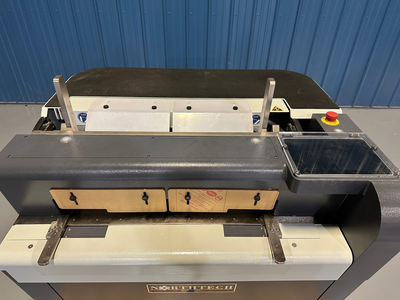

Bit sharpening compensation adjustments via touchscreen interface
Automatic bit recognition

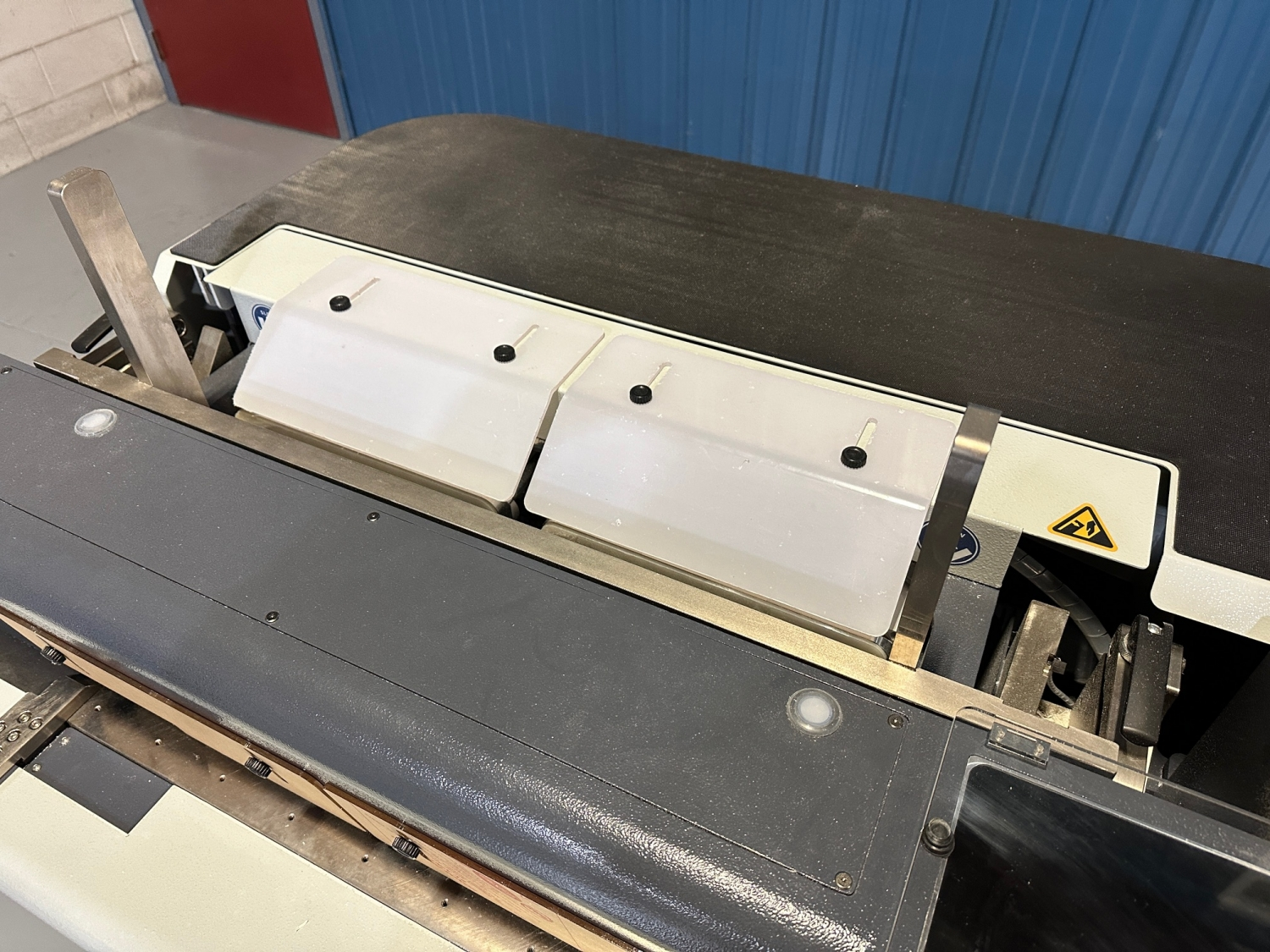

Horizontal & Vertical pneumatic clamping allows individual part release and mitered profiles
Easy to understand error detection and display
