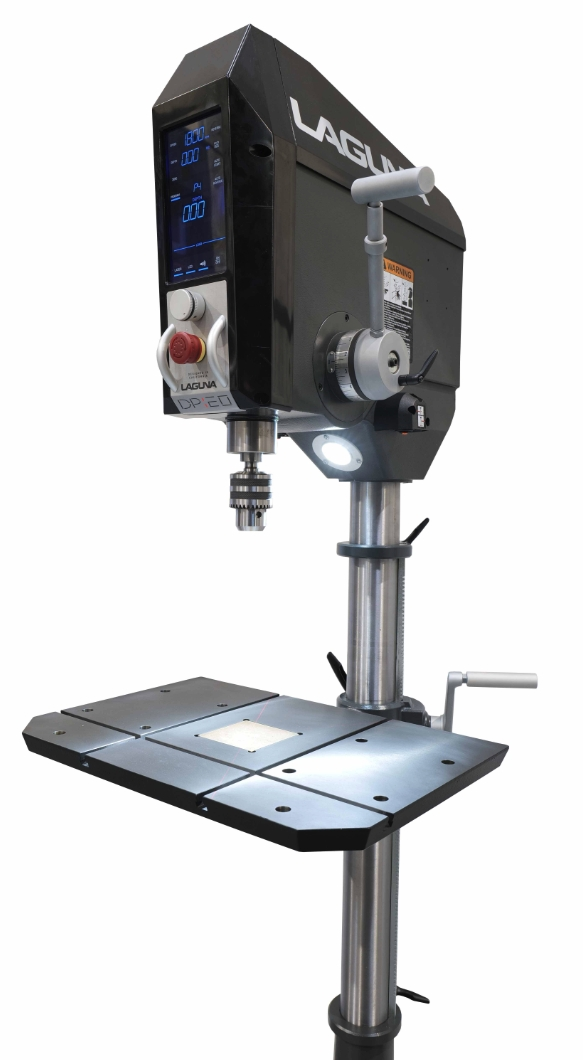

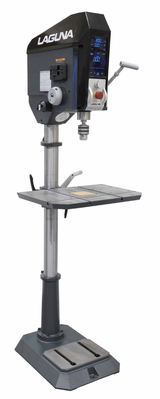

NEW LAGUNA DP:20

Motor Voltage/hp: 115V/1.5HP
Breaker: 15 amp. min.
Power Cord: 72” (1830 mm)
Table, cast iron: 15”x22” (380 mm x 560 mm)
Table Tilt: +/- 90 Degrees
Table Swivel: 360 Degrees
Laser Light: Included
Working Light: LED, 5W
Swing: 20” (510 mm)
Spindle Taper: MT2
Spindle Travel: 6” (152.4 mm)

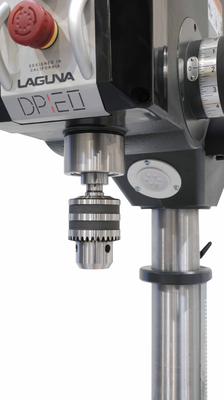

Chuck: 5/56” – 5/8” (2-16 mm)
Quill Diameter: 2.17” (55 mm)
Quill Flange/Collar Diameter: 2.6” (66 mm)
Spindle to Column, max.: 10” (255 mm)
Spindle to Table, max.: 29-5/16” (745 mm)
Spindle to Base: 49.5” (1257 mm)
Spindle Speed Range: 60-3600 RPM (electronic & variable)
Column Diameter: 3.15” (80 mm)
