NEW PILLAR CMJ

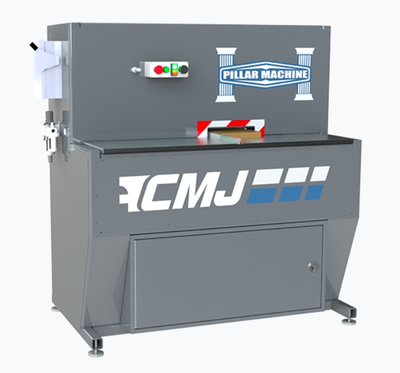

Pillar Model CMJ Coping/Tenoning
Designed for chip free coping or tenoning of either
square or profiled parts without the need for a back-up piece or chip breaker
In an 8-second-cycle it can process either two top/bottom rails or one mid rail that is pre-profiled
Simple to operate
It is a PLC driven machine
2 counter rotating vertical spindles. The first spindle
clears the leading edge of the rail while the other spindle moves in and processes the remainder of the part's width
This version of the CMJ has stacked tooling that allows you to switch between two inside profiles with the flip of a switch
Provides a clean, tear-out free, end coped/tenoned part every time
Standard Features
8" part width capacity
2 each stacked tool per spindle
Counter rotating spindles
Scissor lock clamp
Auto Feed Carriage
5 HP Motor
5/8" max cut depth
5" max cutter head diameter
3" minimum part length
10 second cycle
Material thickness: 5/8" to 1"
Two 4" dust ports
700 CFM required
Options
12" part width capacity
Tigerstop integration
Z axis control
Increased thickness for passage doors
