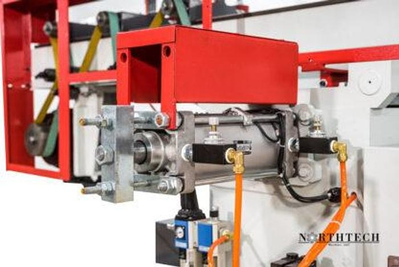

NEW NORTHTECH NT-HBSS240

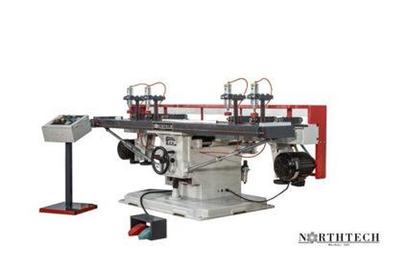

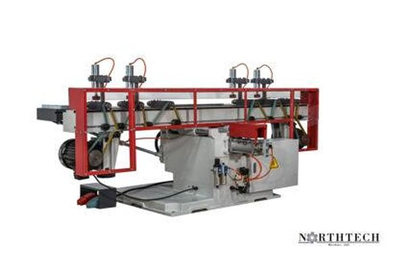

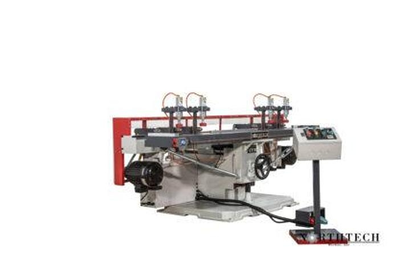

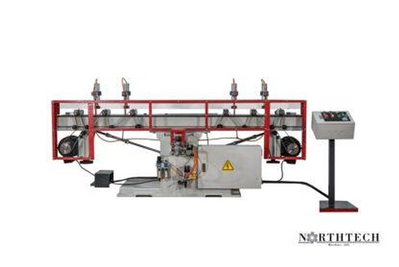

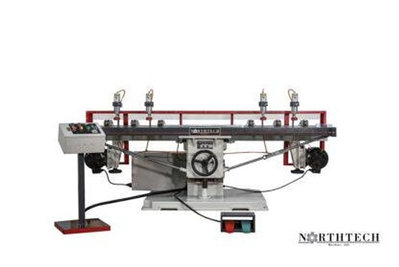

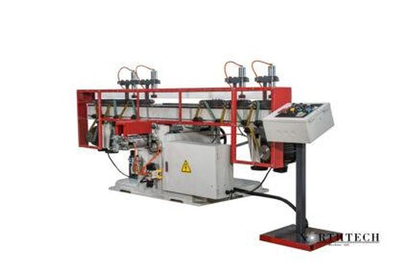

Northtech Model NT-HBSS240 Horizontal Boring Machine.
The NT-HBSS240 is a Heavy Duty Horizontal Boring Machine. The multiple boring head configuration is adjustable for varying hole layouts for customer flexibility. Rugged cast iron bas for a solid footing and decades of performance. Pneumatic hold downs and drill cycles. Ideal for panel, softwood, hardwood, and plastic products.
Machine HP: 5HP
Electrical: 230V/460V 3PH 60Hz
Control Voltage: 220V
Adjustable Spindle Arrangement
Spindle Diameter: 1/2" Chuck
Spindle RPM: 4200 RPM
Minimum Working Length: 3"
Minimum Working Width:2"
Maximum Working Width: 44-1/2"
Minimum Working Thickness: 1/4"
Maximum Working Thickness: 6"
Number Of Heads: 6 Heads
Horizontal Travel/Stroke: 5-1/2"

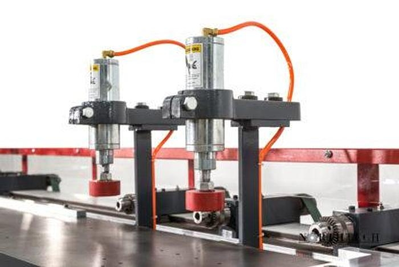

3 Pneumatic Clamp Hold-Downs
Worktable Dimensions: 48-1/4"x11-3/4"
Available in 230V 3PH and 460V 3 PH
