USED OLIVER 2071

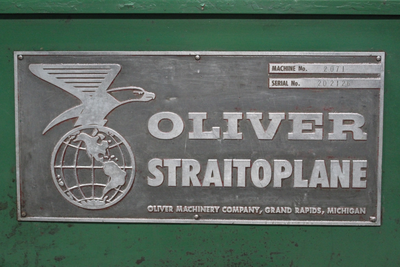

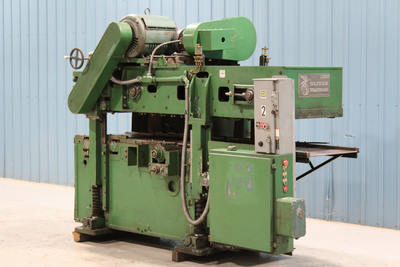

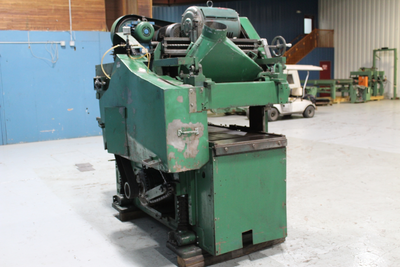

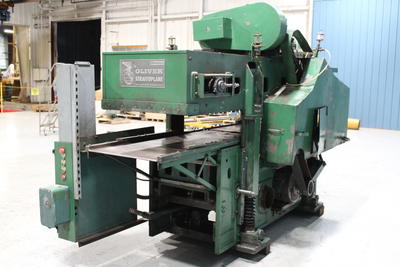

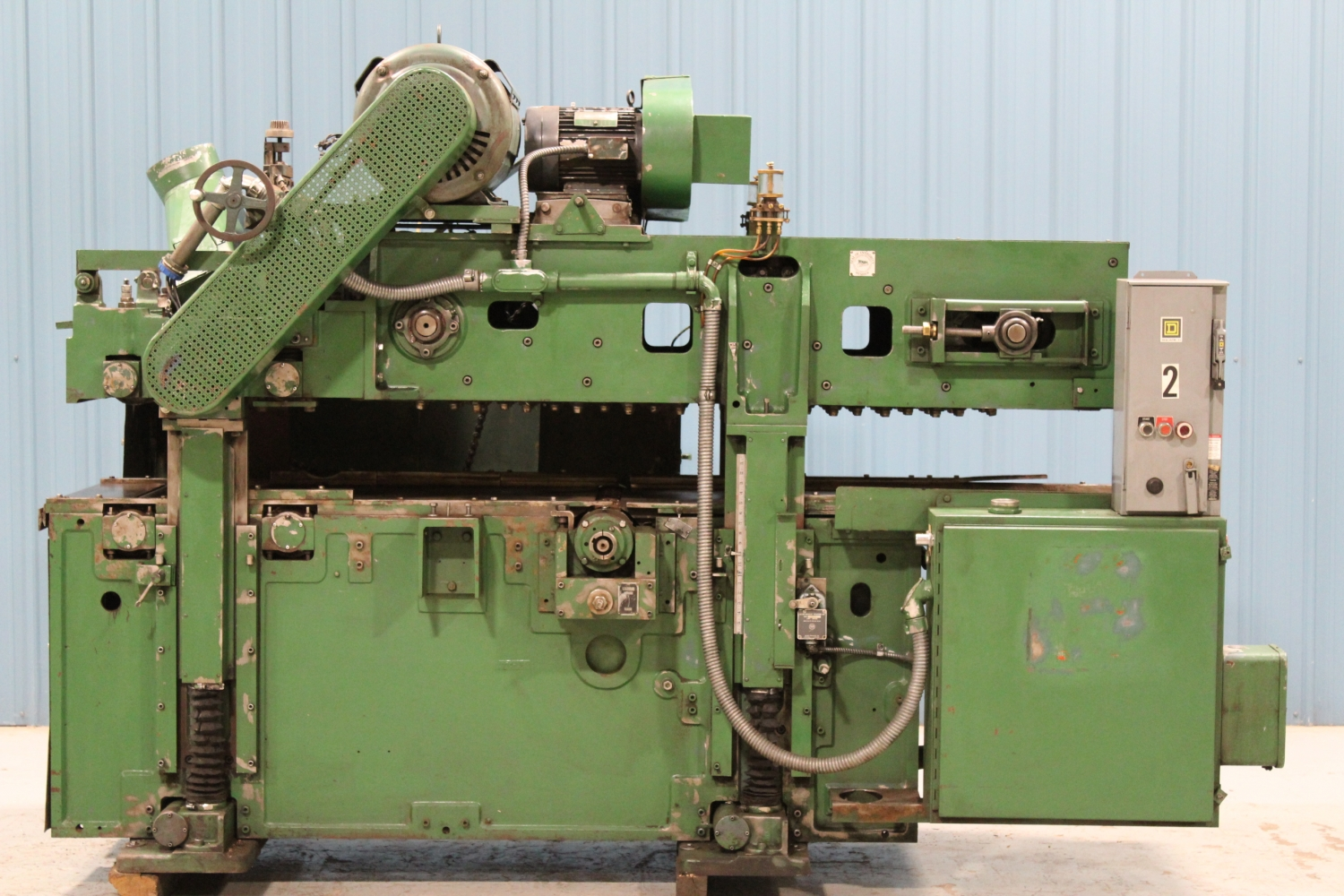

Oliver Model 2071 Straitoplane 24" Double Sided Surface Planer
The Straitoplane will Finish Moderately Warped or Twisted Boards to Uniform Thickness & Flatness
Capacity: 24" Wide x 1/2" to 8" Thick
Shortest Stock: 12" Butted, 16" Single

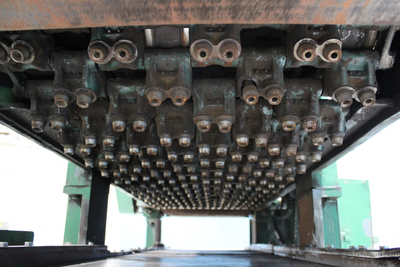

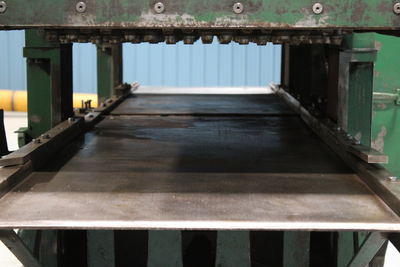

Stock is fed over the lower cutterhead by individually spring-loaded feed toes mounted on cast-iron holders

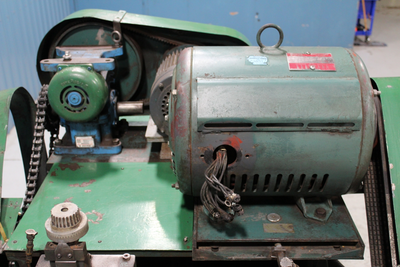

Bottom Head Motor: 40 HP, 230/460v, 3ph
Top Cutterhead Motor: 50 HP, 230/460v, 3ph

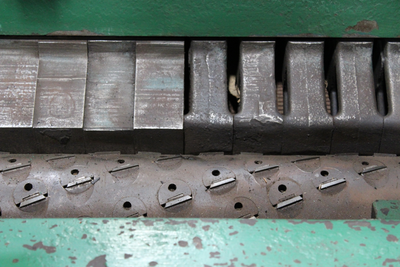

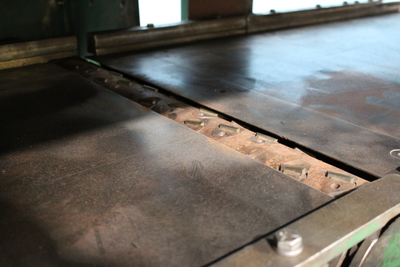

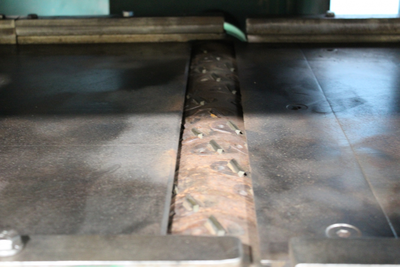

"ITCH" Carbide Insert Spiral Planer Heads

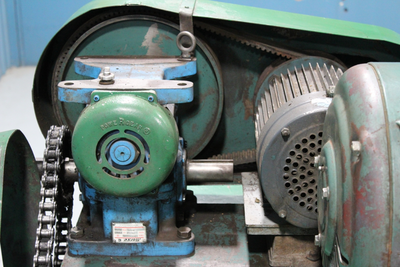

Feed Motor: 5 HP
Variable Speed Feed from 30 - 90 FPM
Thickness Adjustment Motor: 2 HP

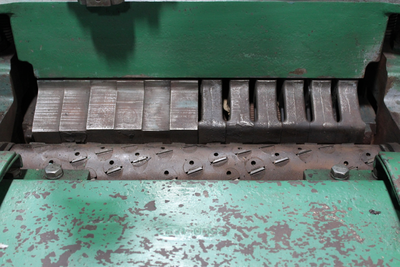

Sectional Chipbreaker
Push-Button Controls for Cutterheads, Feed, and Thickness Adjustment
Serial #: 207597
Current Voltage: 480v
