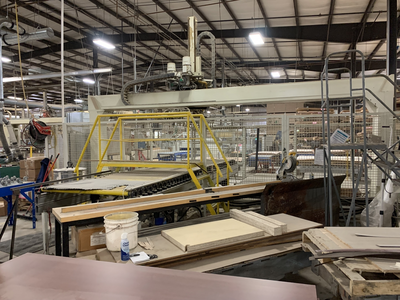

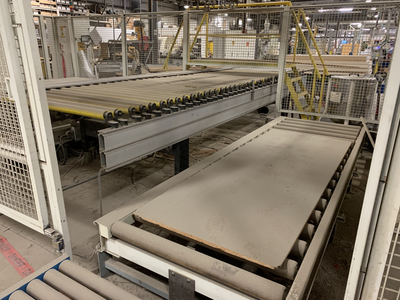

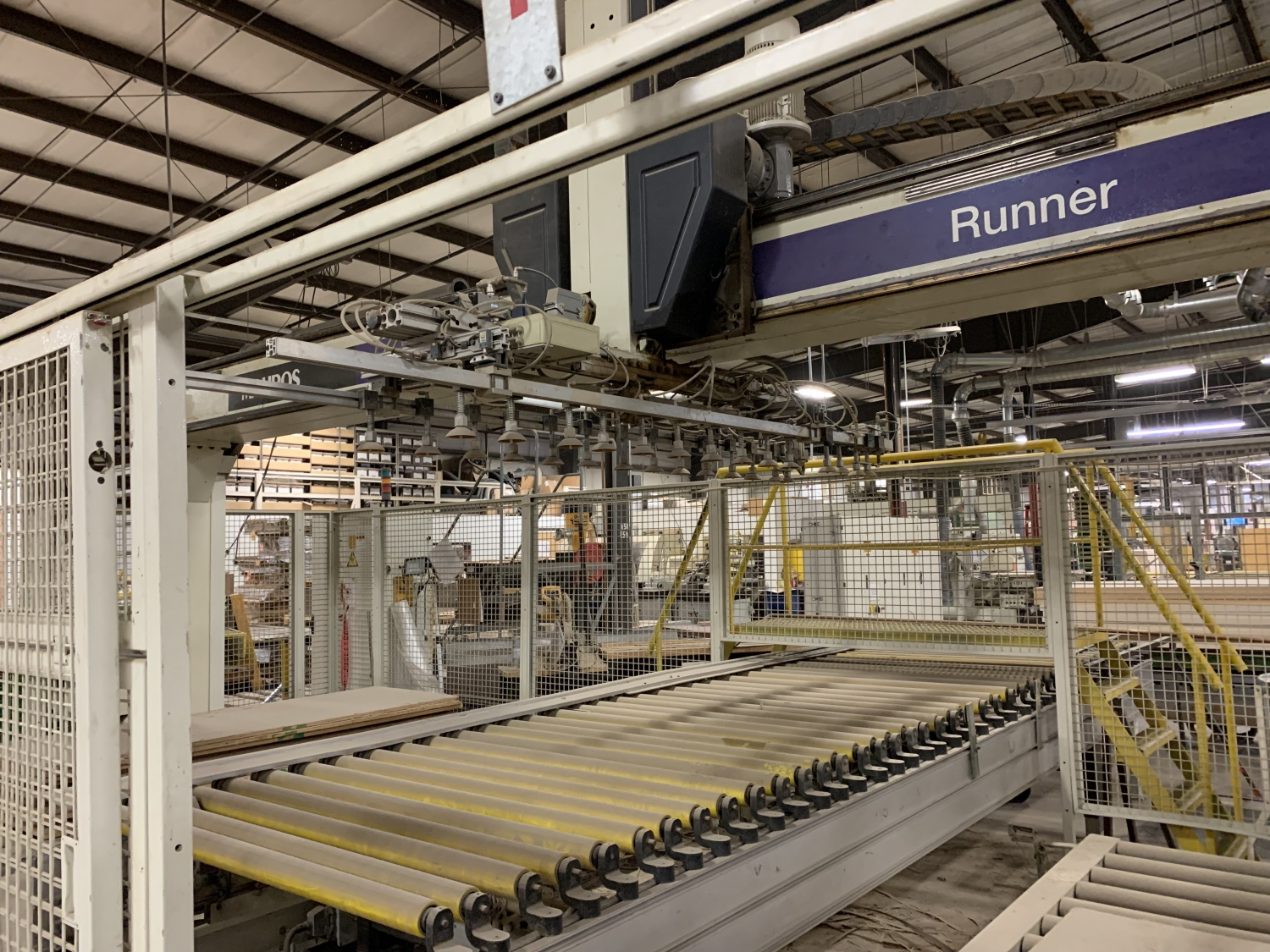

Mahros Vacuum Loader/Stacker for Panels
Double Row Machine
Maximum Panel Weight Per Cycle 100 kg (220 lbs)
Speed - 10 Cycles/min with 50 kg panel and Max Width of 600mm or 9 Cycles/min. with 100 kg panel and Max Width of 1300 mm
Panel Dimensions
- Min Length 280 mm (11")
- Max. Length 3200 mm (126")
- Min. Width 240 mm (9.5")
- Max. Width 1300 mm (51")
- Min. Thickness 10 mm (0.40")
- Max. Thickness 60 mm (2.4")
Equipped with 32 Vacuum Cups
