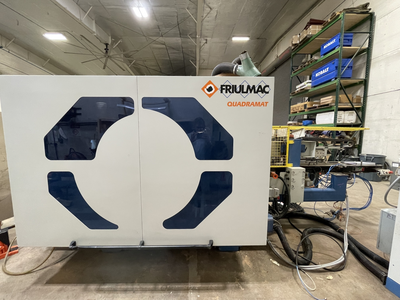

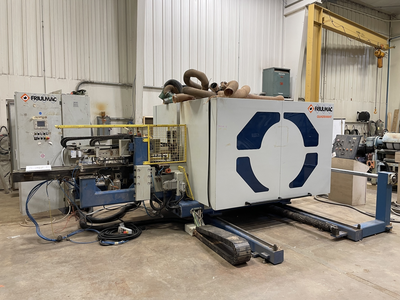

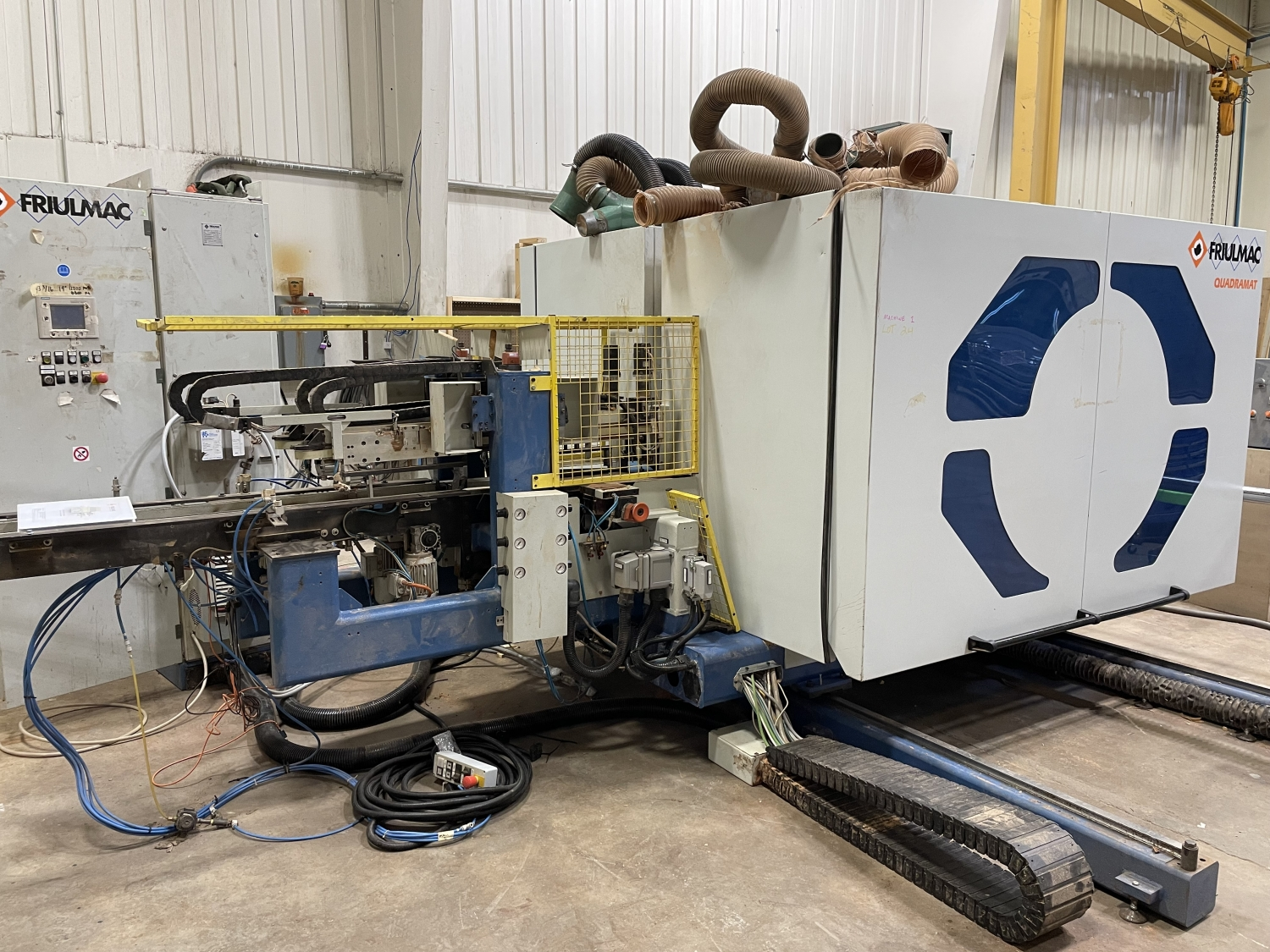

USED FRIULMAC QUADRAMAT

Late-Model, Compact Double-End Tenoner!

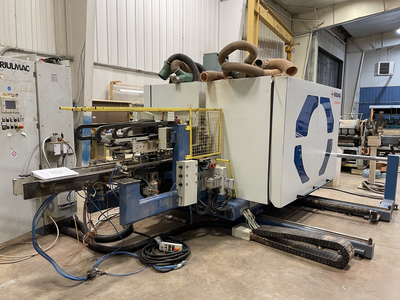

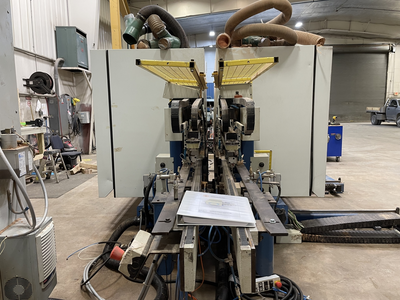

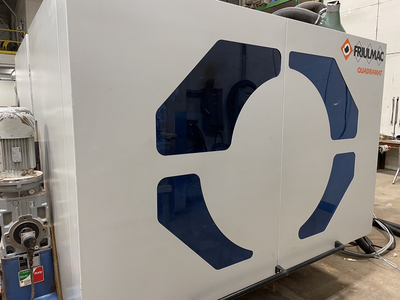

Friulmac Model Quadramat Double-End Tenoner
Material Length: 206mm - 1,450mm (8.09" - 57"
Material Width: 15.9mm - 500mm (0.63" - 19.6"
Material Thickness: 15.9mm - 50mm (0.63" - 1.96")
Feed chain 1-1/2" wide with rubberized pads

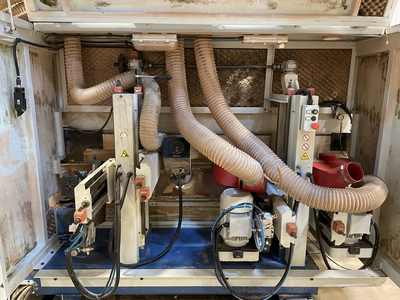

Station #1: Left & Right Scoring
Scoring Blade Diameter: 150mm, 30mm Bore

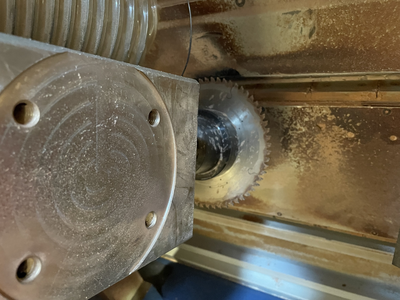

Station #2: Left & Right Tilting Hogger/Trim Saws
Hogging Unit Max. Diameter: 200mm, 40mm Bore

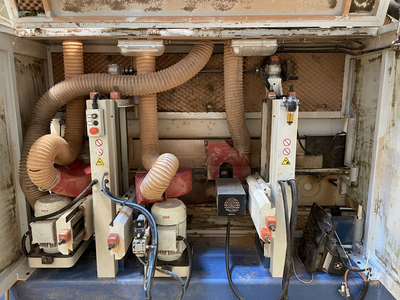

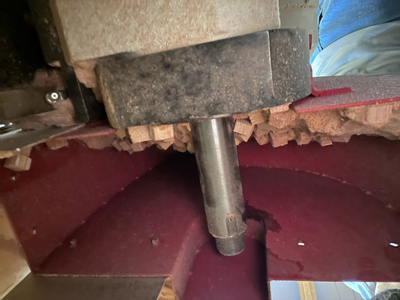

Station #3: Left & Right Jump Cope/Profiling

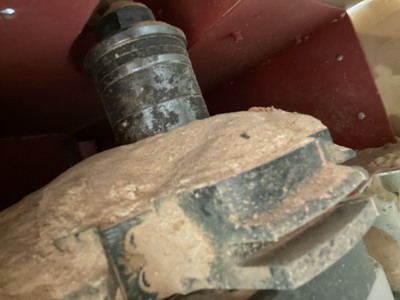

Station #4: Left & Right Cope/Profiling

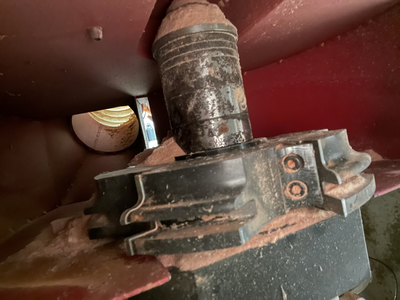

Cope Head Max. Diameters: 250mm, 40mm Bore
Variable Speed Feed from 6 - 28 m/min (26 - 92 FPM)
Stand-Alone Electrical Cabinet w/ Siemens Simatic Touch-Screen Control
Manual Hand-Cranks w/ Mechanical Counters for Positioning of Working Units

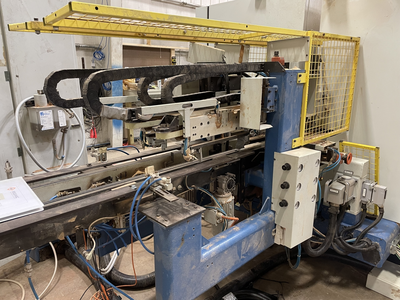

Includes Infeed System for Feeding Batches of Small Parts (Can be Removed Depending on Application)

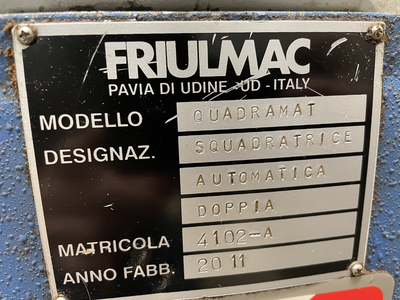

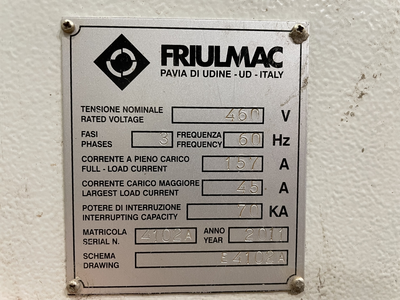

Year: 2011
Serial #: 4102-A
157 FLA @ 460v, 3ph
