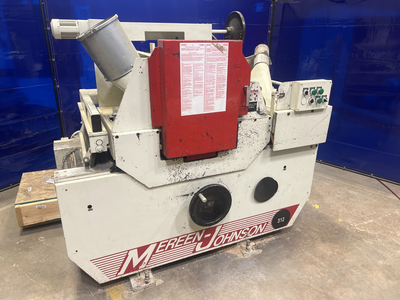

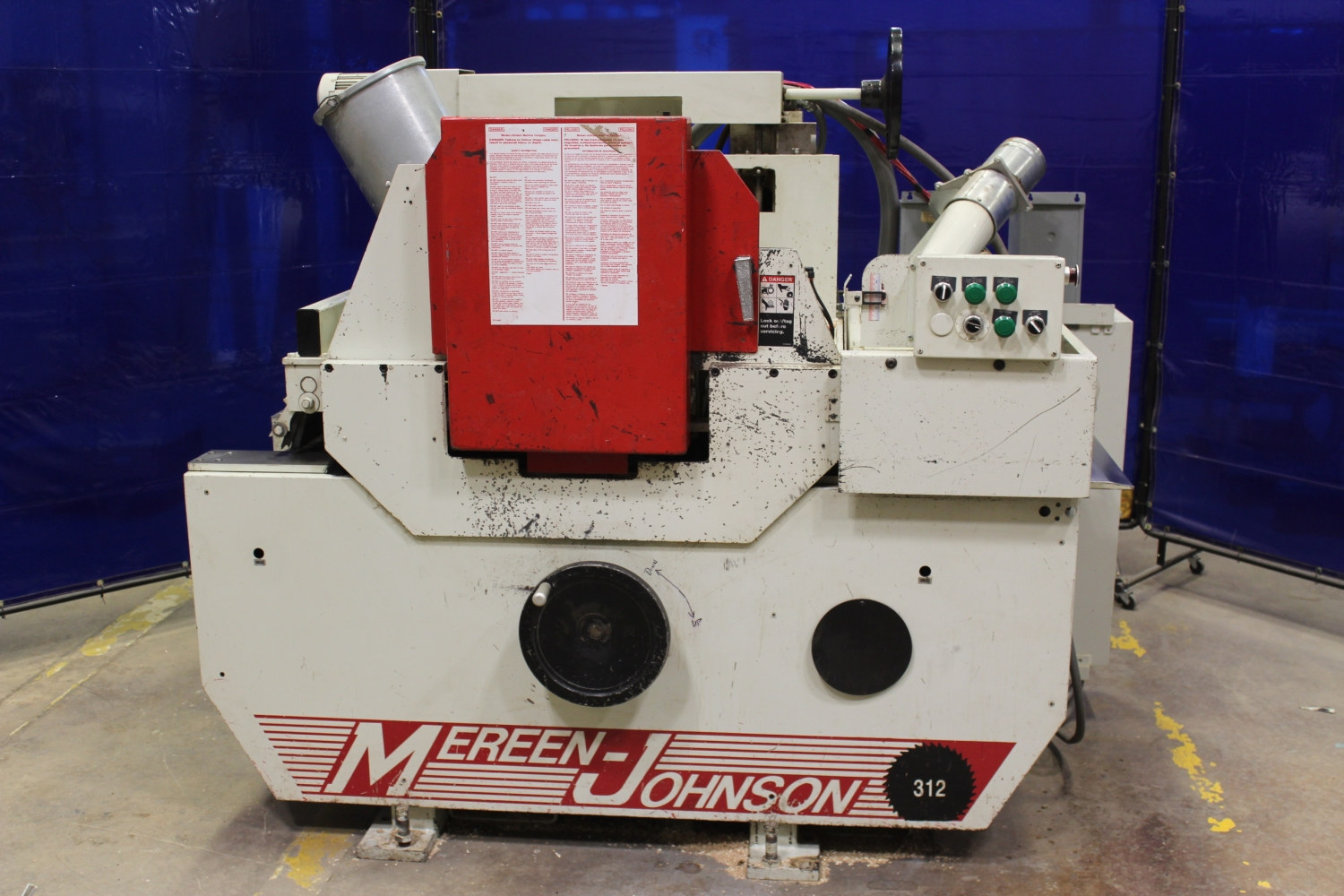

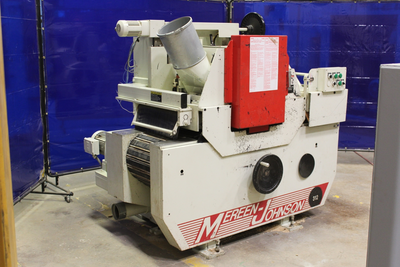

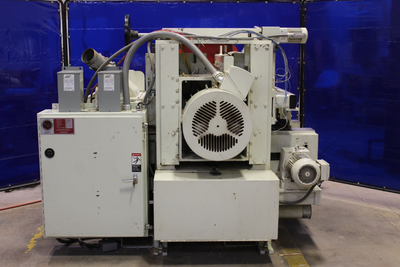

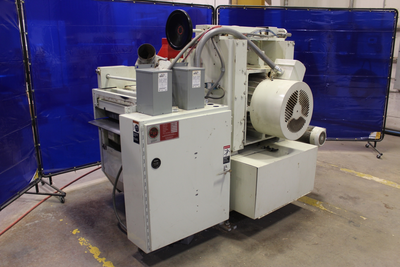

USED MEREEN-JOHNSON 312-DC

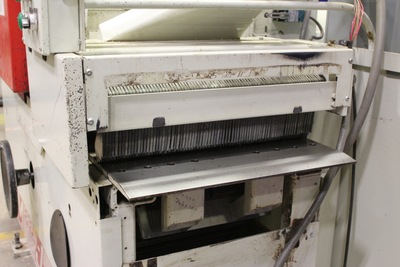

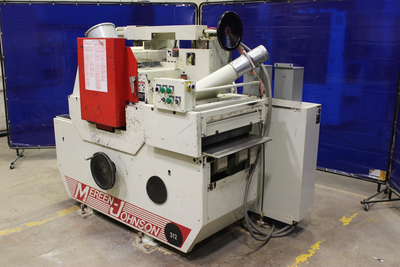

Mereen Johnson Model 312-DC Fixed-Arbor Gang Rip Saw with Four TwistLock Collars

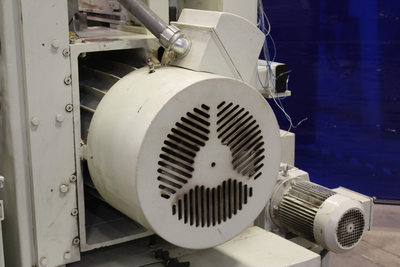

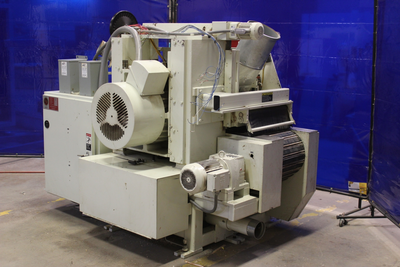

Arbor Motor: 50HP
Arbor Speed: 3,600 RPM

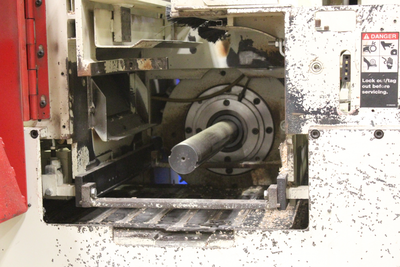

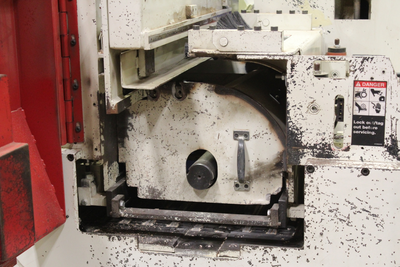

Arbor Size: 2-9/16" with Two 1/2" Keyways
Arbor Length: 12"
Max Board Width: 12"
Max Board Thickness: 3"
30" Minimum Length Glue Joint Accuracy
22" Minimum Length For Bust Up Only
6" Throat
Feed Drive: 3HP TEFC Heavy Duty Feed Drive Assembly with Variable Frequency Drive, 30'-235' per Minute

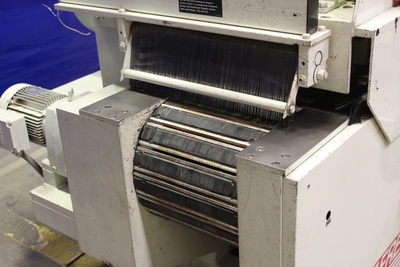

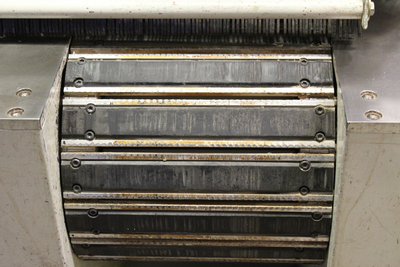

Feed Bed: DOUBLE-VEE Feed Chain, Contoured Hardened Dip Cams, Extruded Structural Aluminum Feed Bed Slats with Replaceable Steel Backed Rubber Insert Strips
Hold-Downs:
Four 3" Pneumatic Overhead Hold-down Rolls
Manual Height Adjustment for Hold-Down Rolls and Bed Plate
Year: 2008

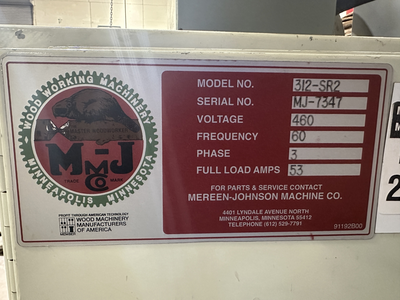

Serial #: MJ-7347
