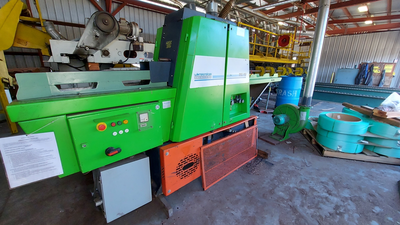

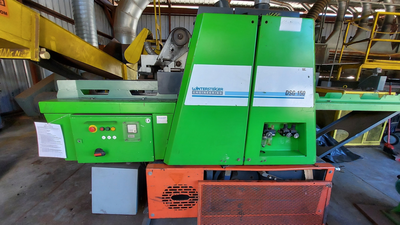

Wintersteiger DSG 150/201 Eco Thin Cutting Frame Saw

Wintersteiger DSG 150/201 Eco Thin Cutting Frame Saw
Side and center guides are equipped to saw two blocks simultaneously
Feed speed 1-5 FPM 450 Strokes / min
Cutting Height & Width. Cutting width (side guide) 60 mm (2.36")150 mm (5.9") Center guide 2 channels max, 72.5 mm (2.85) using 7.5 mm guide or with (5) channels max 24.5 mm (.965") using variable block. Minimum length 300 mm (11.81") lock length.
Cutting Accuracy +/- .02 mm
Air Jet module cleans the lamellas and saw blades during the sawing process with constant air jets reducing heat from friction.
Main Motor: 15HP
Additional Parts
Set-up Frame
Extra Saw Frame
9 Complete Set of Paired blades, Different thickness for thin Veneer
Extra infeed rolls and Hardware
