Automated Lumber Handling Tilt Hoist and Material Handling for Planer or Rip Line
Overview
Specifications

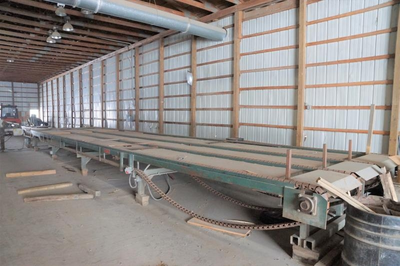

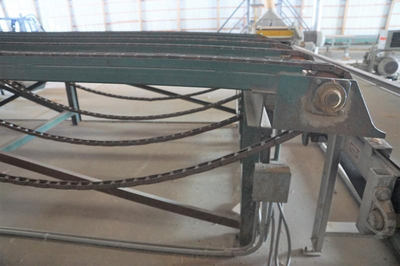

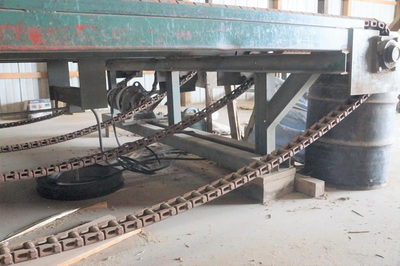

LH Three Strand Live Chain Infeed Package Deck
131" Wide x 25 ft Long X 53-1/2" High

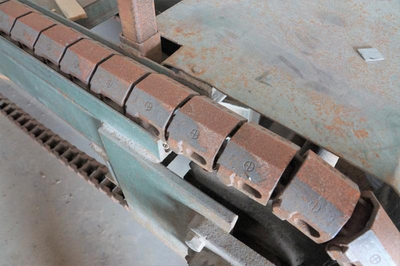

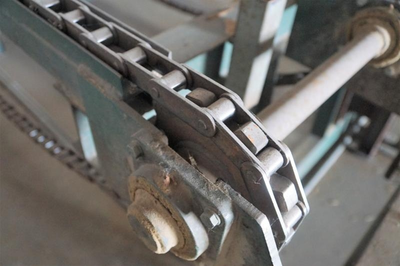

Three(3) 2-1/4" Wide Flat Top Chain Strands
Chain Spacing 60"
Drive Motor 15 HP

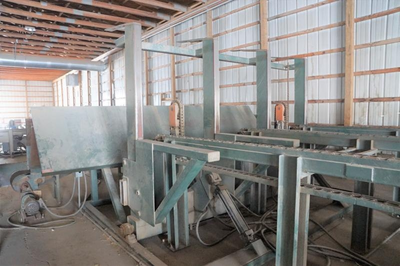

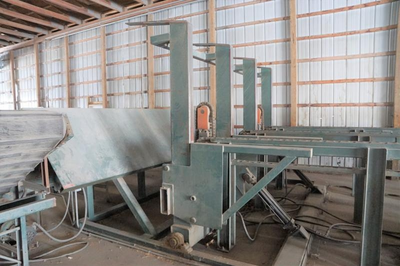

ALH Lumber Break Down Tilt Hoist
151" Wide x 103" High
Tilt Hoist Arms are 5" Wide x 48" Long
Two (2) Hydraulic Cylinder to Lift Pack and Two(2) to Tilt Pack

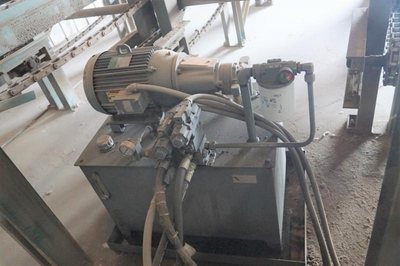

Hydraulic Pump Motor 20 HP

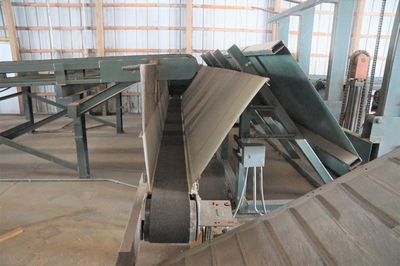

Stick Removal Conveyor
11" Belt with 2HP Motor

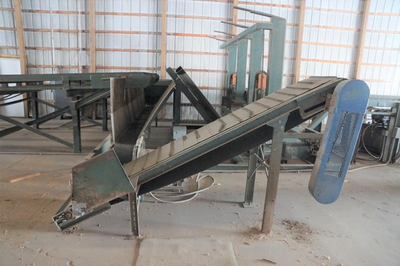

Incline Sticker Unloading Conveyor Table 2 HP

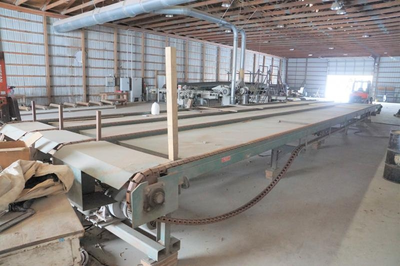

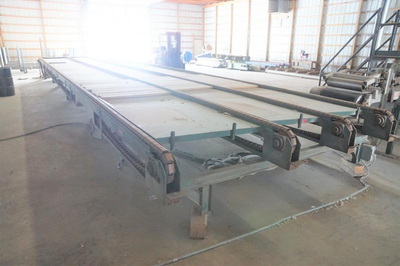

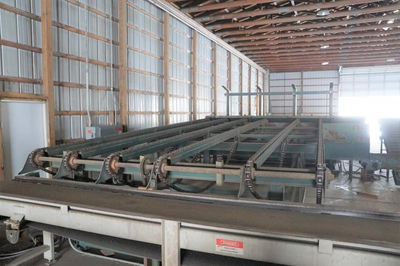

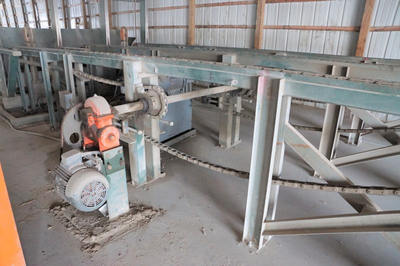

Boards then feed onto an ALH Six Strand Chain Deck - 11' Wide x 22' Long with 5 HP Motor
2-1/4" Wide Flat Table Deck Chains
Chain Spacing (left to right) 24"/36"/24"/24"/21"

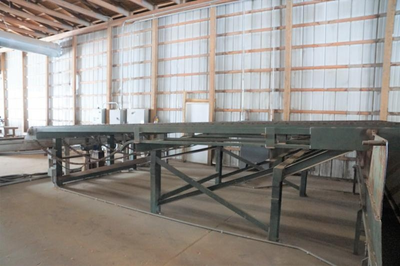

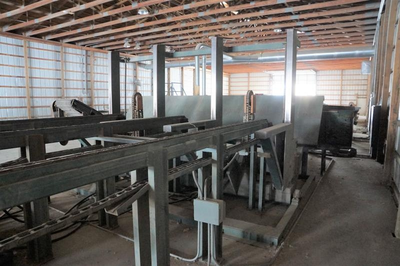

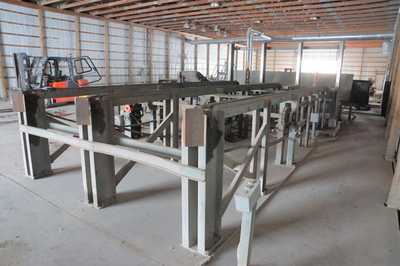

After Planer or Rip Saw (not Included) ALH Four Strand Roof Top Chain Deck
For Sorting 10'-6" wide x 47' long x 33" High
Chains are 2-3/4" wide steel roof top, Spacing (left to right) 48"/36"/36"
Steel Plates Decking Between Chains

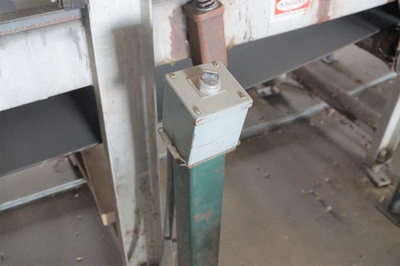

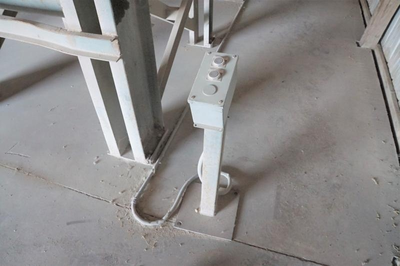

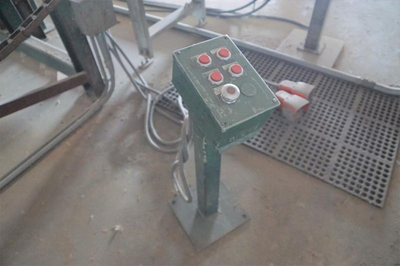

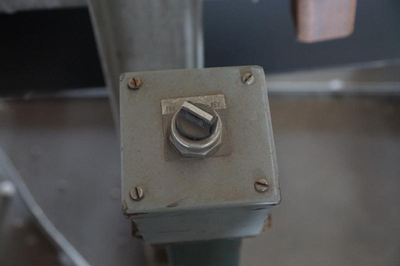

Freestanding Infeed and Outfeed Operator Control Stations
