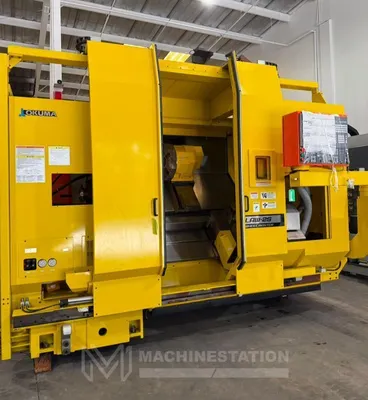

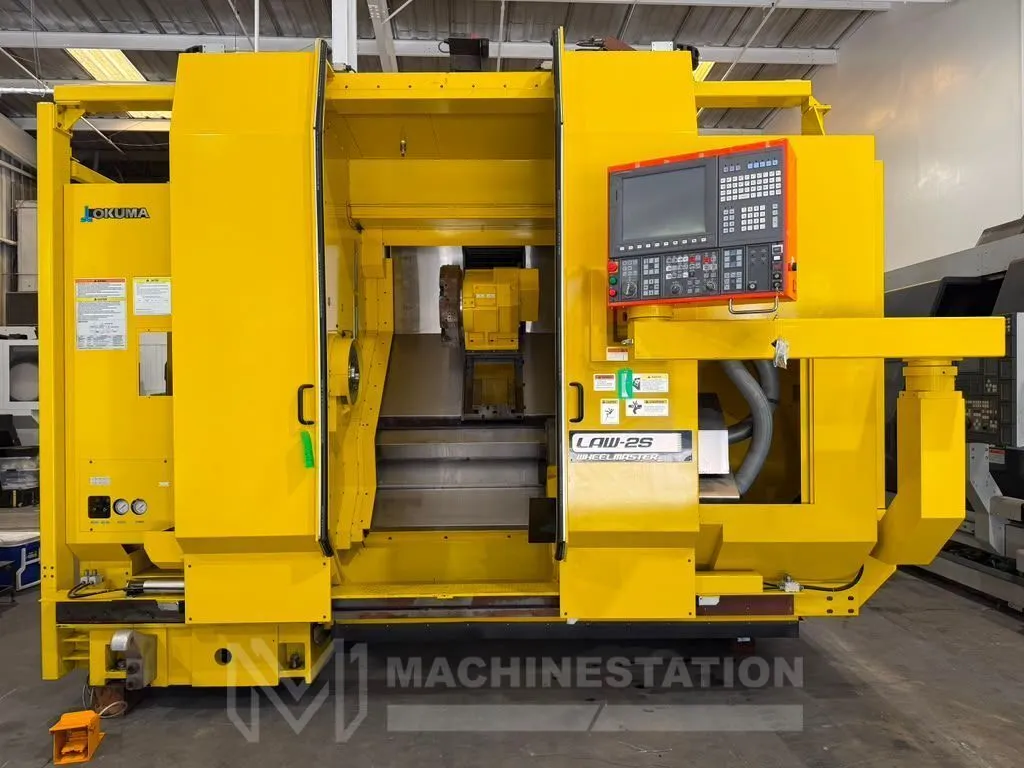

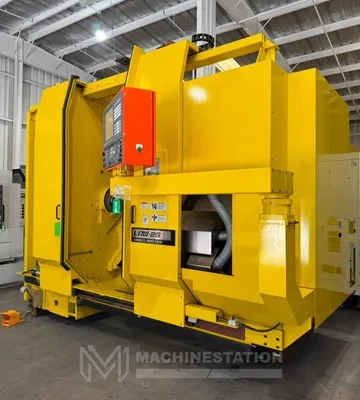

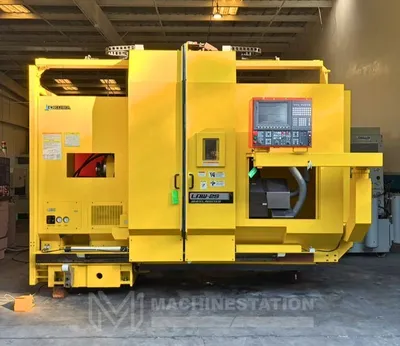

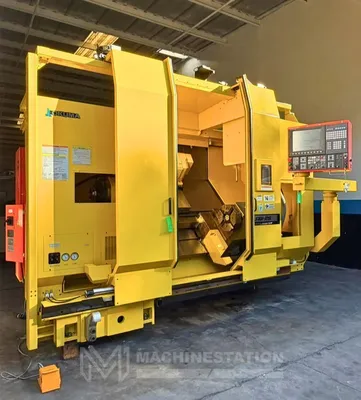

USED 2023 OKUMA LAW-2S

Disclaimer

All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

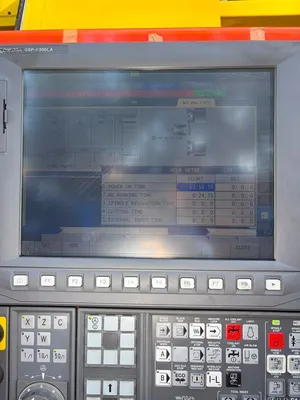

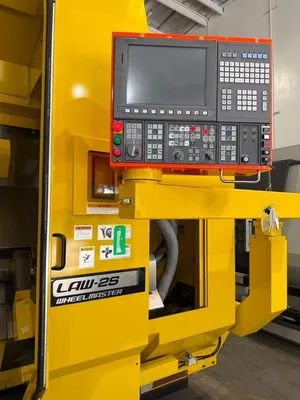

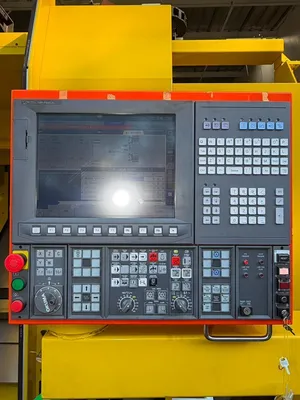

Okuma OSP-P300LA CNC Control
Simultaneous 4-Axis Turning Capability

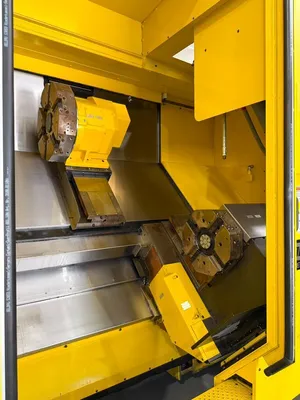

Dual Turret Configuration

Capacity:
Maximum Turning Diameter – Upper Turret: 24.80"
Maximum Wheel Size: 20"
Swing Over Bed: 31.10"
Swing Over Saddle: 20.87"

Travels:
X1-Axis / Cross Slide Travel: 14.96"
Z1-Axis / Saddle Travel: 34.06"
X2-Axis / Cross Slide Travel: 9.84"
Z2-Axis / Saddle Travel: 35.35"
Rapid Traverse Z-Axis: 787 IPM
Rapid Traverse X-Axis: 591 IPM

Spindle:
Spindle Speed Range: 200 – 3,000 RPM
Spindle Nose: A2-8
Spindle Bore Diameter: 2.09"
Spindle Motor: 75 HP / 60 HP (20-Minute / Continuous)

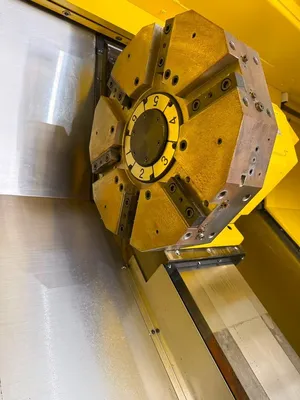

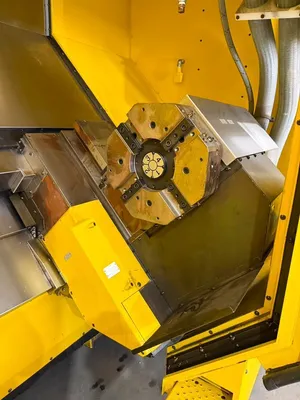

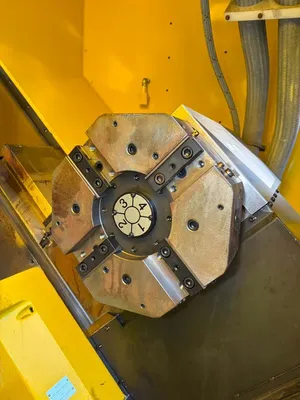

Upper Turret:
Turret Type: V6
Number of Tool Stations: 6

Lower Turret:
Turret Type: V4
Number of Tool Stations: 4

General

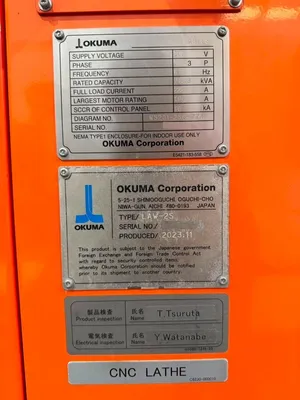

Power Supply: 200 V / 3-Phase / 50 Hz
Rated Capacity: 76.9 kVA
Machine Dimensions (W × D × H): 195.79" × 101.57" × 112.20" Approx.
Machine Weight: 25,300 lbs Approx.
