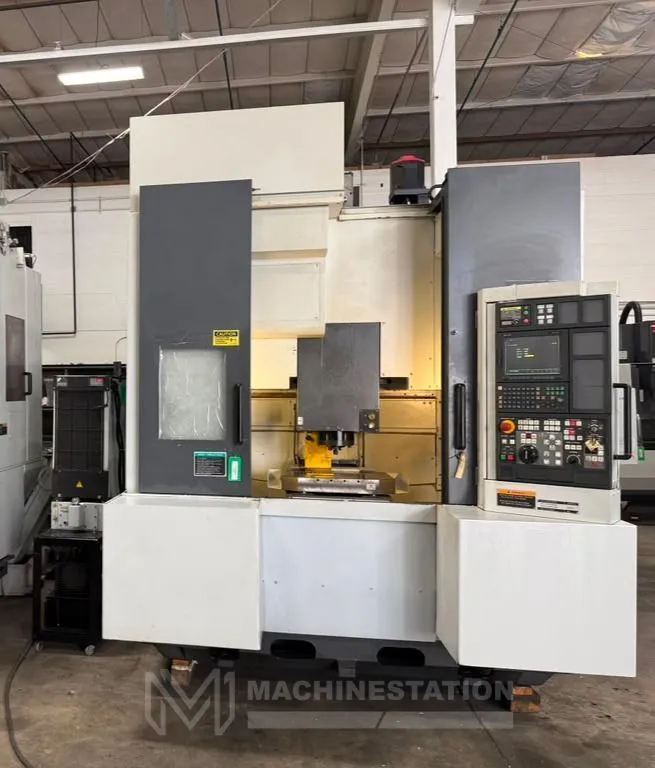

USED 2004 MORI SEIKI NV4000 DCG

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

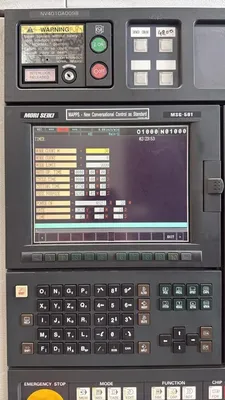

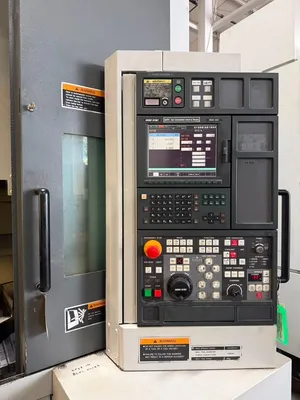

Mori Seiki MSG-501 (Fanuc) CNC Control
DCG (Driven at the Center of Gravity) Technology
Automatic Lubrication Unit
Rigid Tapping

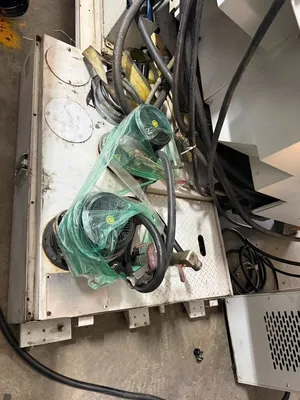

Coolant Tank

Travels:
X-Axis Travel: 23.6″
Y-Axis Travel: 15.7″
Z-Axis Travel: 15.7″
Spindle Nose to Pallet (Min.- Max.): 5.9" – 21.7"
Rapid Traverse (X/Y/Z): 1653 IPM
Cutting Feedrate: 1653 IPM

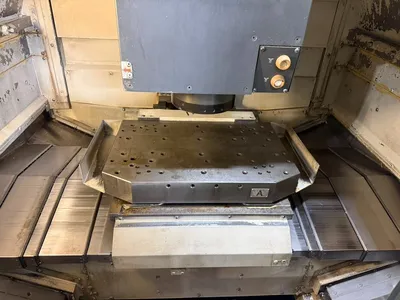

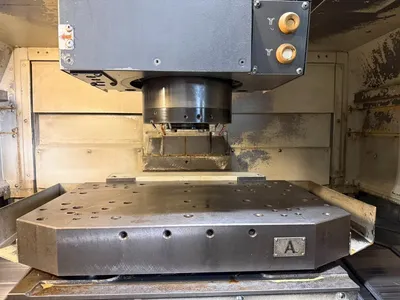

Pallet:
Pallet Size: 23.6" x 15.7"
Maximum Pallet Load: 550 lbs.
Pallet Change Time: 13 Sec.

Spindle:
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Motor Power: 25 HP

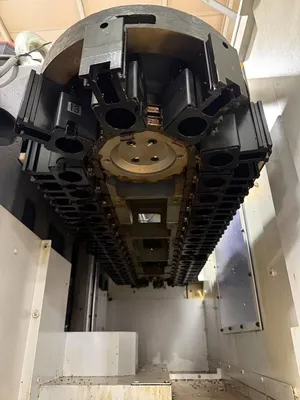

Automatic Tool Changer:
Tool Capacity: 30 Tools
Maximum Tool Diameter: 3.1" / 5.0"
Maximum Tool Length: 11.8"
Maximum Tool Weight: 17.6 lbs

General:

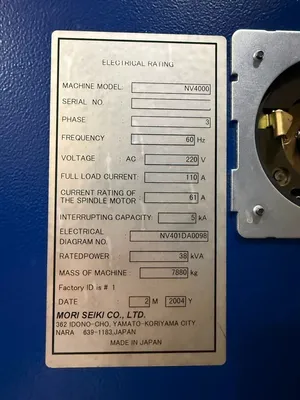

Power: AC 220V / 3-Phase / 60 Hz / 38 kVA
Overall Dimensions: 85.3″ x 105.7″ x 109.1″ High
Machine Weight: 17,400 lbs Approx
