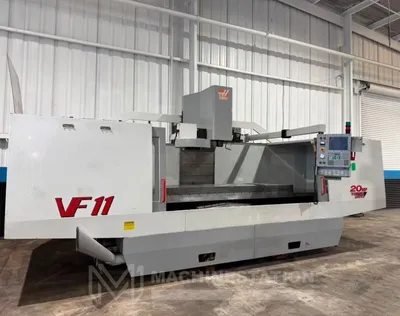

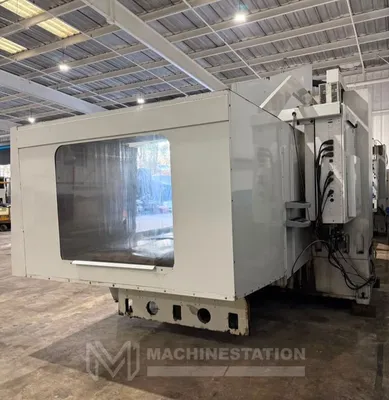

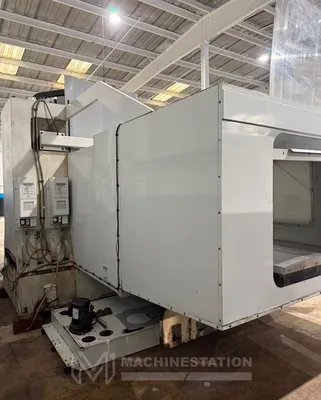

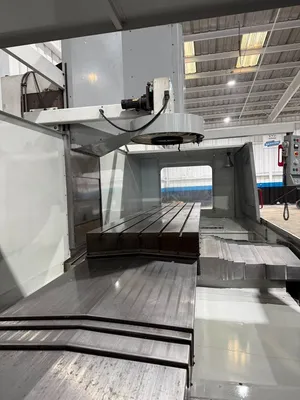

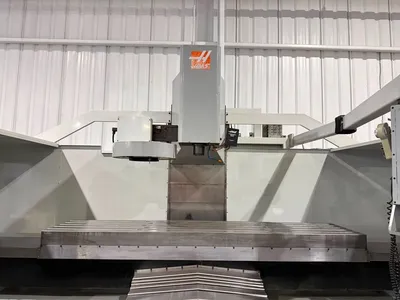

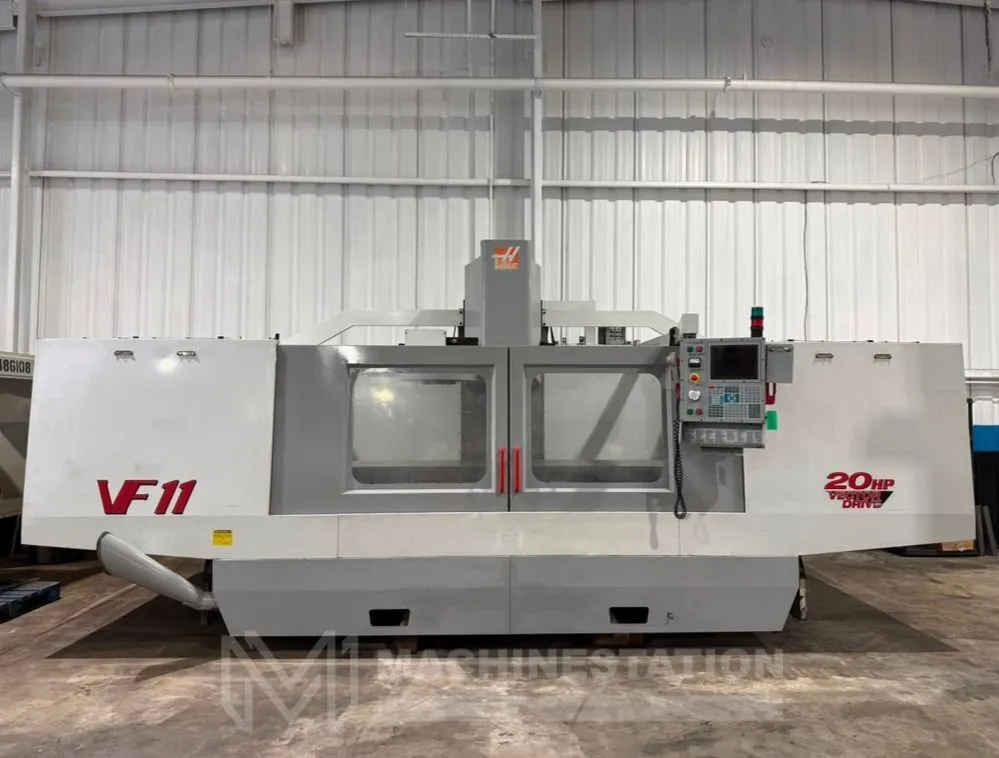

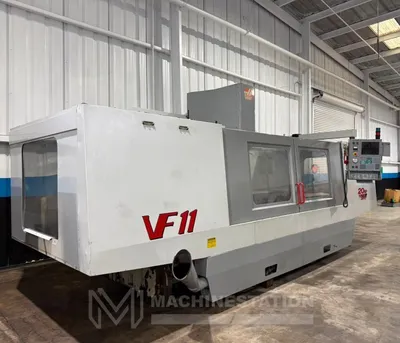

USED 2000 HAAS VF-11

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

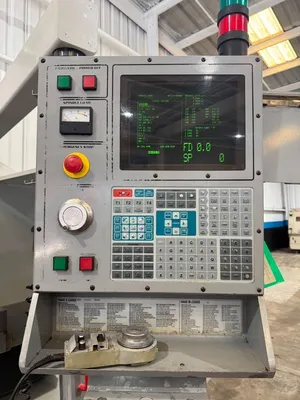

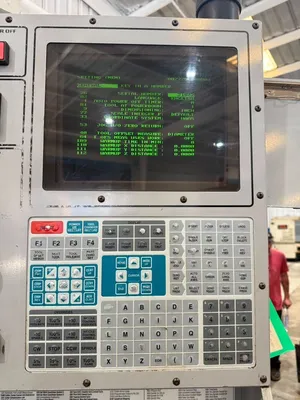

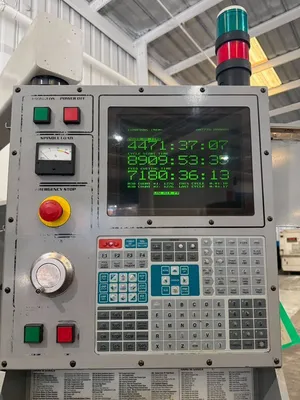

Haas CNC Control
CAT-40 Taper Spindle
20 HP Haas Vector Drive
Quick Code
Rigid Tapping

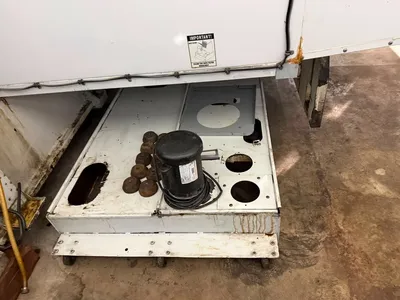

Coolant Tank

Travels:
X-Axis: 120 inch
Y-Axis: 40 inch
Z-Axis: 30 inch
Rapid Traverse Rates X Axis: 360 IPM
Rapid Traverse Rates Y & Z Axis: 600 IPM
Cutting Feed Rates: 360 IPM
Spindle Nose to Table (Min.- Max.): 4 inch – 34 inch

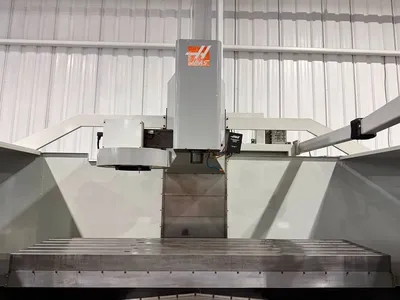

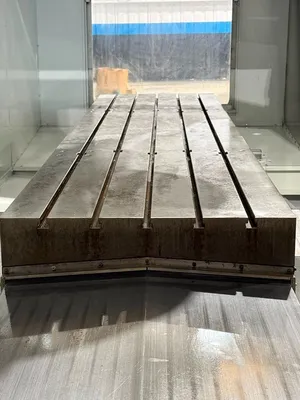

Table:
Length: 120 inch
Width: 28 inch
Number of Std T-Slots: 5
T-Slot Width: 5/8 inch
Max Weight on Table: 4000 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 7,500 RPM
Spindle Power: 20 HP

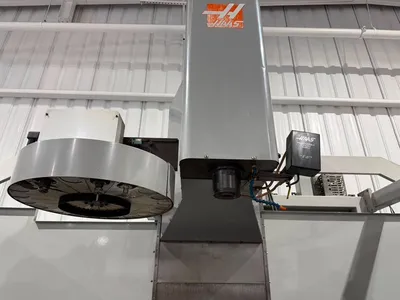

Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Diameter (Full): 2.5 inch
Max Tool Length: 16 inch
Max Tool Weight: 12 lbs

General:
Air Required: 100 psi, 4 scfm

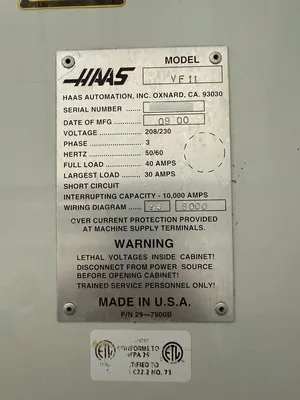

Power: 208v – 230v / 3-Phase
Overall Dimensions: 288 inch x 120 inch x 128 inch High Approx.
Weight: 33,400 lbs Approx.
