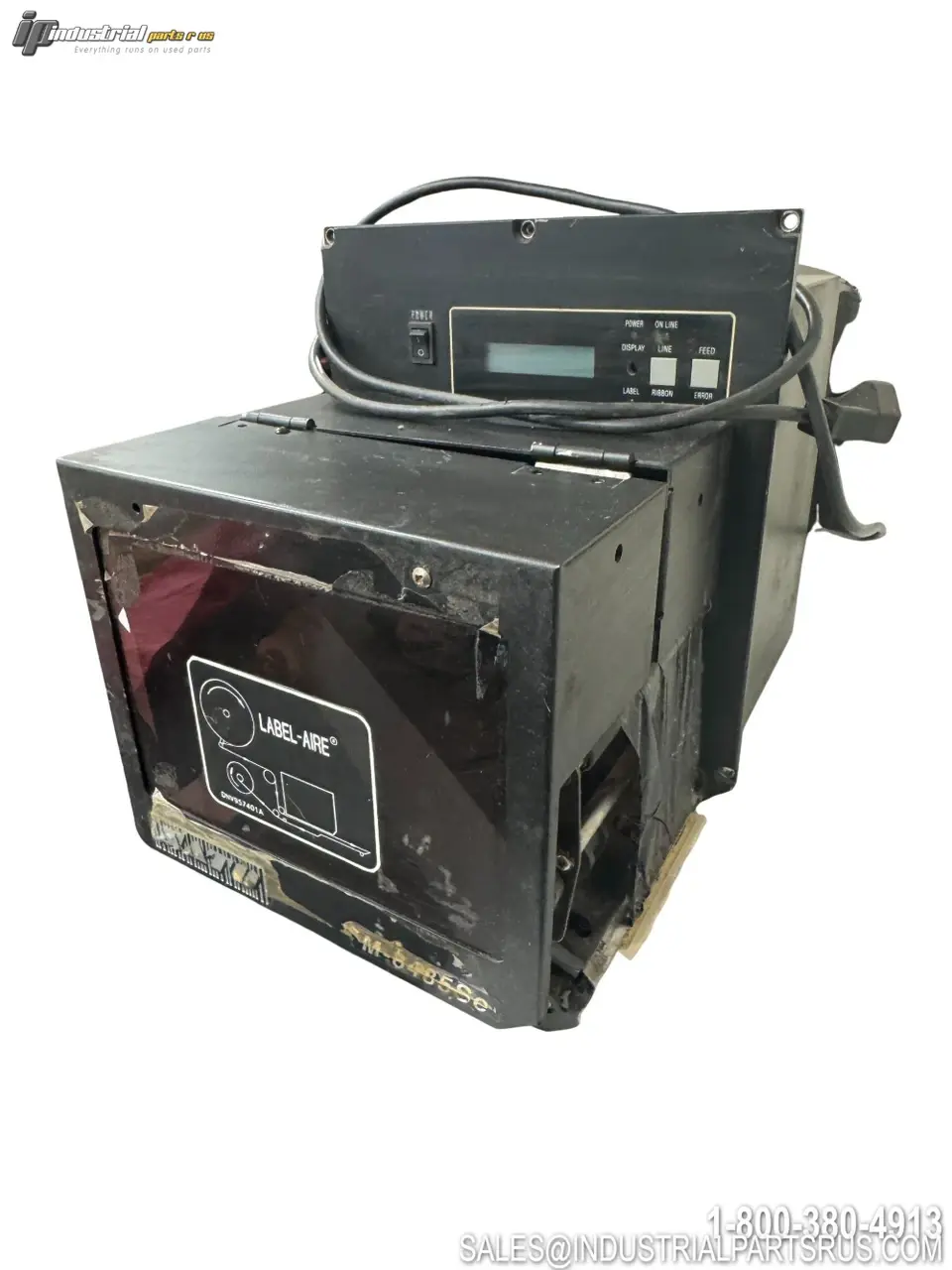

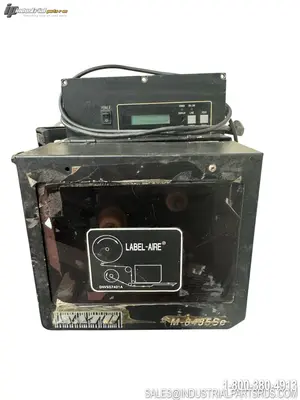

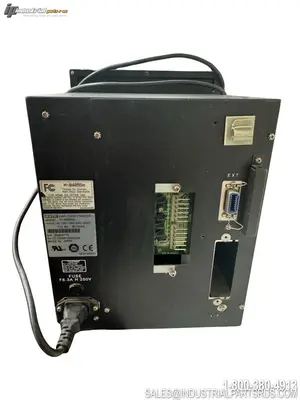

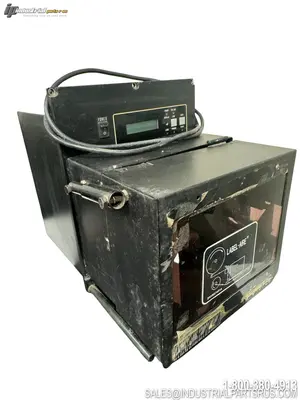

USED SATO M-8485SE

The SATO M-8485Se is an industrial-grade OEM print engine designed to be integrated into high-performance on-site automatic print-and-apply labeling systems. Based on the popular M-8485S, the M-8485Se is the industry's first "Plug and Play" printer capable of full high-speed bi-directional communications. Utilizing the latest in 32-bit microprocessor technology, along with 16 MB of standard RAM, the M8485Se provides virtually instantaneous "time to first label out". Designed with a modular interface slot, the M8485Se allows for a wide variety of interface options to be easily installed and field upgraded.
Specification
Value
Brand
Sato
Model / Part Number
M-8485Se
Product Series
M84Se Series
Product Type
Industrial OEM Barcode Print Engine
Print Method
Direct Thermal / Thermal Transfer
Print Resolution
203 dpi (203 x 203 dpi)
Maximum Print Speed
12 ips (300 mm/s) — User Selectable 4–12 ips
Maximum Print Width
5.0 inches
Label Width Range
1 inch to 5.25 inches
Label Length Range (Internal Memory)
0.25 inches to 14 inches
Label Length Range (PCMCIA Card)
Up to 49.2 inches
Standard RAM
16 MB
Standard Flash ROM
2 MB
Input Voltage
100–120 / 200–240 VAC
Frequency
50/60 Hz
Current Draw
7A @ 100–120V / 3.5A @ 200–240V
Label Sensor Types
Label Gap (Transmissive) and Eye-Mark (Reflective)
Processor
32-bit RISC Microprocessor
Printer Command Language
SBPL v4.2 (SATO Barcode Printer Language)
Available Interfaces
IEEE-1284 Parallel, Serial (RS-232C / RS-422 / RS-485), USB, Ethernet (10/100BaseTx)
Label Feed Direction
Left-to-Right (Standard) or Right-to-Left (Opposite/Left-Hand)
Graphics Support
SATO Hex/Binary, .BMP, .PCX — Full dot addressable
Real Time Clock
Yes — Date/Time stamp on labels
Form Overlay
Yes — High-speed editing of complex label formats
Optional Memory Expansion
PCMCIA Cards up to 16MB Flash or 4MB SRAM; 8MB Flash ROM
EMI/RFI Compliance
FCC Class B, EN55022 Class B, EN61000
Status
Discontinued by Manufacturer
Replacement Model
S84-ex Series (released 2015)
We warranty all items for 30 days from date of purchase.
