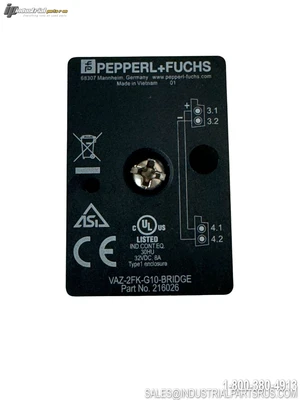

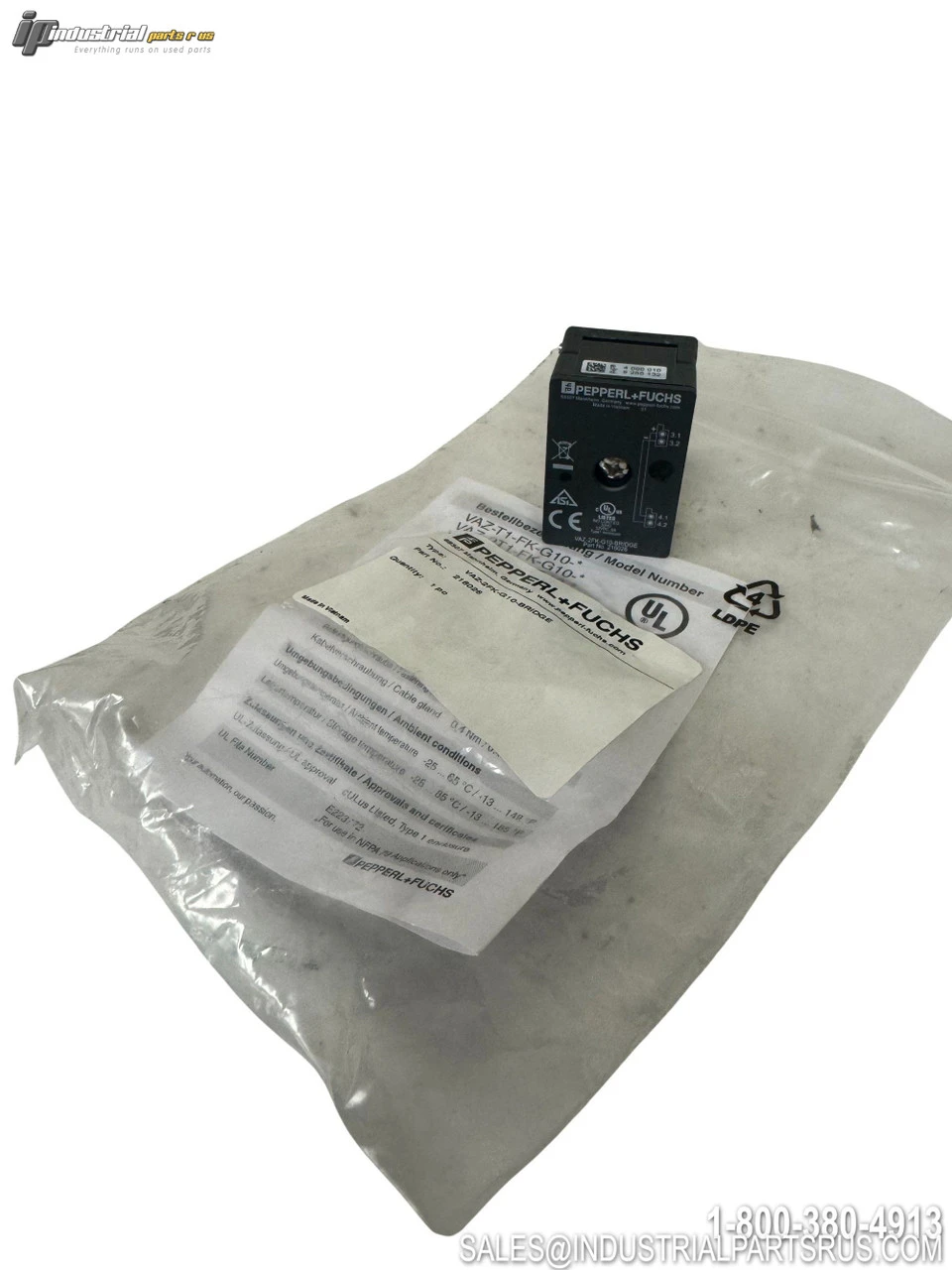

NEW PEPPERL+FUCHS VAZ-2FK-G10-BRIDGE

The Pepperl+Fuchs VAZ-2FK-G10-BRIDGE is an AS-Interface (ASi) splitter box featuring a G10 flat cable to flat cable configuration. It is designed for use with industrial AS-Interface sensor networks, providing a compact bridge connection point in a one-piece PBT/PC housing with gold-plated and machined contacts for reliable, long-life connectivity. The unit features an IP68/IP69K ingress protection rating, high current capacity, and simple snap-mounting for fast installation in demanding industrial environments.
Specification
Value
Brand
Pepperl+Fuchs
Model / Part Number
VAZ-2FK-G10-BRIDGE
Supplier Part Number
216026
Product Type
AS-Interface Splitter Box (Bridge)
Series
VAZ
Connection Type
Flat Cable Terminals (G10, Flat Cable to Flat Cable)
For Use With
AS-Interface Industrial Sensor Networks
Voltage Rating
32 V AC
Current Rating
8 A
Max Current Loading Capacity
12 A (with 2.5 mm² wire cross-section)
Number of Ports
2
Enclosure / Protection Class
IP67 / IP68 / IP69K (IP68/IP69K with VAZ-FK-S-* flat cable)
Protection Class (Electrical)
Class III
Overvoltage Category
Category III
Pollution Degree
3
Housing Material
PBT/PC (One-piece)
Contact Material
CuSn/Au (Gold-plated and machined)
Mounting Screw Material
Stainless Steel 1.4305 / AISI 303
Tightening Torque (Fastening Screws)
1.65 Nm
Dimensions (L x W x H)
40.5 mm x 27.7 mm x 22 mm
Operating Temperature
-25°C to +75°C (-13°F to +167°F)
UL File Number
E223772 (For use in NFPA 79 Applications only)
RoHS Compliant
Yes
UNSPSC Code
32151601
We warranty all items for 30 days from date of purchase.
