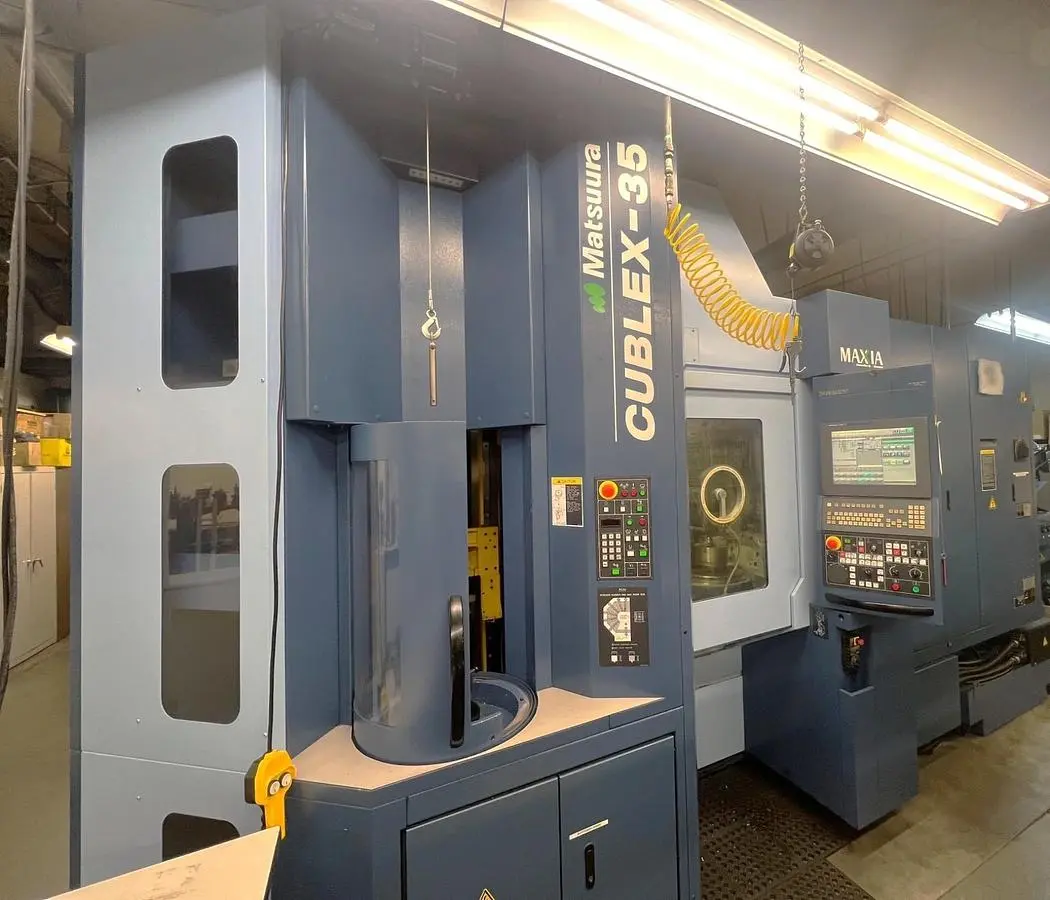

USED 2015 MATSUURA CUBLEX-35 5 AXIS MULTI TASKING MACHINING CENTER

C Axis 360 Degree Pallet Rotation
Trunnion Style A Axis

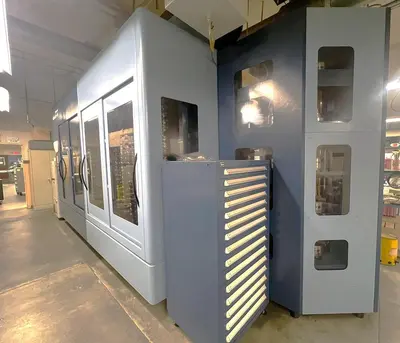

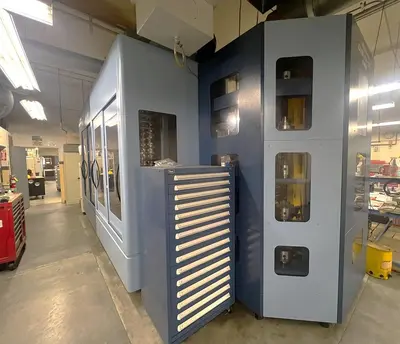

32 Pallet Tower Pallet System with Load/Unload Stations
520 Station Tool Changer
Cooljet Coolant System with Coolant thru the Spindle
Laser Tool Setting with Tool Breakage Detection System
Chip Conveyor
Rigid Tapping
Manual Pulse Generator
All Available Manuals

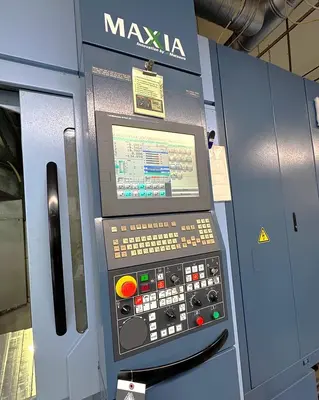

The 2015 Matsuura Cublex-35 is a used 5-axis multi-tasking machining center designed for high precision jobs. Equipped with the Matsuura G Tech 31i Control, this machine handles complex operations with a maximum workpiece size of 13.77 inches in diameter and 12.4 inches in height. It boasts considerable X, Y, and Z-axis travel distances of 21.65 inches, 17.32 inches, and 22.83 inches respectively. Its B-axis allows a tilt movement from +65 to -125 degrees, while the C-axis offers full 360-degree rotation, making it versatile for intricate machining tasks.

The machining center is enhanced with a spindle speed of 20,000 RPM and features a powerful 25 HP spindle motor with an HSK 63A taper, ensuring efficient performance. Additionally, the C-axis spindle rotation capacity at 3,000 RPM adds to its operational capability. With an impressive rapid traverse rate of 2362 IPM, this machine ensures quick and precise movements, reducing production time significantly.

A standout feature is the 520 station tool magazine, allowing for a vast selection of tools, minimizing downtime and enhancing productivity. The machine supports a maximum table load of 132 lbs., making it ideal for various industrial applications. Although specific machine dimensions and weight are unavailable, the inclusion of a 32 pallet tower provides vast flexibility and capacity for handling substantial machining tasks.
