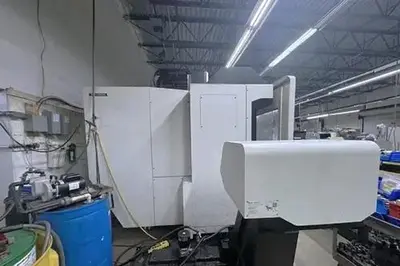

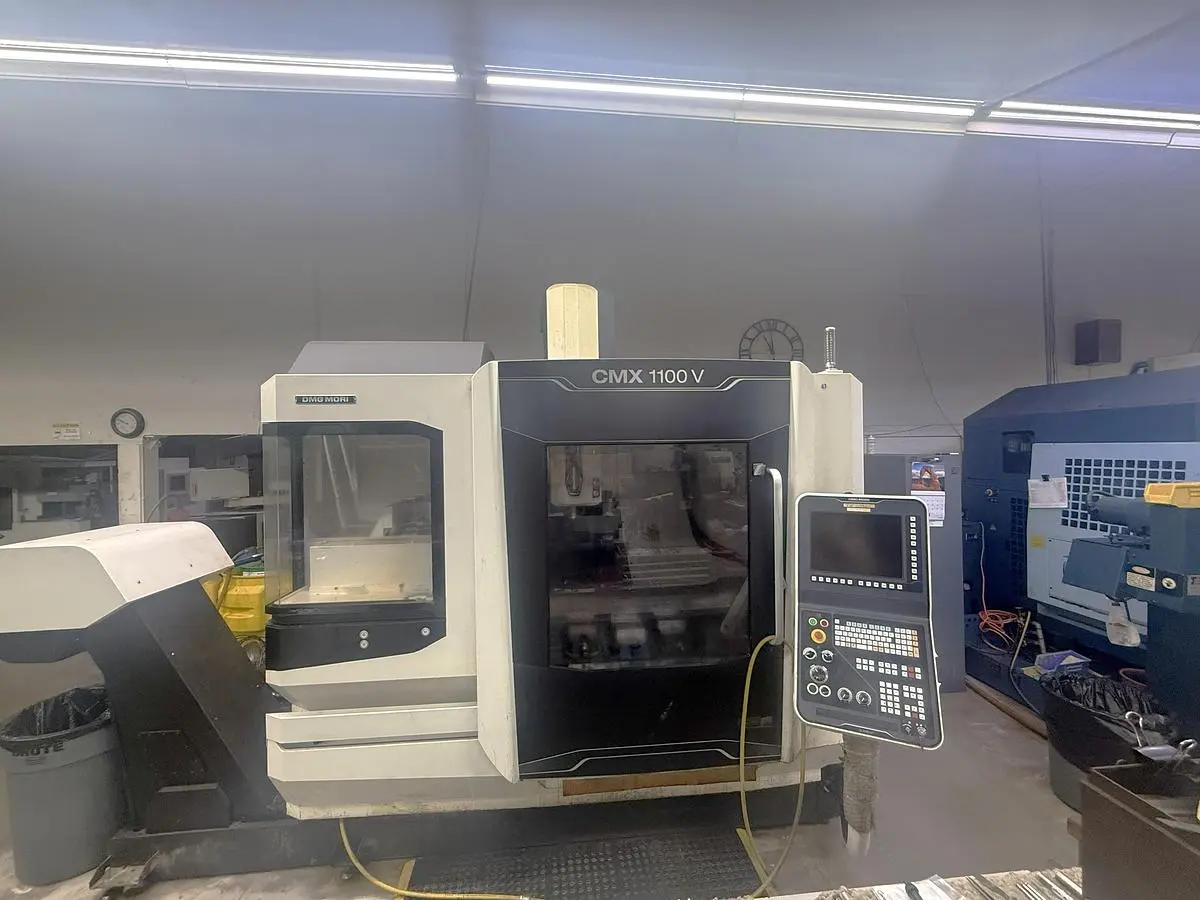

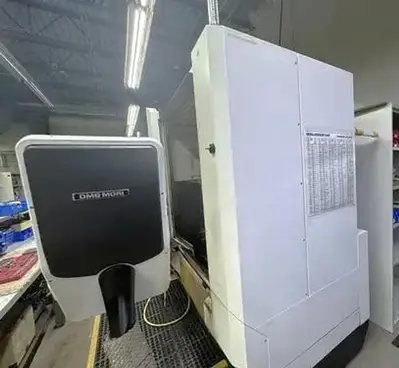

USED 2017 DMG-MORI CMX 1100V

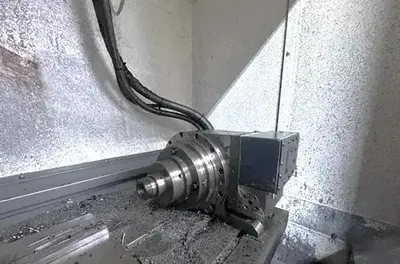

DMG Model DDRT-200X 4th Axis Rotary Table
30 Station Side Mounted Tool Changer

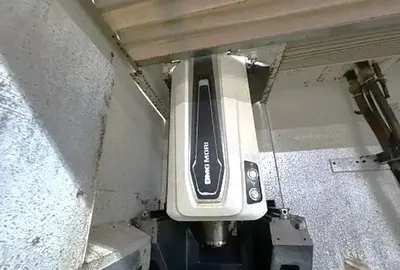

12,000 RPM Spindle
Chip Conveyor
Inline 20 HP Spindle Design
Rigid Tapping
Coolant System with Tank & Pump
USB Port Interface
RS-232 Port Interface

*Estimated Replacement Cost of New as Equipped $175,000 - $180,0000

The 2017 DMG Mori CMX 1100V is a reliable used CNC vertical machining center, equipped with a 4th axis rotary table for complex, multi-dimensional operations. With a spindle speed of up to 12,000 RPM and a 20 HP inline spindle motor, it offers both precision and power for heavy-duty machining. The large table, measuring 55.1" by 22", can support up to 2,200 pounds, making it suitable for a variety of components.

This model features a DMG Mori control system, which enhances user experience with intuitive operation. For increased productivity, the machine includes a 30-station side-mounted automatic tool changer, allowing swift and efficient tool transitions. The X, Y, and Z-axis travel of 43.3", 22.06", and 20.1" respectively, coupled with rapid traverse rates of 1418 IPM on X and Y axes and 1182 IPM on the Z-axis, ensure fast processing times.

Convenience is further enhanced by the included chip conveyor, aiding in maintaining a tidy workspace and effective chip management. It is a compact unit, measuring 126" x 108" x 116", with a machine weight of 12,100 pounds, making it suitable for most industrial spaces without the need for extensive modifications. This machinery offers a competitive edge for businesses aiming to deliver precision machining efficiently.
