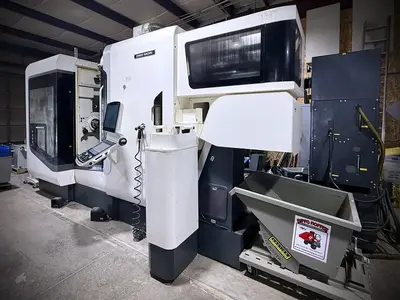

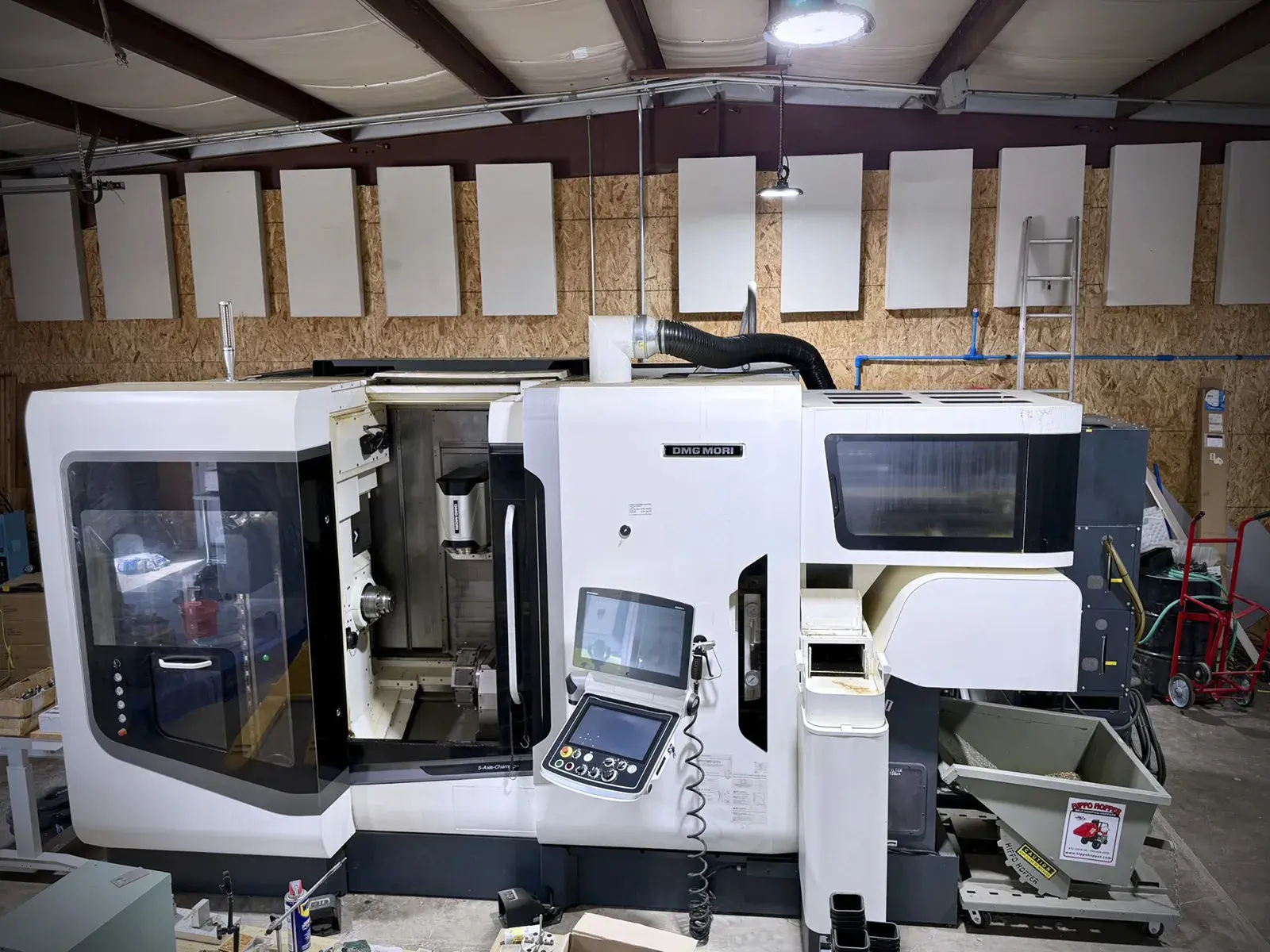

USED 2019 DMG MORI NTX 1000

CELOS Control with FANUC 31i-B5

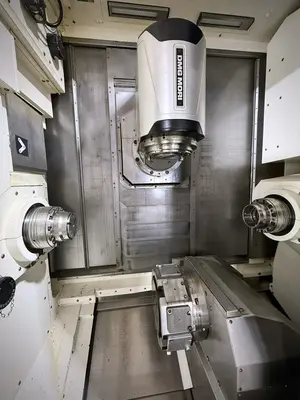

20
000 RPM B-Axis Milling Spindle
Capto C5 Tooling Interface
Simultaneous 5-Axis Machining
Full C-Axis on Main and Sub-Spindle

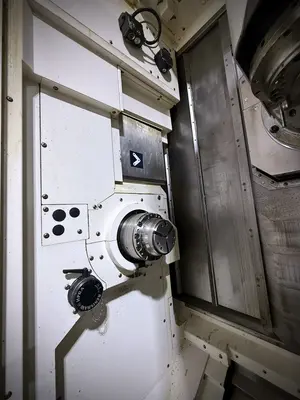

Collet Chuck included

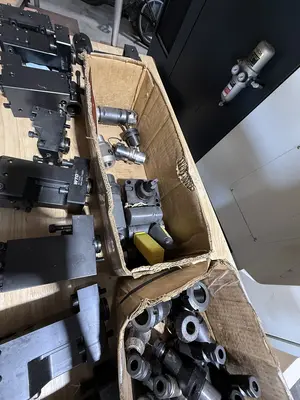

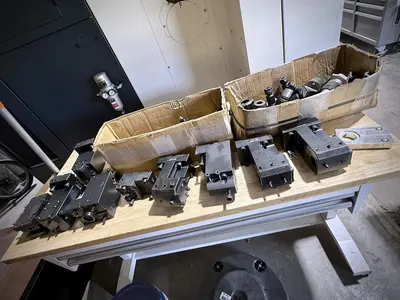

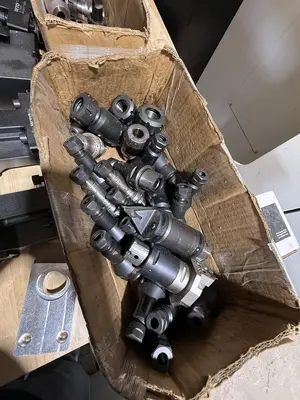

Pictured Tooling included
10-Station Lower Turret with milling

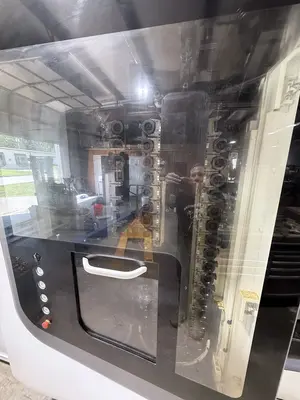

Extended 76 tool capacity
Renishaw Tooo Presetter
High-Pressure Coolant

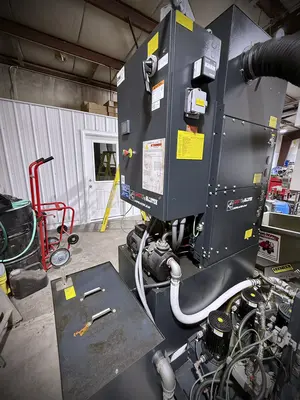

LNS ChipBLASTER R-50
3D quickSET
Gantry unloader system
Parts Conveyor system
Chip Conveyor
Max Turning Diameter: 16.9″
Max Turning Length: 31.5″
Max Bar Capacity: 2.6″
Swing over cross slide: 17.7″
Distance Between Spindles: 41.3″
X1 Axis Travel: 17.9″
Y Axis Travel: +/- 4.53″
Z1 Axis Travel: 31.4″
X2 Axis Travel: 6.2″
Z2 Axis Travel: 28.7″
B Axis Travel: 240 Degree
C axis: 360 Degree (0.001)
X Rapid Traverse Rate: 1574.8 Inch Per Minute
Y Rapid Traverse Rate: 1574.8 Inch Per Minute
Z Rapid Traverse Rate: 1968.5 Inch Per Minute
Main Spindle Nose: A2-6
Main Spindle Bore: 2.5″
Main Spindle Speed: 5000 RPM
Main Spindle Motor: 15 HP
Sub Spindle Nose: A2-6
Sub Spindle Bore: 2.0″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 15 HP
Milling Spindle Taper: Capto C5
Milling Spindle Max speed: 20,000 RPM
Tool Storage Capacity: 76 tools
Lower Turret Capacity: 10 tools
Overall Dimensions: 178.5″ x 100.1″ x 101.8″ High
Weight: 25,353 lbs Approx.
