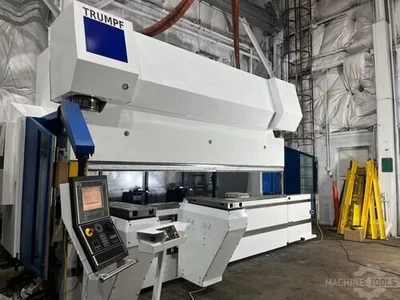

USED 2006 TRUMPF TRUMABEND V320

General Info

Stock #: 153260022
Brand: Trumpf
Model: Trumabend V320
Year: 2006

Specifications

Capacity: 352 US Tons
Overall Length Of Bed And Ram: 174”
Distance Between Housings: 145”
Stroke: 14”
Max Open Height: 25”
Effective Open Height: 21”
Ram Inclination: +/- 0.4”
Throat Clearance: 16”
Approach Speed: 354” Per Minute
Form Speed: 2-24” Per Minute
Return Speed: 320” Per Minute
Distance Floor To Top Of Bed: 41”
Width At Top Of Bed: 8”
Operating Height: 41”
Oil Capacity: 133 US Gallons
Main Motor Horsepower: 50

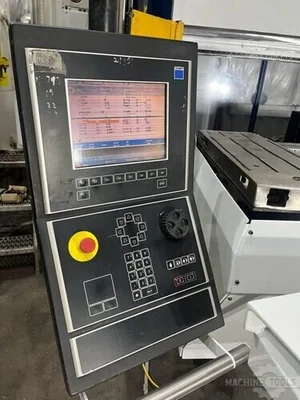

Control: Trumpf Delem DA-69TW Multi-Axis Control (Y1,Y2,X , R, I )

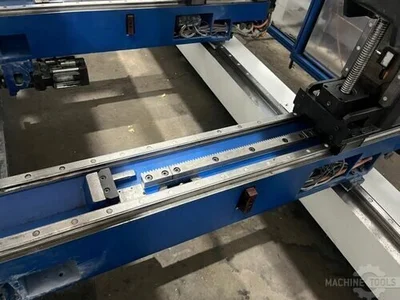

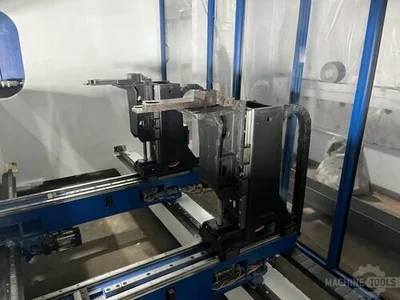

X-Axis: X1, X2 Max Distance 34.6” Travel 19.6” Max Speed 13” Per Min
R-Axis: R1, R2 Travel 13.3” Max Speed 3.9”
Z-Axis: Z1, Z2

Equipped With
Automatic Crowning, I-Axis Die Shift, Isb Merlin Light Curtains, Ram Inclination In Y1 –Y2, Upper & Lower Hydraulic Tool Clamping, Self-Active Crowning, Self Centering Tooling Adaptor, Precision Ram Leveling With Dual Linear Glass Scale Encoders, Oil Cooler, Electric Foot Switch
