USED COE PRESS EQUIPMENT CPR-PO-8012 / CPPS-PO-250-12 / CPRF-S312

Coil Weight: 8000 pounds
Coil Width: 12 inches
Coil Thickness: .187 inches

12" Coe Press Equipment Coil Feed Line8,000 lbs. Maximum Coil Capacity12" Maximum Coil Width60" Maximum Coil O.D.COE PRESS Servo Roll Feed Model No. CPRF-S312 / Serial No. 52363-1
Three inch diameter feed rolls
Piloting upper roll
Adjustable edge guides
Press mounted
AC Servo Controls

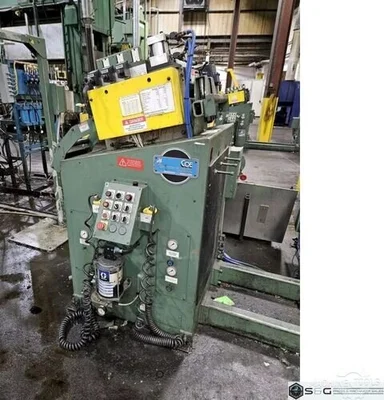

COE PRESS Powered Coil Straightener Model No. CPPS-PO-250-12 / Serial No. 52363-2
Entry pinch rolls with air operated adjustment
Seven Straightening rolls x 2.50" diameter
Individual upper roll adjustment with position readouts
Adjustable stock width edge guides
Automatic lubrication system
AC VF Drive and control system
Operator's control station
Jog forward and reverse
Auto / Run cycle with loop control

COE PRESS Coil Reel Uncoiler Model No. CPR-PO-8012
Three leaf mandrel with hydraulic expansion
Coil hold down arm
Air Brake with adjustable tensioning
Self contained hydraulicsCan be seen under power upon request!

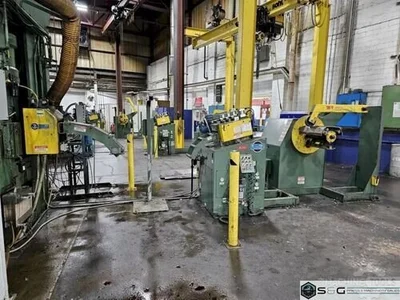

Enhance your pressroom productivity with this complete COE Press coil feeding system. This heavy-duty line includes a COE CPRF-S312 Servo Roll Feed (3" rolls, piloting upper roll, AC servo controls) and a COE CPPS-PO-250-12 Powered Coil Straightener with seven 2.5" rolls, individual upper roll adjustments, automatic lubrication, and VF drive loop control.
Matched with a COE CPR-PO-8012 Uncoiler Reel featuring a 3-leaf hydraulic expansion mandrel, air brake, and integrated hold-down arm, this robust coil processing system delivers exceptional stock handling, precision feed accuracy, and reliable automated performance for high-demand press applications.
