Mazak Integrex i300 – 2011
Overview

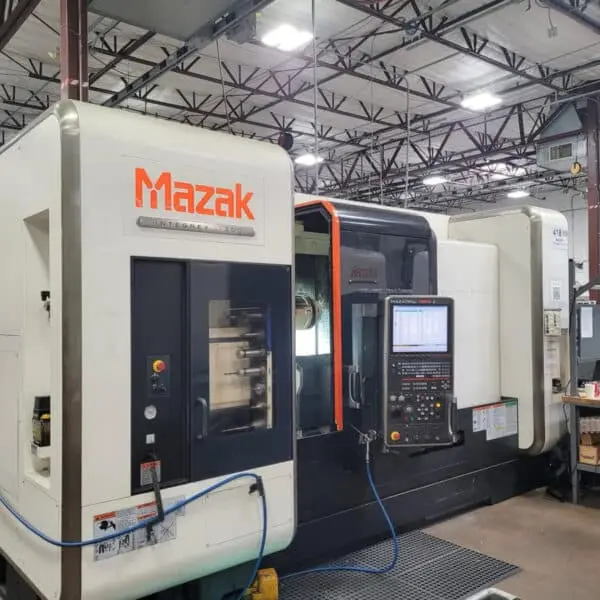

2011 Mazak Integrex i-300 Multi Axis CNC Lathe
Max. swing / Swing over cross slide: 25.9″
Max. machining diameter (Upper turret): 25.9″
Max. machining length: 59.8″
Max. bar work capacity: 3.15″
X Axis Travel: 24.2″
Z Axis Travel: 42.4″
Y Axis Travel: 10.24″
B Axis Travel: 30° ～ 210°
Chuck Size: 10″
Main Spindle Speed: 4,000 RPM
Main spindle nose: A2-8
Main spindle bore: 3.58″
Minimum main spindle indexing increment: 0.0001°
Milling spindle speed: 12,000 RPM
Boring bar shank diameter: 1.5″
B-axis minimum indexing increment: 0.0001°
Tool Shank: Capto C6
Tool Changer Capacity: 36
Spindle Motor: 30/40 HP
Milling Spindle Motor: 20 / 30 HP
Equipped With
Mazatrol Matrix 2 CNC Control
Chip Conveyor
Live Milling
Y Axis
Main spindle 0.0001°indexing・C-axis
B-axis 0.0001°indexing / contouring (EIA)
Programmable Tailstock
Work Light
Absolute position detection (linear axes)
Hydraulic pressure interlock
Operator door interlock
Tool eye (Upper turret / Automatic)
Cover coolant
Flood coolant
EIA
EIA 3D Comp
Sync. Mill Tapping
Tilted Working Plane
