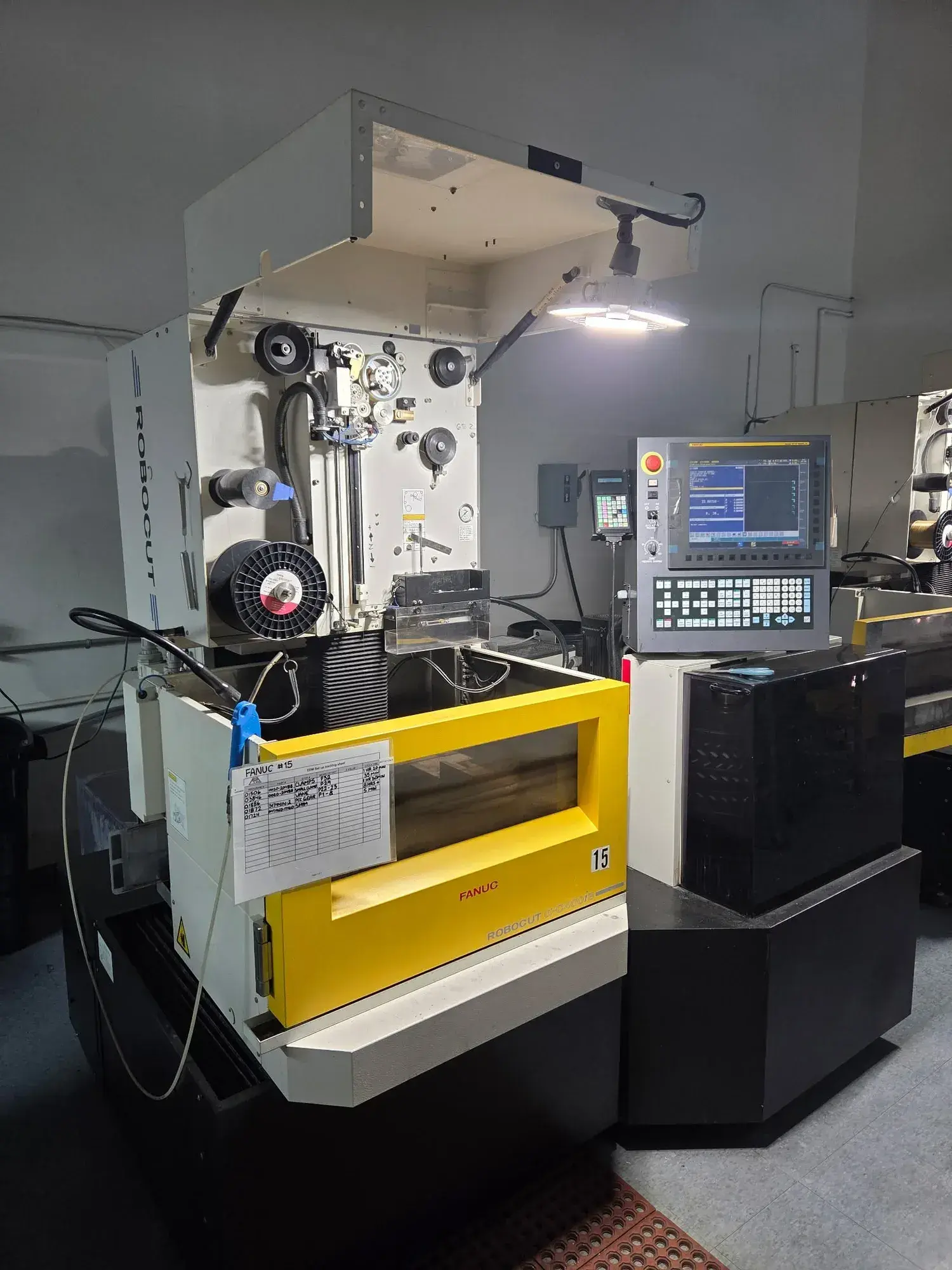

USED 2017 FANUC ROBOCUT A-C400IB
Overview
Specs
X-Axis Travel: 15.7"
Y-Axis Travel: 11.8"
Z-Axis Travel: 10.2"
Internal Work Tank Size: 28.7” x 24.8” x 9.8
Tank Capacity: 145 Gal
Maximum Submerged Cutting Depth: 9.8"
U/V Axis Travel: 2.36" x 2.36"
Maximum Work Piece Weight: 1,102 Lbs.
Control: Fanuc Series 31i-WB
Power Requirement: 200-220 V/3 Phase/60 Hz
Degree Taper Cutting: 12° @ 10.0"
Machine Weight: 4,000lbs
Glass Scale Feedback: X and Y Axis Only
Floor Space: 94" x 105"
Inside Tank Dimensions: 28.7” x 24.8”
Wire Diameter: 0.004" To 0.012"
Equipped With
Auto Wire Threading
Automatic Power Recovery
Programmable “Z” Axis
Automatic Restart
Programmable Flushing
Ethernet Port
Chiller
Exclusive Twin Servo Motor Wire Tension System
FANUC Automatic Wire Feed System
S232C Input/Output Port for File Transferring
Fanuc Filtration Unit
2 USB Ports
FANUC High Speed Digital / AC Power Supply
Servo Motor Controlled Automatic Water Level Control in Work Tank
FANUC Serial/Digital AC Servo Motors
3D Coordinate System Rotation
Fanuc Series 31i-WB 15" Color LCD – Touch Screen
Stainless Submersible Vertical Wire Alignment Gauge
Heidenhain Linear Glass Scales
Anti-Crash Protection
Independent Column Mounted U and V Axis Slides
Auto Wire Recovery Function
NC Command Resolution Of 0.0000004” (0.0001 Mm)
Automatic Corner Rounding
Part Program Storage Capacity 4 Megabyte
