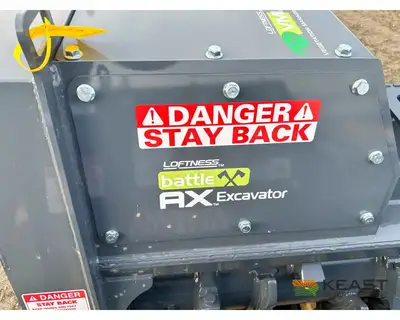

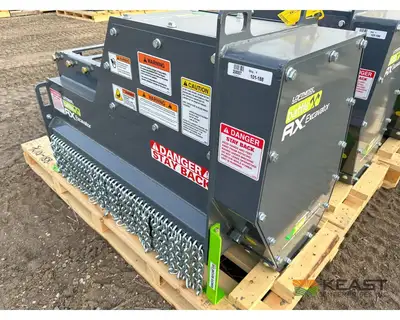

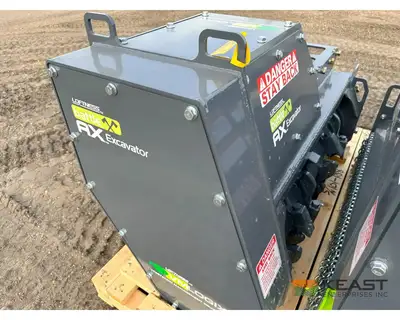

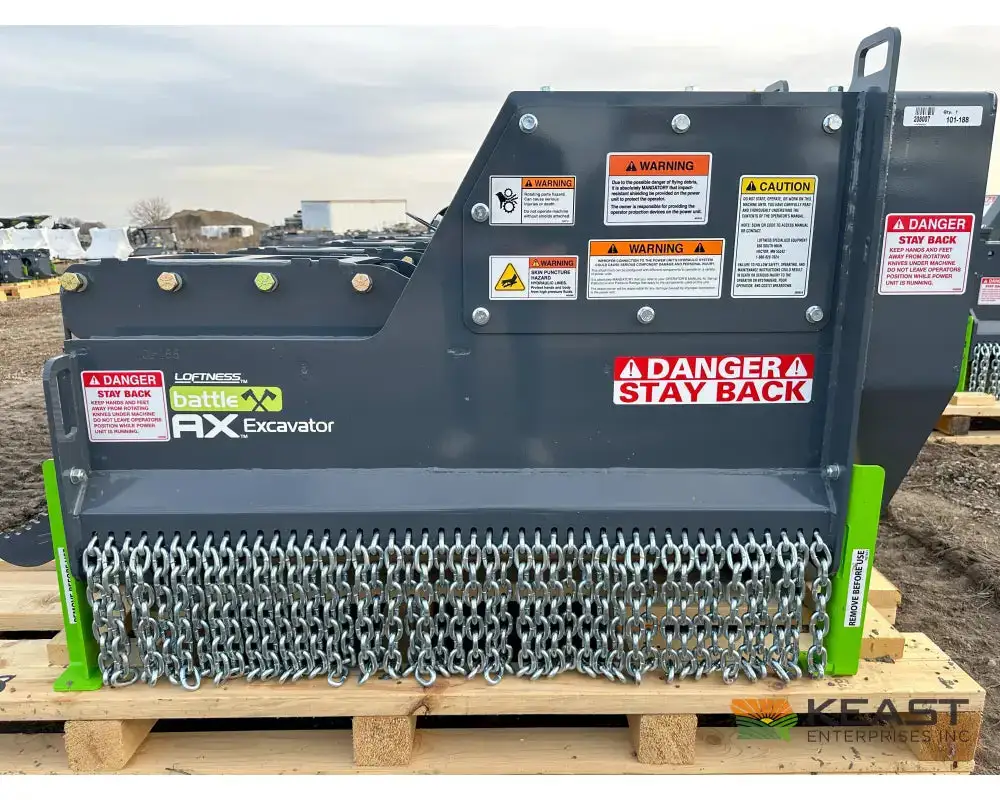

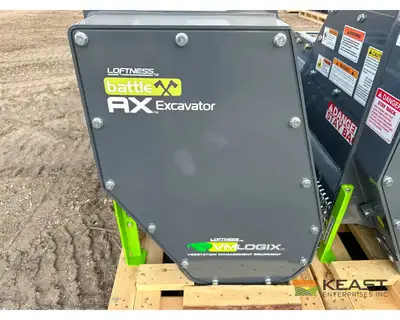

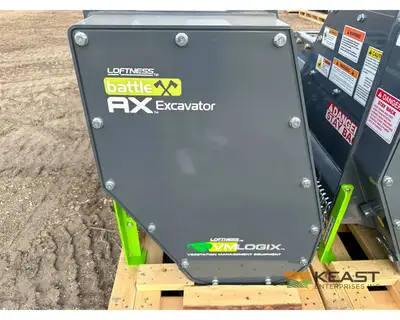

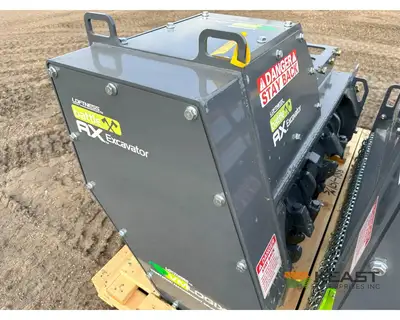

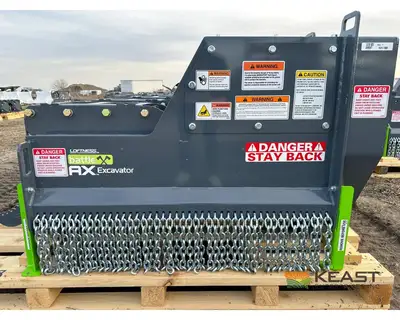

Loftness 41BX30 Battle Ax Excavator Mulcher, 41" Cut, Planer Teeth

The Loftness 41BX30 Battle Ax fits excavators in the 18,000 to 36,000 lb class doing land clearing, right-of-way work, and general vegetation management. Its 41" cutting width keeps the head compact for placement around standing material. The Battle Ax rotor uses depth gauges to control bite.
This configuration includes reversible planer teeth (beaver teeth available), a 105cc adjustable-displacement piston motor, and a blank plate mount. The 30 Series platform is designed for excavators running from 20 to 60 GPM and up to 6,000 PSI. It uses a two-stage cutting chamber and synchronous belt drive.
Key Features
Reversible Planer Teeth
The reversible planer teeth allow the opposite cutting edge to be used as wear develops. Optional beaver teeth are also available.
105cc Adjustable-Displacement Piston Motor
The hydraulic motor is designed for 20 to 60 GPM excavators and can be adjusted to fine-tune rotor speed and performance.

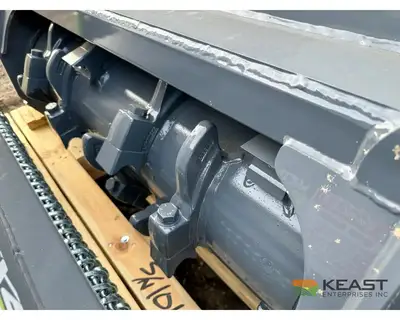

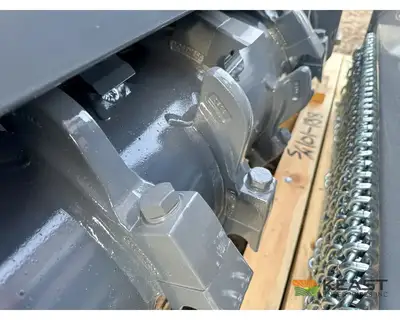

Battle Ax Rotor And Two-Stage Chamber
Built-in depth gauges help control cut depth, while the two-stage chamber with dual shear bars helps produce a finer finished material.

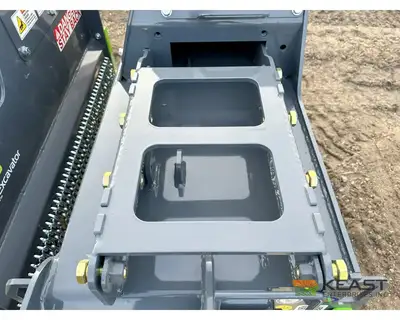

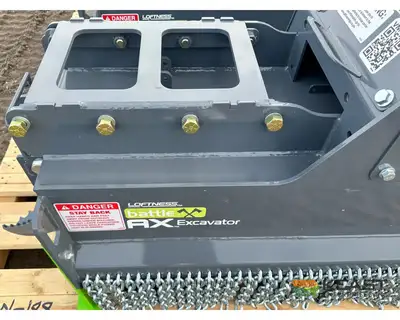

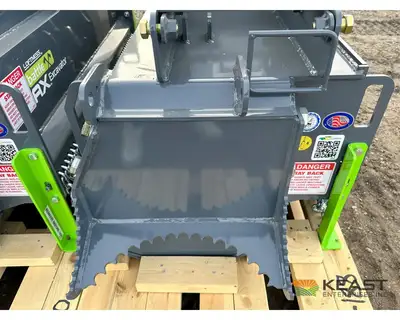

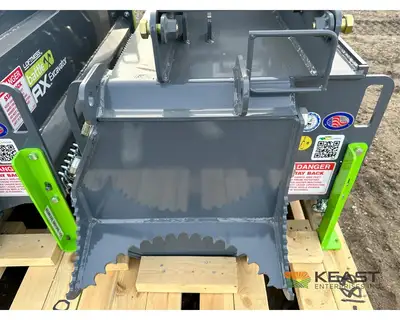

Blank Plate Mount
The included blank plate supports mounting to your carrier. Custom-built mounts are available; contact us to have one built for you.
Technical Specifications
