Sitrex QRX12 Rake, 55" Wheels, Hydraulic Width Adjust, Center Kicker Wheels

The Sitrex QRX12 is a 12-wheel, high-clearance carted rake with hydraulic width adjustment and an included double center kicker. Its working width runs from 22 feet to 25 feet 1 inch, and the finished windrow can be set from 3 feet to 6 feet 7 inches.

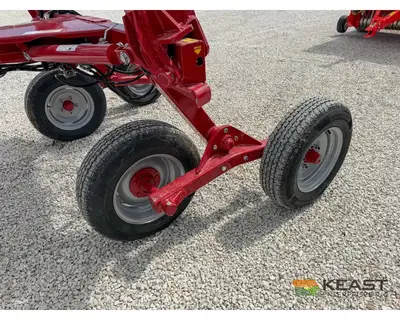

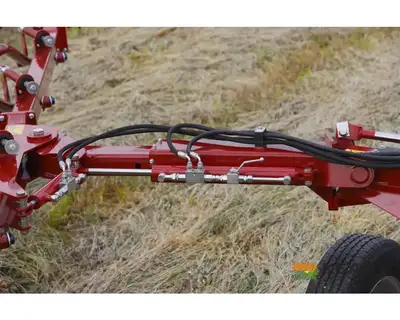

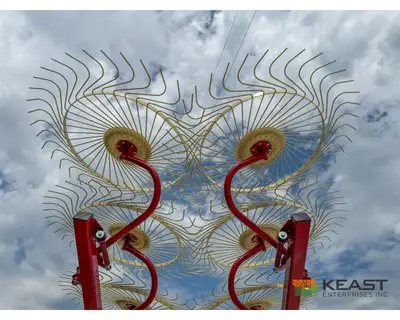

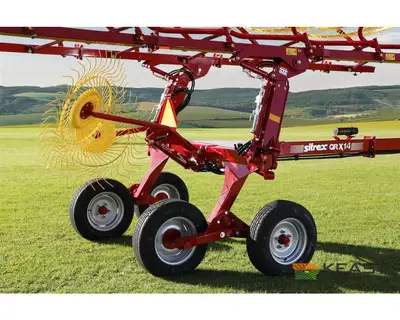

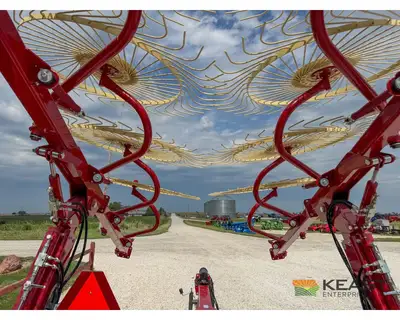

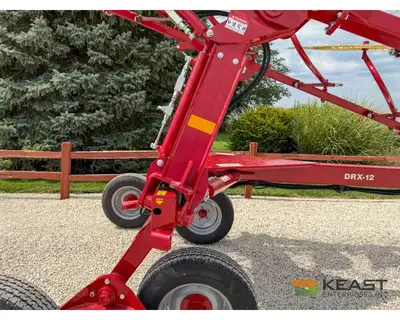

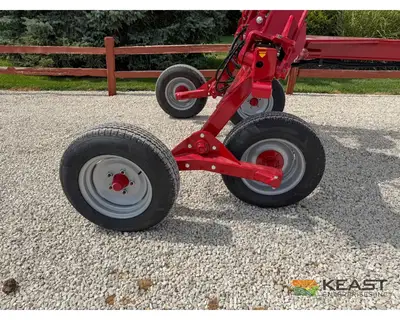

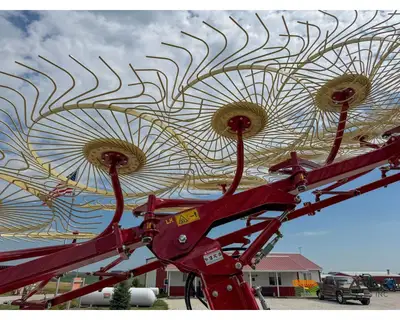

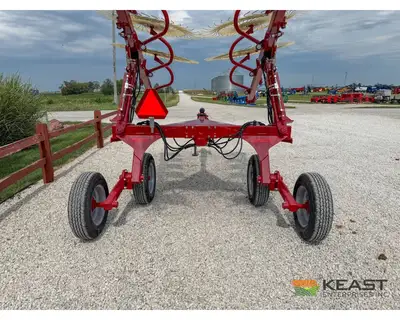

Hydraulic extension and rake-angle control allow the operator to adjust the machine from the tractor. Each finger wheel is independently suspended, while the tandem transport wheels help the frame move over uneven ground. Standard 55-inch wheels use 7 mm tines; 60-inch wheels with heavier 7.5 mm tines are available.
Specifications

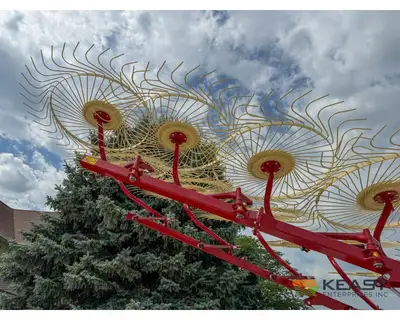

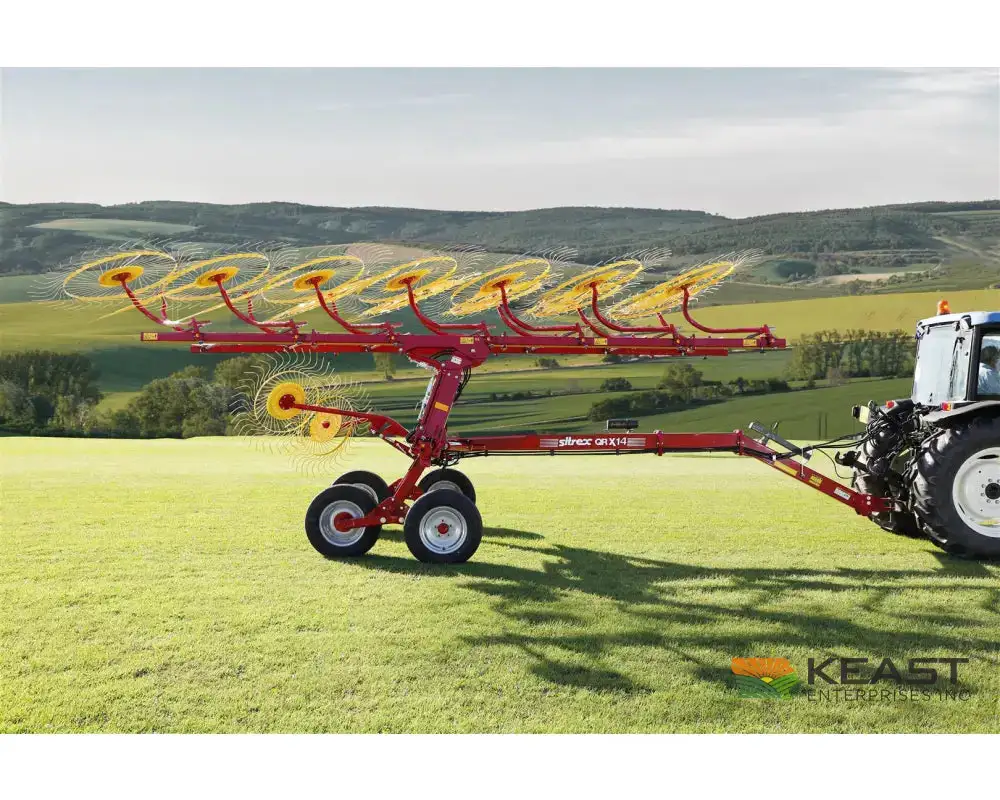

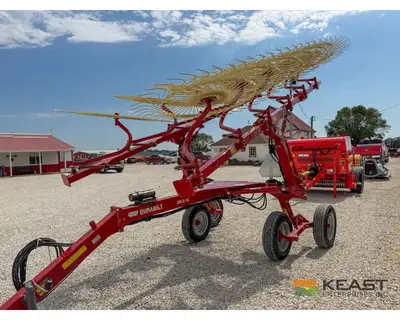

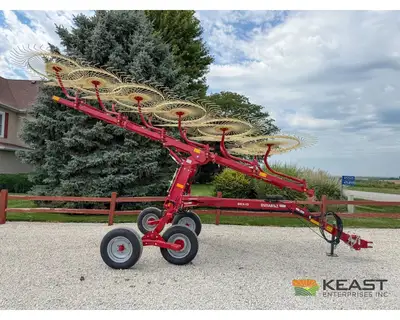

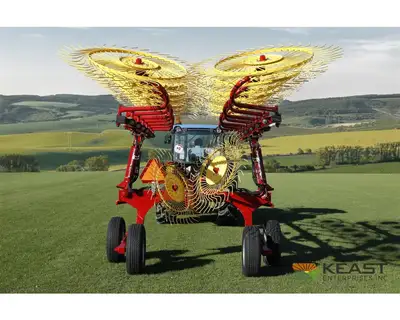

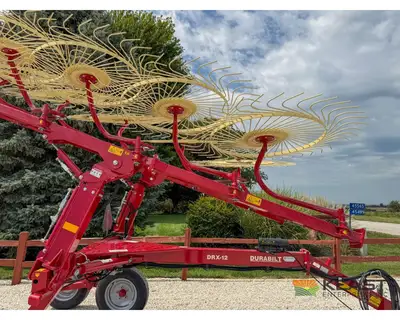

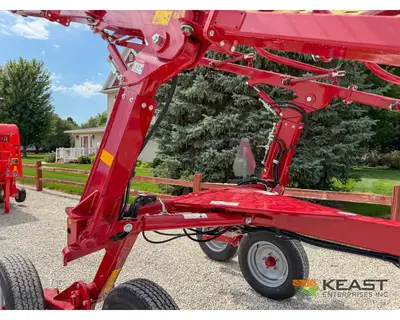

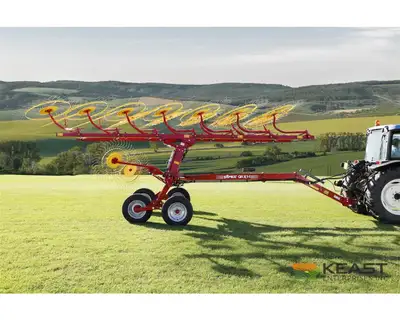

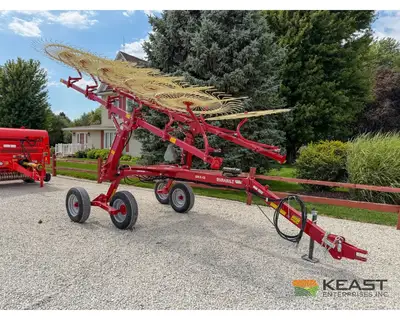

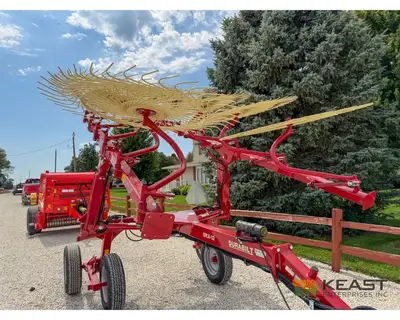

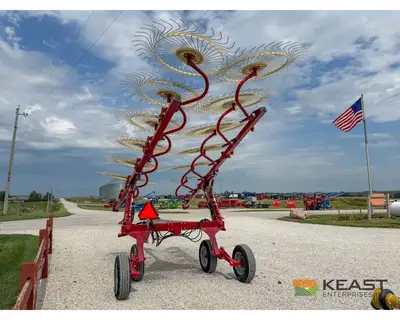

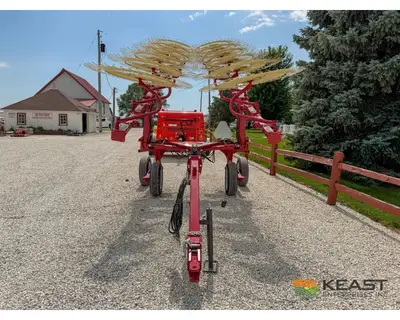

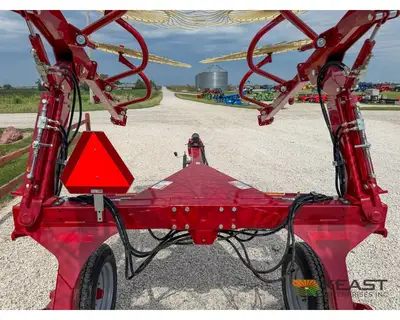

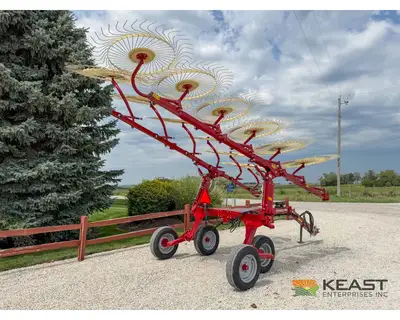

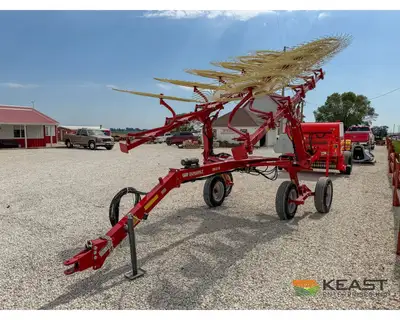

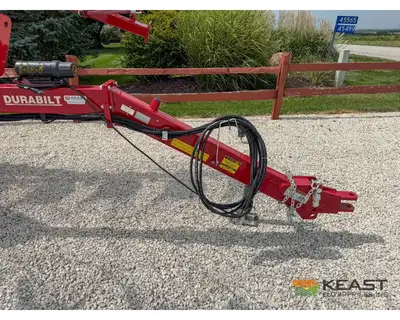

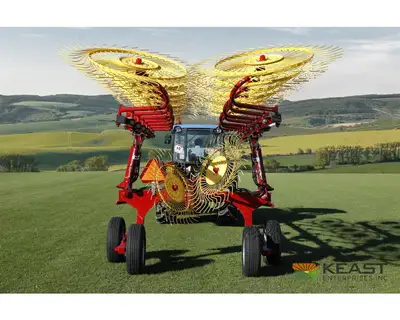

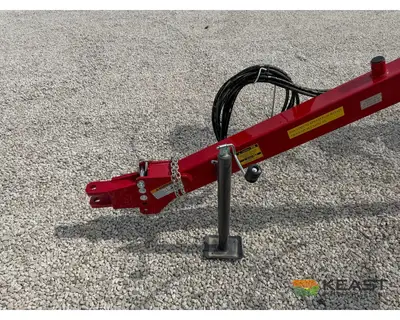

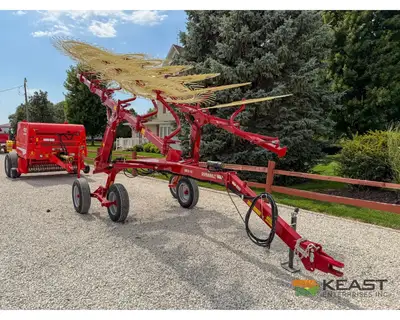

The product photos currently show a QRX14; QRX12 images will be added when available. The QRX12 has the narrowest working range in this series, but it keeps the same hydraulic adjustments, wheel choices, and double center-kicker layout as the larger QRX models.
