Used

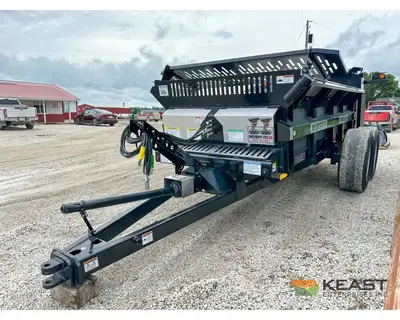

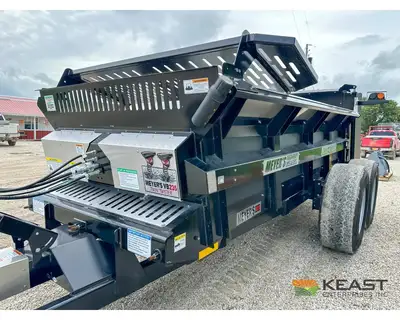

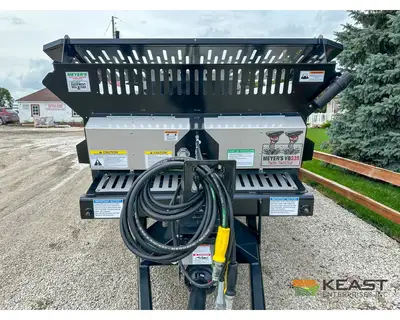

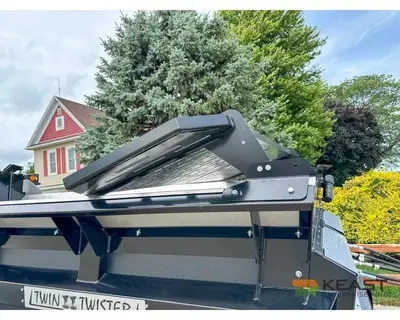

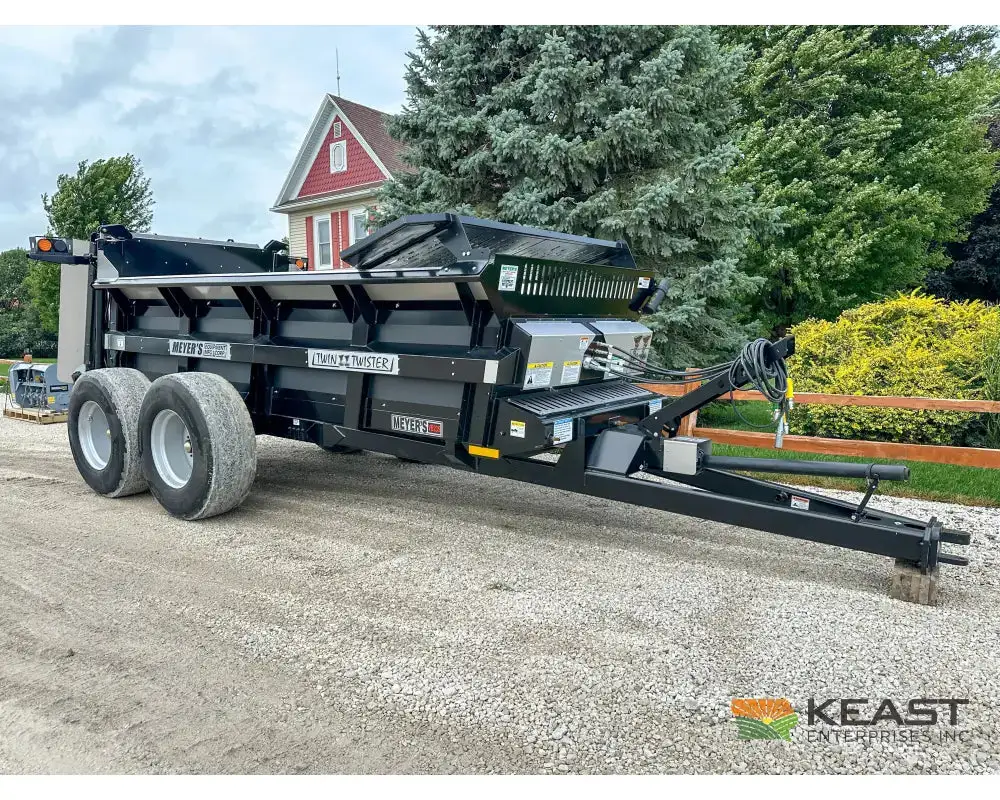

Meyers VB235 Manure Spreader, 235 Cu Ft Capacity Struck, Poly Box

Iowa, United States
Asking Price
USD $45,038.00
Rental AvailableFrom USD $4,680.00/mo
1 available
601Listings|4Followers
Overview
Manure Spreaders

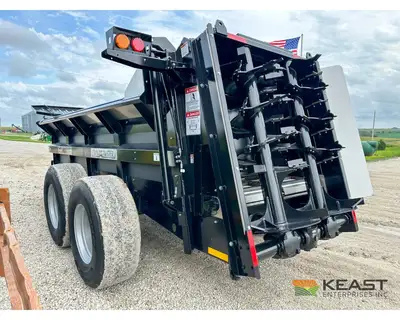

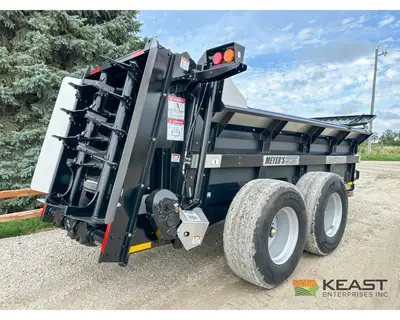

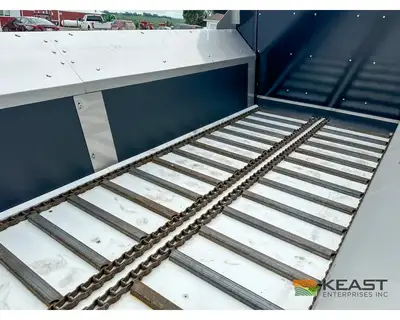

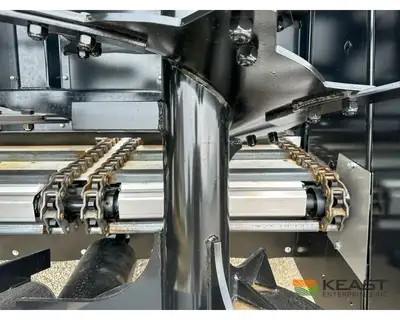

The Meyers VB235 is a vertical-beater manure spreader with a solid poly box and variable-speed apron feed. The apron chains carry material to the rear, where spiral-flighted beaters break up and distribute it.

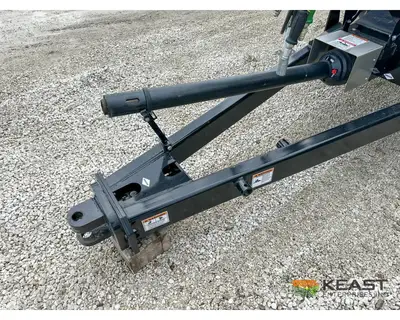

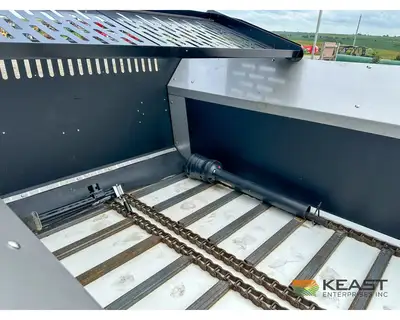

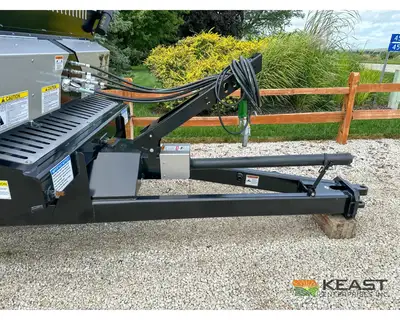

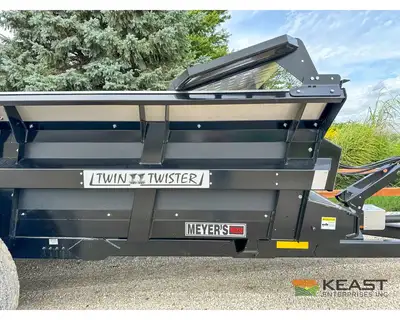

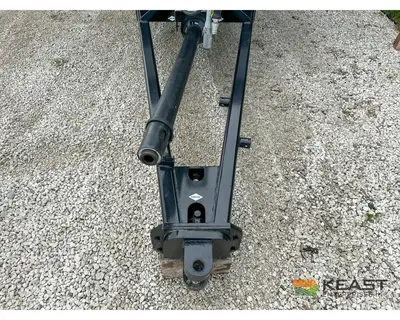

Poly floor and side panels provide sliding wear surfaces inside the box. The PTO driveline powers the beaters, while apron-speed adjustment allows the feed rate to be matched to the material.
Specifications
We can review the selected PTO speed and tractor hydraulics with you. Manure density and bedding content affect load weight and spreading, so include those details when comparing the box capacity with your daily hauling needs.

We offer the Meyers VB235 manure spreader for monthly rental. Rental equipment may be new or late-model used. A security deposit, proof of insurance, and credit check are required. Up to 100% of rental payments may apply toward the purchase of eligible equipment.

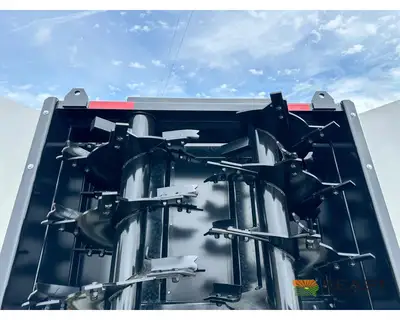

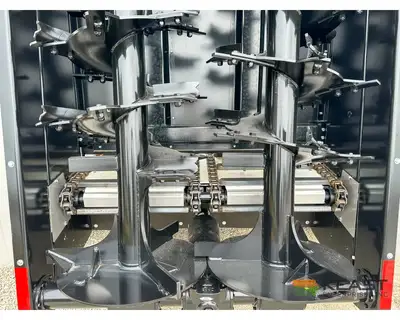

The VB235 uses a solid poly box and variable-speed apron chains to feed twin vertical beaters. The spiral flighting breaks up the material as it leaves the box, with apron speed adjusted to suit the load.
Specifications
We can match the assigned rental unit's PTO and hydraulic connections to your tractor. Include the type of manure and bedding, loader arrangement and travel between the loading site and fields when planning the rental.

Specs

Capacity: 235 ft³ struck / 390 ft³ heaped
Box Width: 61.5″
Box Length: 178″
Box Depth: 36″

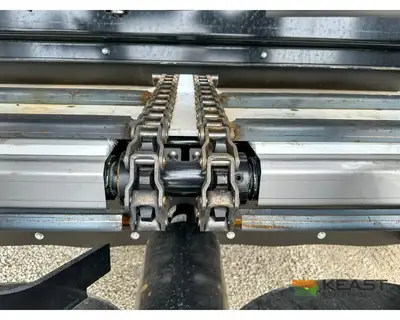

Apron Chain Speed: ~6 ft/min (dual 667XH chains)

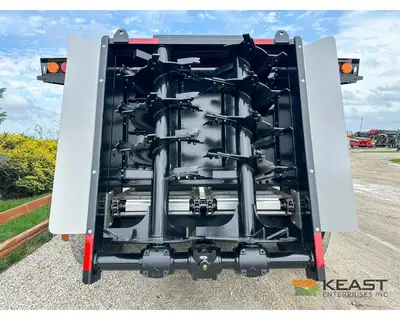

Beater Diameter: 30″ vertical twin beaters
PTO: 540 or 1,000 RPM with protective clutch

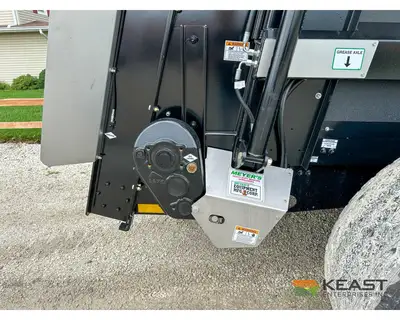

Gearbox Ratio: Inline parallel shaft, 31.4:1 reducer
Tires: 11R22.5 highway tires
Required Tractor HP: ~135 HP
Empty Weight: ~9,200 lb (single axle)
