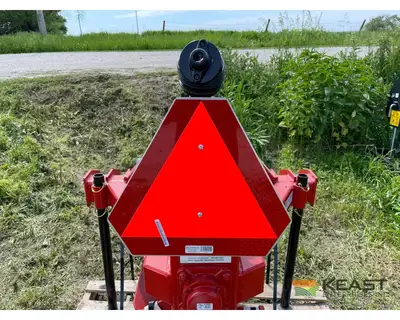

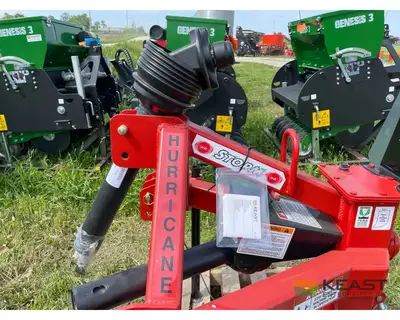

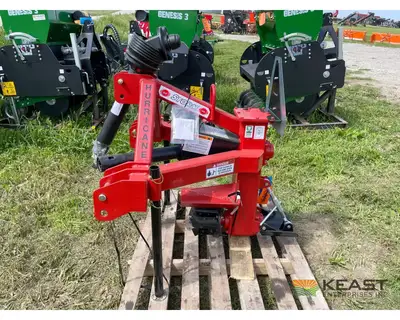

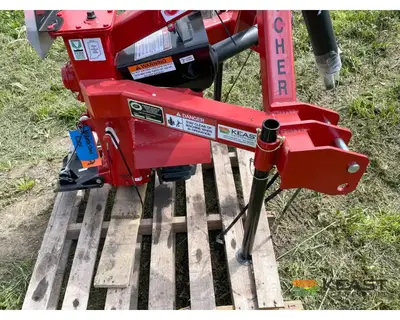

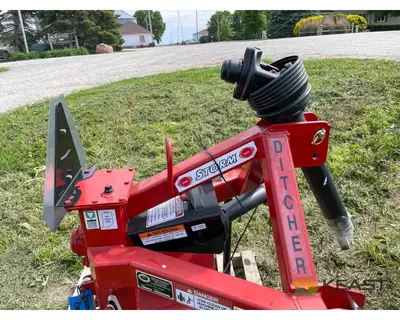

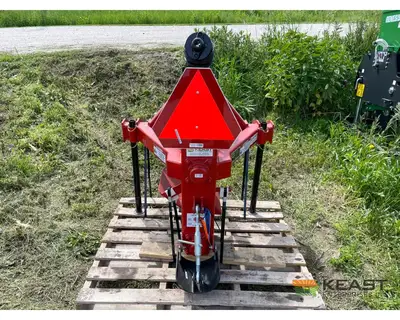

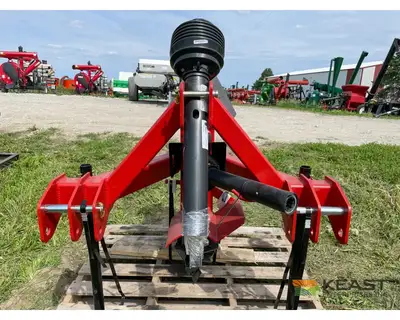

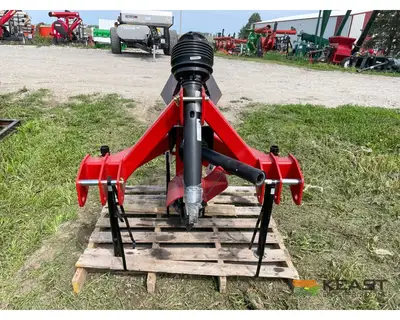

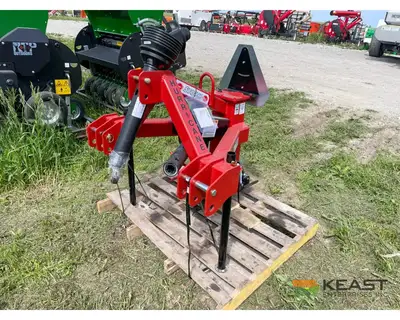

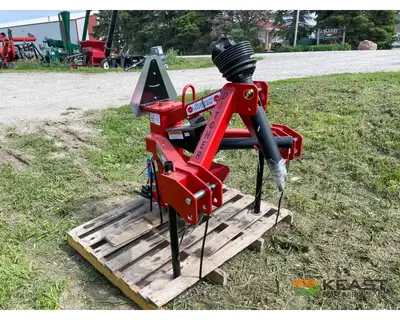

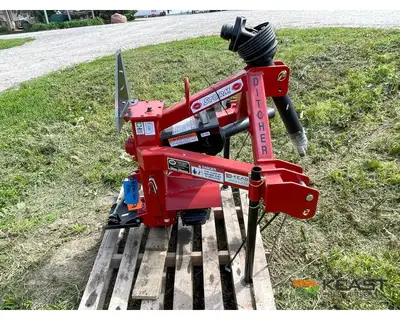

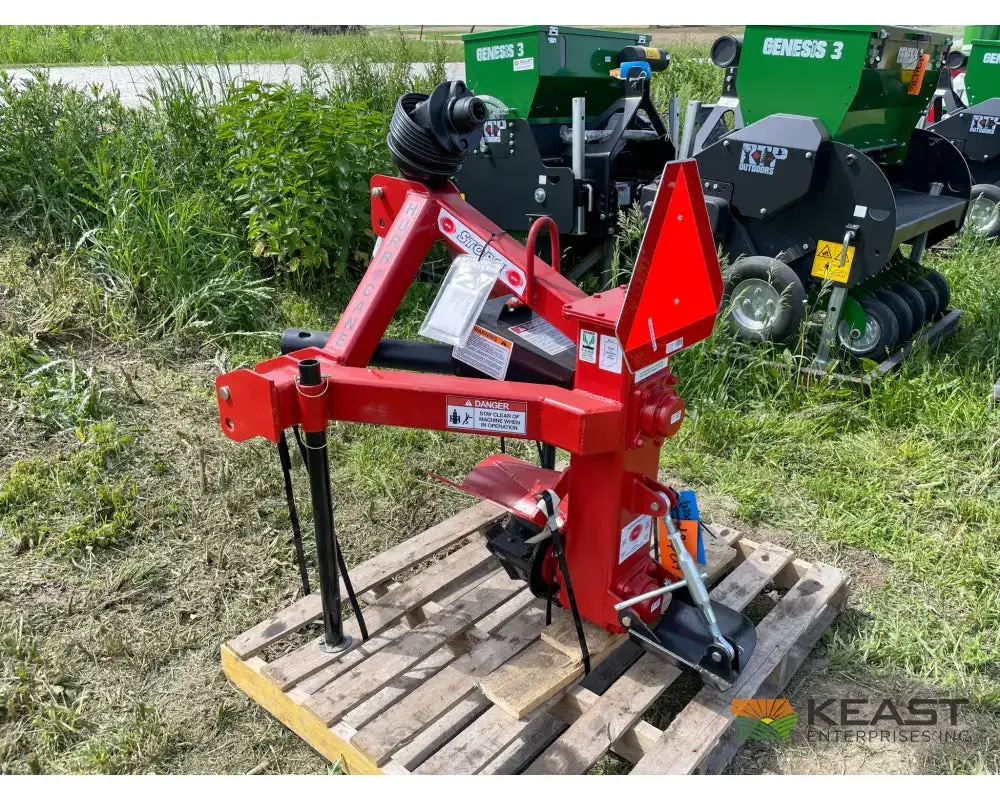

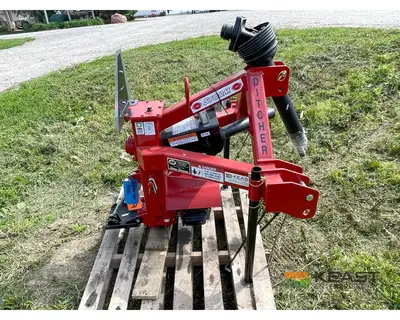

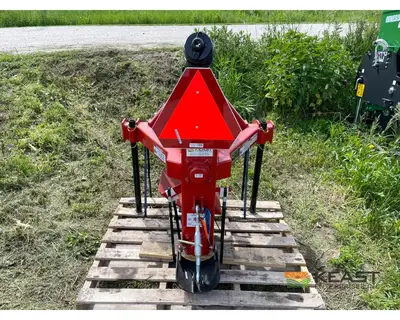

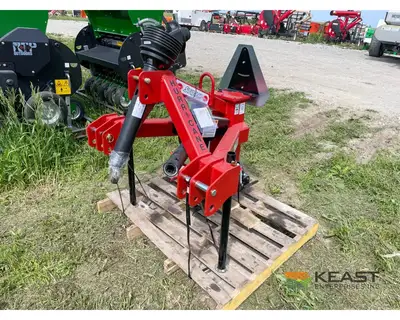

Hurricane Ditcher Storm Rotary Ditcher, 12" Impeller, 30-100 HP

Iowa, United States
Asking Price
USD $6,961.00
1 available
609Listings|4Followers
Overview
Trenchers

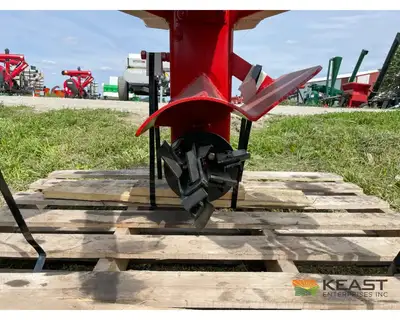

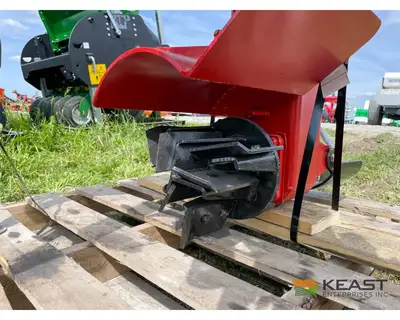

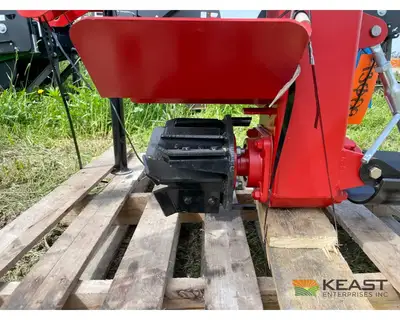

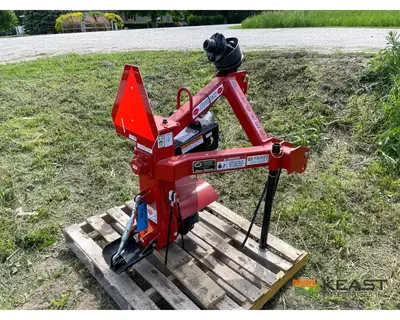

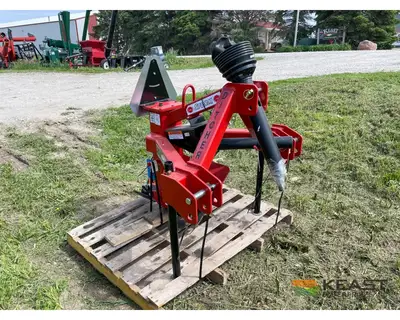

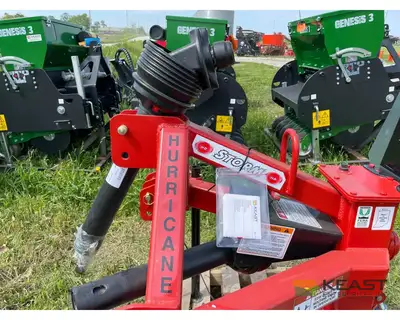

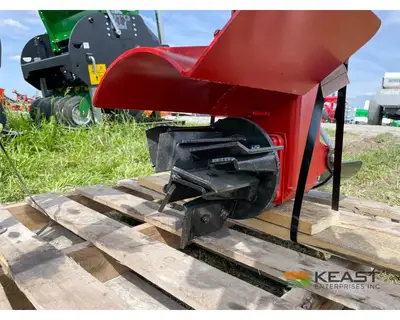

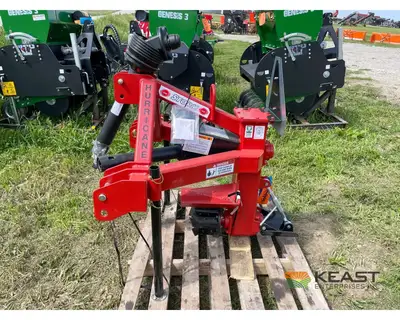

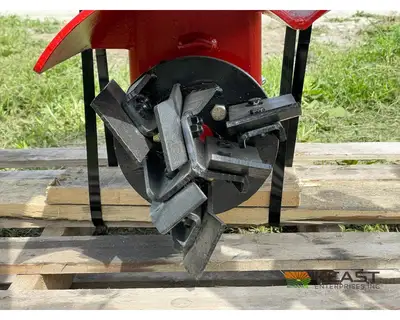

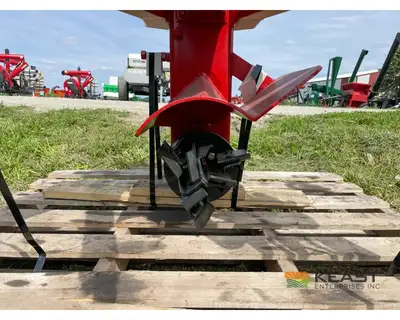

The Hurricane Storm is a compact three-point ditcher for shallow surface drains and irrigation channels. This version has the 12-inch, eight-paddle impeller, with separate cutting and cleanout paddles to cut the channel and move soil out of it.

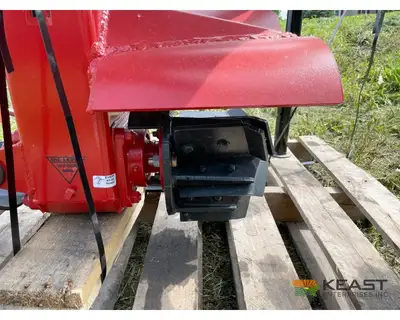

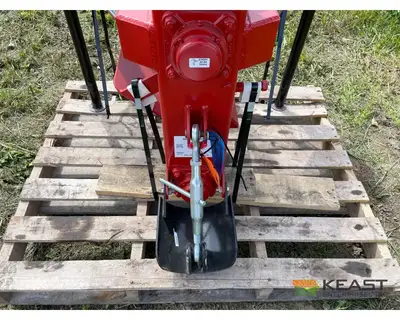

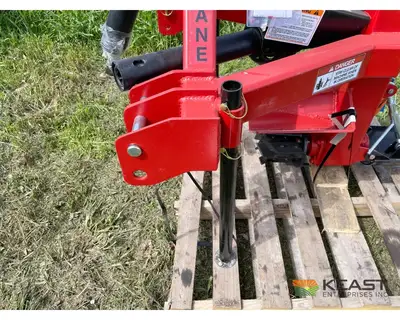

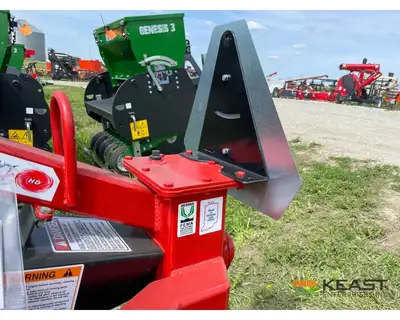

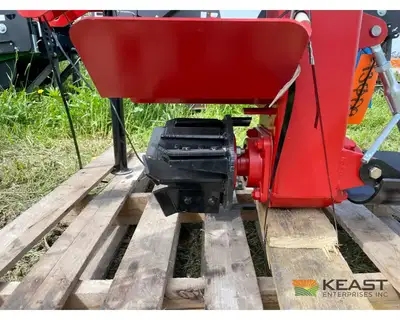

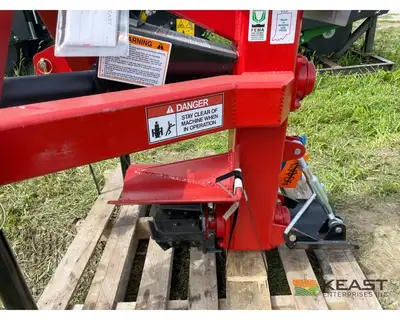

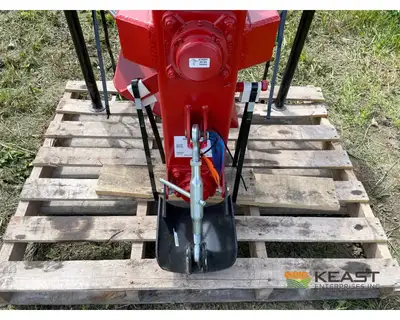

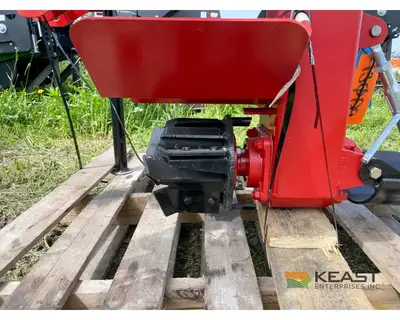

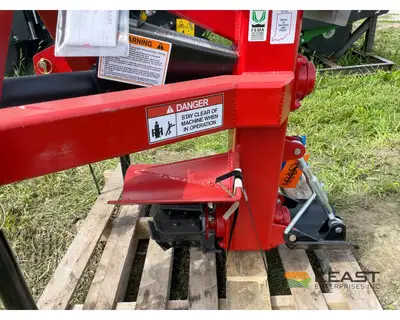

The rear drag plate supports the ditcher through the cut and helps reduce gouging. A heavy-duty ratchet jack adjusts the plate. The listed machine uses a 540 RPM PTO and fits a Category I or II quick hitch, making it a practical option for compatible compact and utility tractors.
Specifications
An 8-inch wheel is available for a narrower channel. We can help choose the wheel for your drainage work and check tractor horsepower, hitch geometry and PTO shaft length. Use the machine's rated PTO speed and keep the discharge area clear of people, vehicles and nearby property.

Specs

PTO: 540 RPM
Horsepower Requirement: 30-100 HP

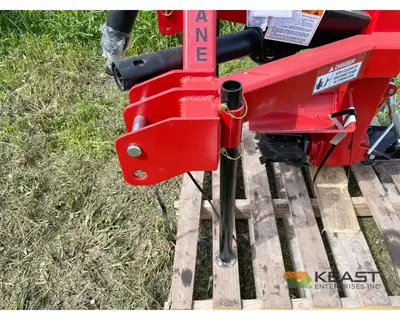

Hitch Type: Category I or II quick hitch
Impeller Wheel Options: 12-inch, eight-paddle wheel on this version; 8-inch wheel available separately

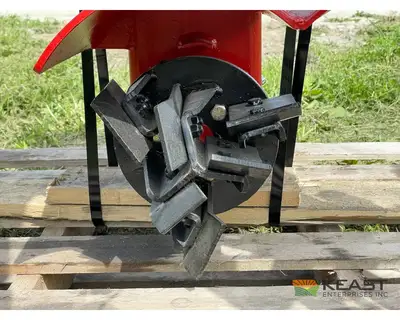

12" Wheel Paddle Layout: 4 T1 cutting paddles, 4 cleanout paddles
Depth Of Cut: Up to 5 inches in a single pass; soil and tractor setup affect working depth
Weight: Approx. 400-450 lb
Rear Shoe / Drag Plate: Includes heavy-duty ratchet jack
