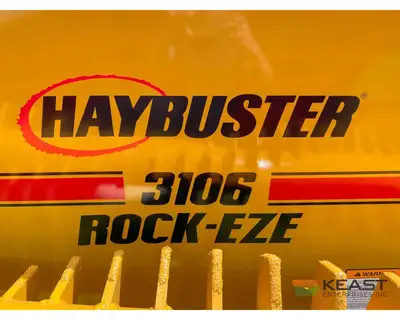

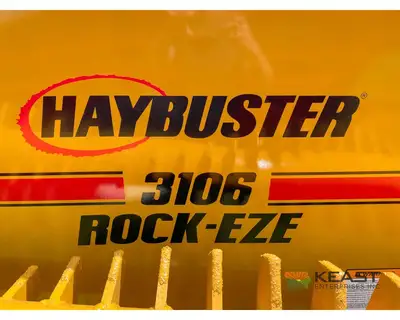

Haybuster 3106 Rock-Eze Rock Picker, 1 Cu Yd Capacity, 84" Dump Height

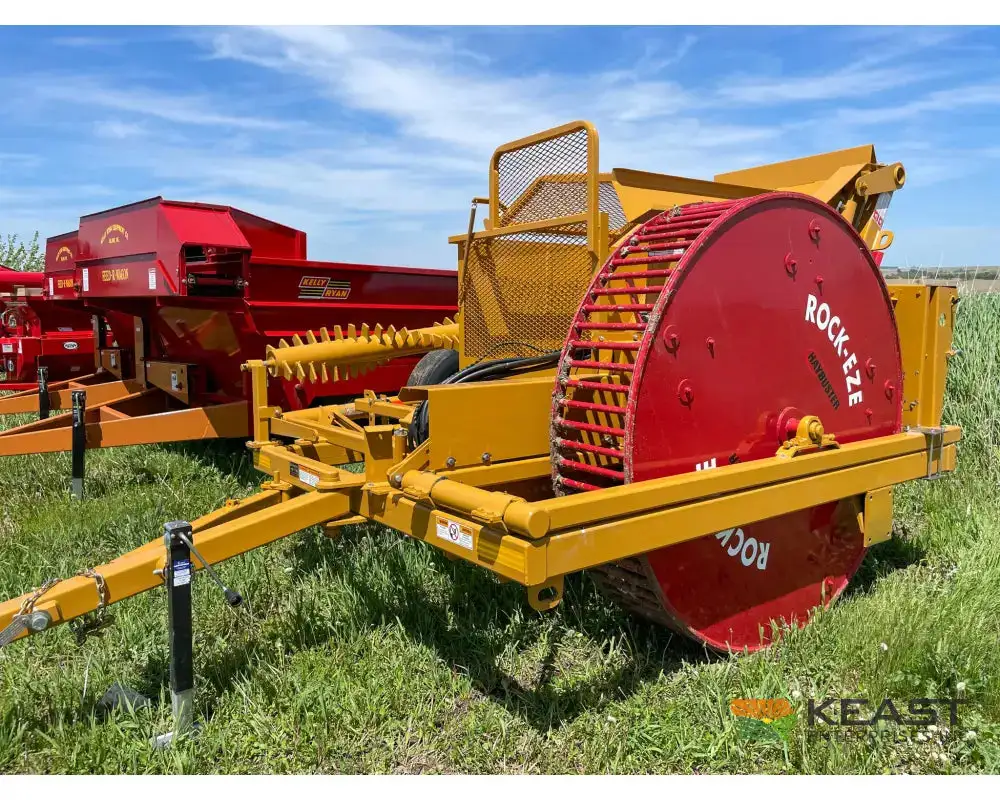

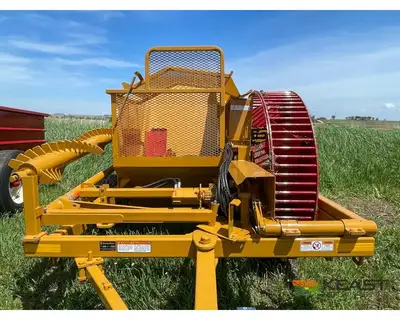

The Haybuster 3106 Rock-EZE combines windrowing and rock picking in one pass. It covers a 10-foot path, handles rocks from 2 to 15 inches in diameter, and carries approximately one cubic yard in the hopper.

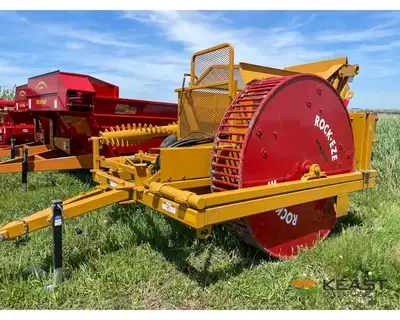

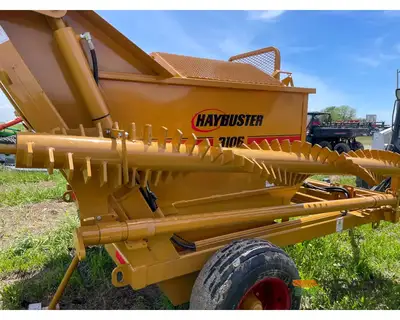

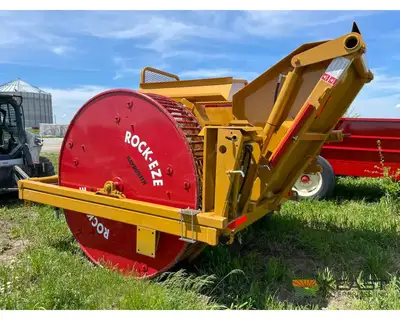

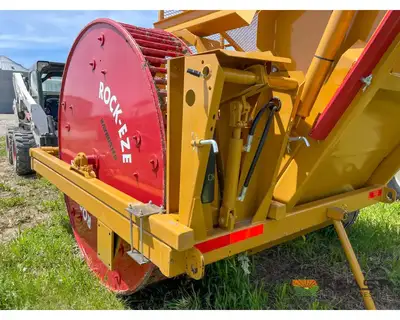

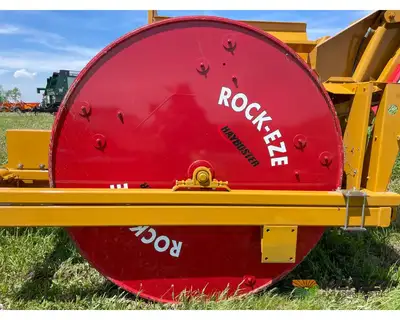

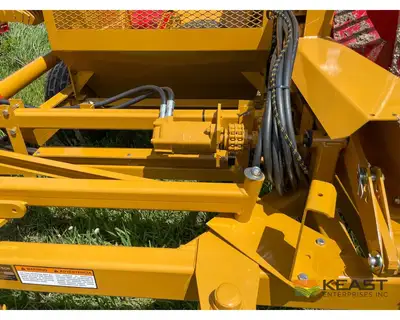

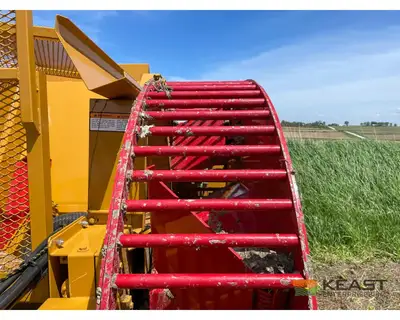

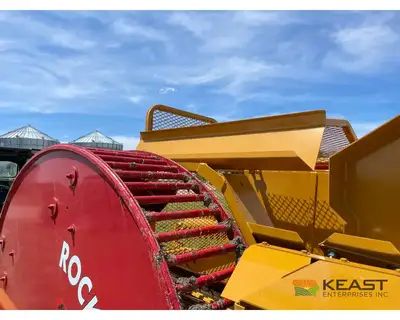

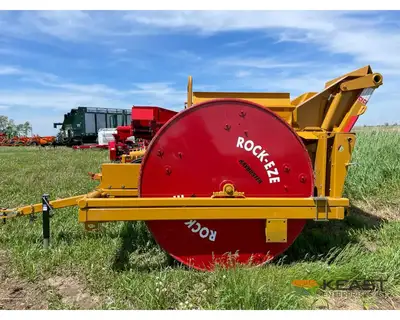

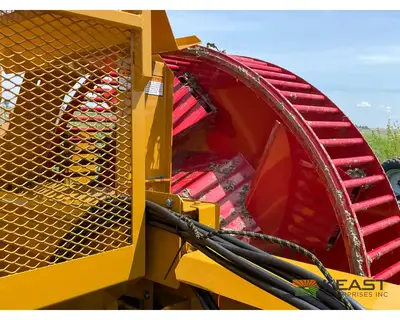

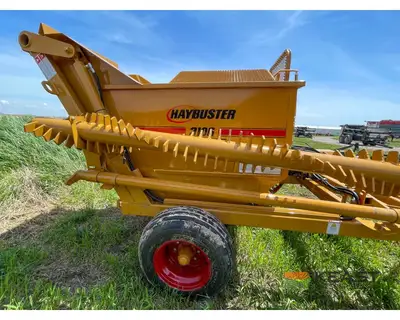

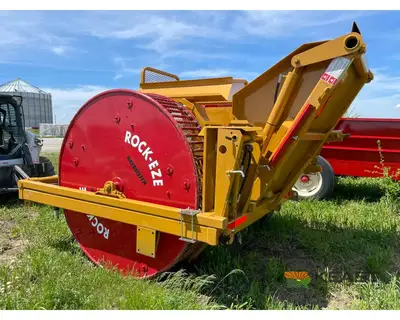

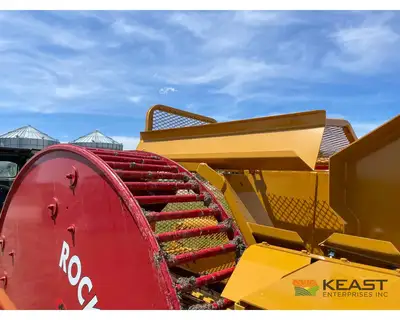

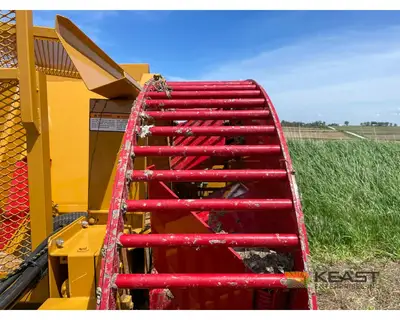

A hydraulically driven windrower moves rocks toward the ground-driven picking wheel. Spring-loaded paddles lift the rocks into the hopper while allowing soil to fall through. Hard-faced windrower teeth and replaceable grate teeth are designed for repeated field use.
Haybuster 3106 Features
10-Foot Picking Path: The windrower and rock wheel cover a 10-foot path in each pass.
2- to 15-Inch Rock Range: The picking system is designed for rocks from 2 to 15 inches in diameter.

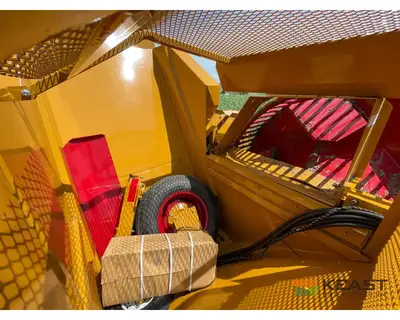

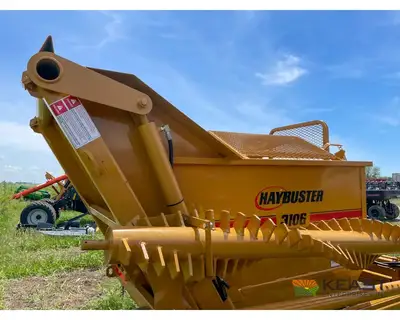

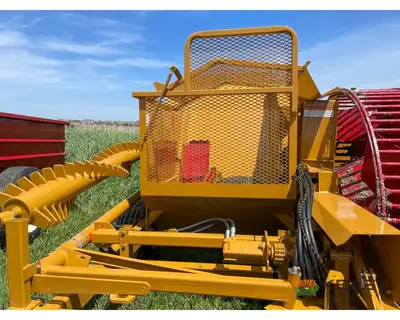

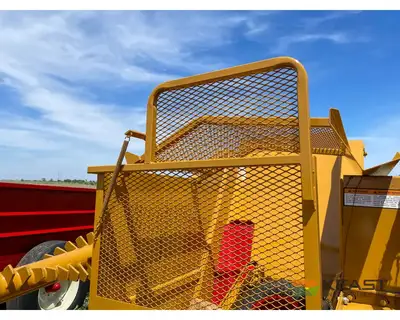

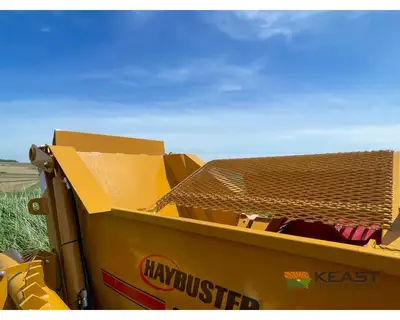

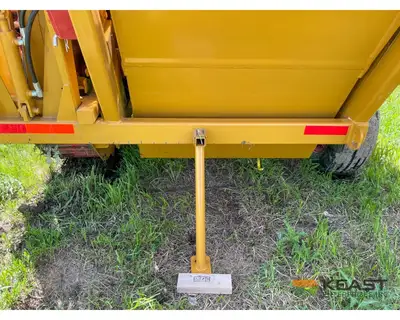

One-Cubic-Yard Hopper: The hopper carries approximately one cubic yard before unloading.

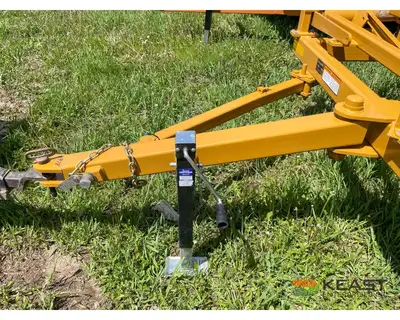

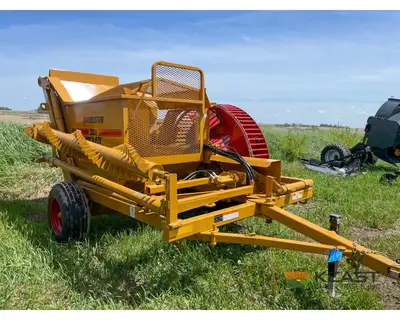

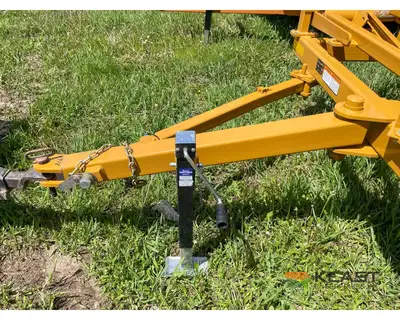

Field and Transport Hitch Positions: The swing hitch moves between field and transport positions.

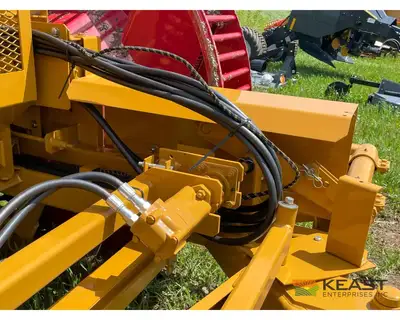

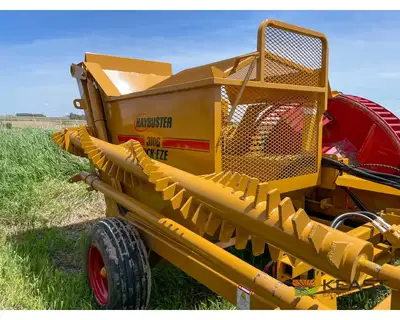

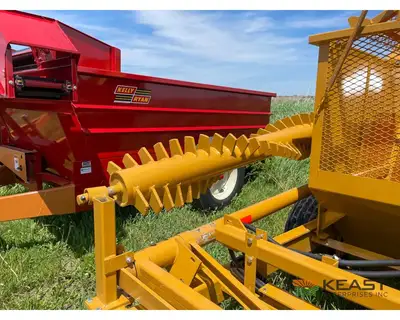

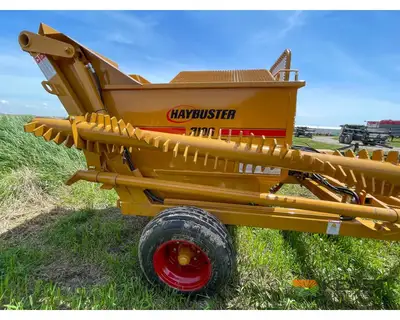

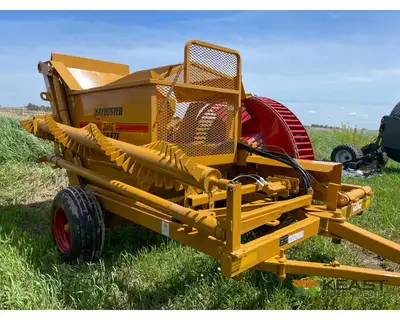

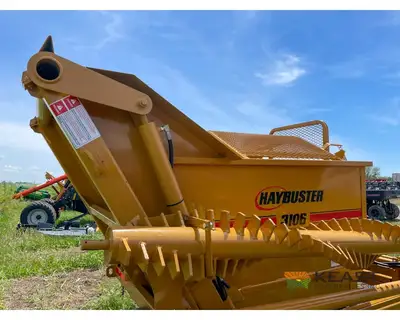

Hydraulic Windrower: The windrower is hydraulically driven and uses hard-faced teeth.
Technical Specifications
