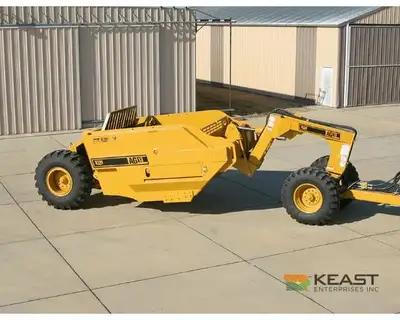

Icon AG13 13 Yard Ejection Scraper, 8' Working Width, Replaceable Cutting Edge
Overview
Overview
The Icon AG13 Ejection Scraper moves up to 13 cubic yards of material in a single pass for land leveling, driveway maintenance, and field prep. It clears an 8-foot cutting width and uses a front-lowering ejection wall with a swing-wall system to push material cleanly and quickly.
Key Features
13-Yard Capacity: The bowl has a 13.1-cubic-yard heaped capacity.

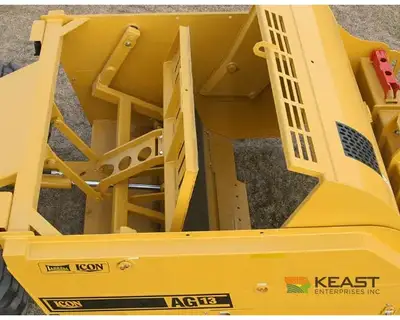

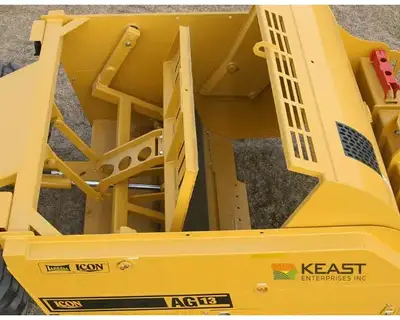

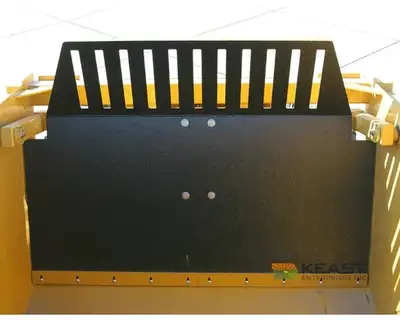

Clean Swing-Wall Ejection: Pushes loads out smoothly using a patented swing-wall design.

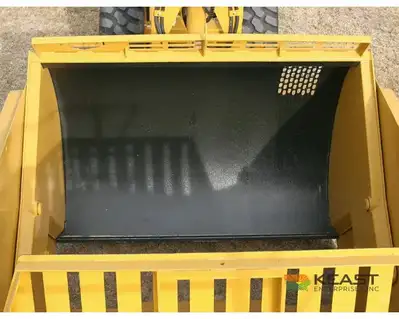

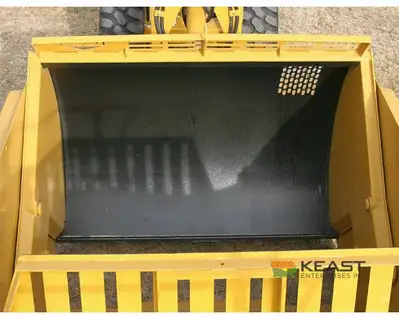

Epoxy Coated Interior: Resists dirt, clay, and wet material from sticking during ejection.
Traction-Assisting Dolly: Front weight-transfer wheel helps stabilize and improve pull performance when loading.
Transport and Hitch: Includes 20″ ground clearance, elevated sidewalls, and swivel pintle hitch for transport.
Technical Specifications
Specs
Working Width: 8 ft
Heaped Capacity: 13.1 cu yd
Struck Capacity: 11.4 cu yd
Weight: Approx. 18,490 lb
Ground Clearance: 22 in (559 mm)
Transport Width: 9 ft 1 in (2.8 m)
Transport Height: 8 ft 8 in (2.6 m)

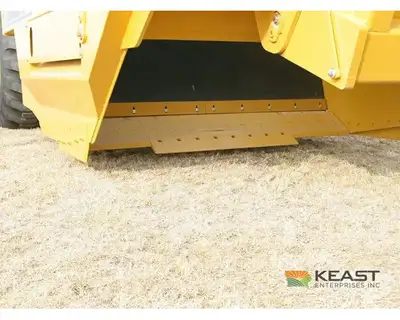

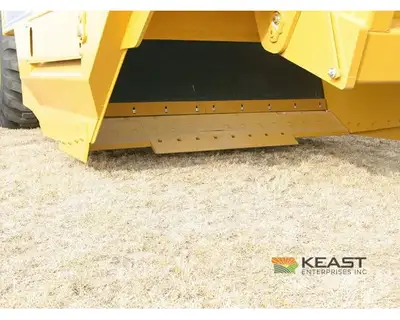

Cutting Edge: Replaceable CAT-style segments

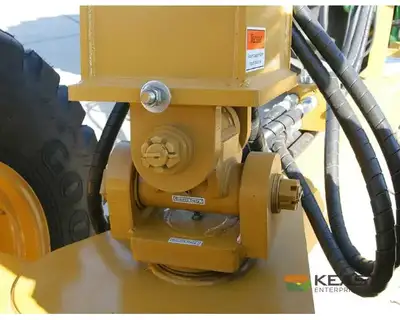

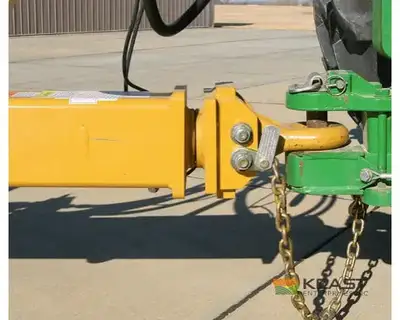

Hitch: 360° swivel pintle hitch

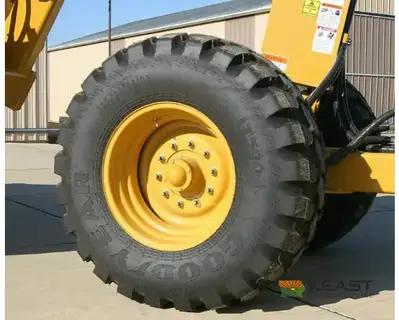

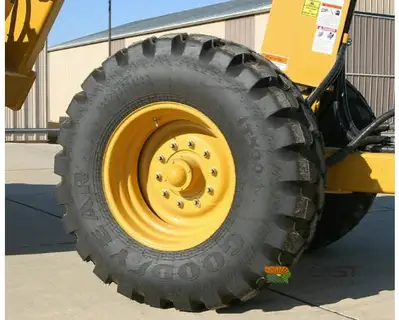

Tires (Front / Rear): 500/70R × 24 / 20.5L × 25
Wheel Hubs (Front / Rear): 10-bolt 12,000 lb / 10-bolt 20,000 lb

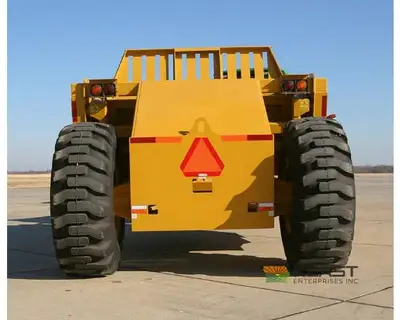

Standard Safety Equipment: SMV emblem, safety chains, LED lights
