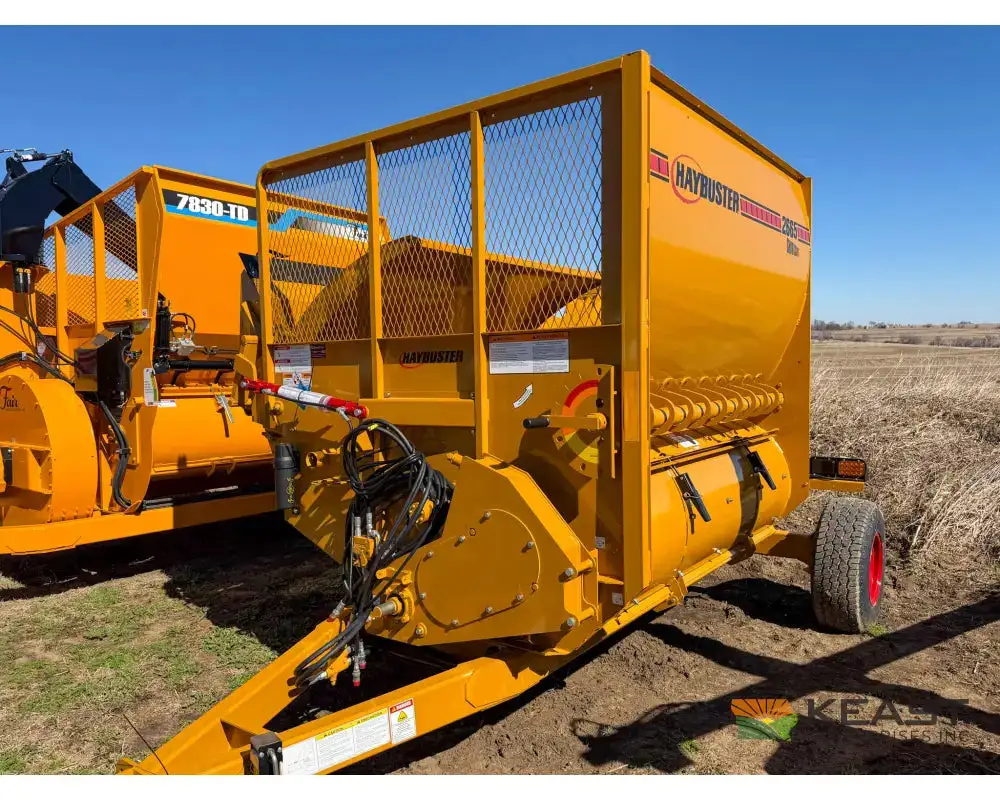

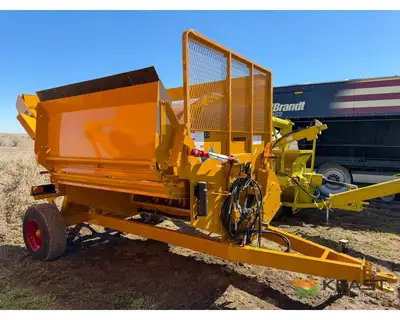

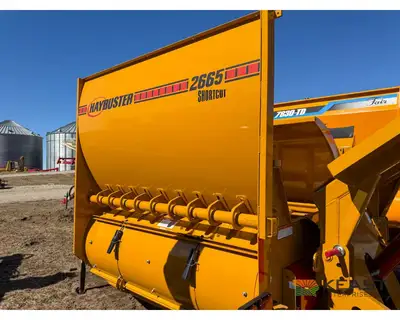

Haybuster 2665 Shortcut Bale Processor, Hydraulic Deflector

Iowa, United States
Asking Price
USD $33,846.00
1 available
608Listings|6Followers
Overview
Bale Choppers - Feeders

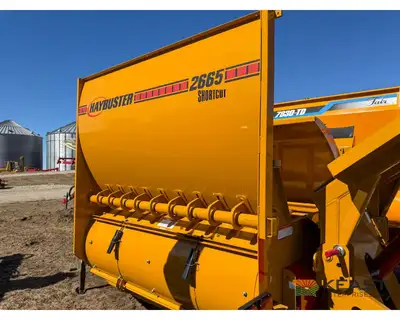

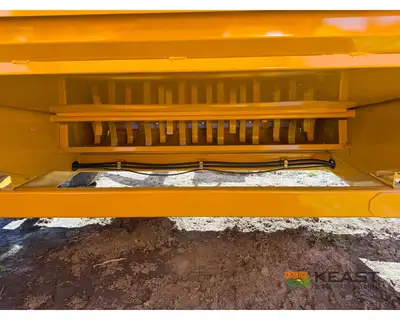

The Haybuster 2665 Shortcut uses the same two-bale layout as the 2660 but adds more cutting action for operators who want shorter processed material. Its 40 flails, nine slug bars, three stripper channels, and 1,300 RPM rotor are designed to produce a finished length of roughly two to four inches for feeding, bedding, and erosion-control work.

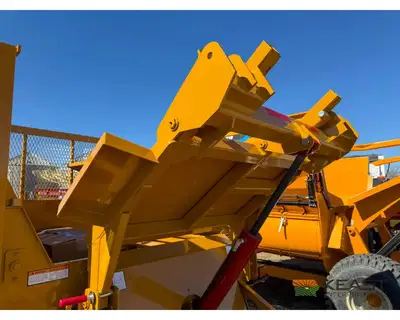

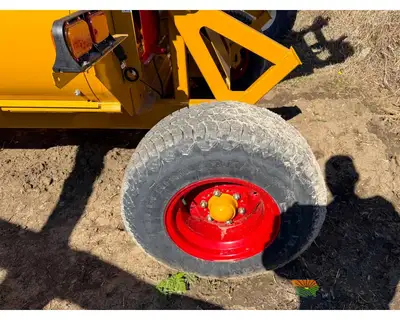

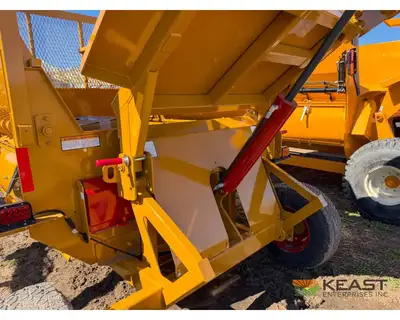

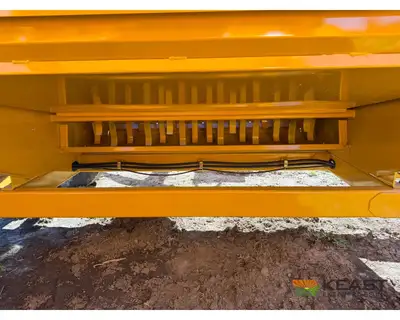

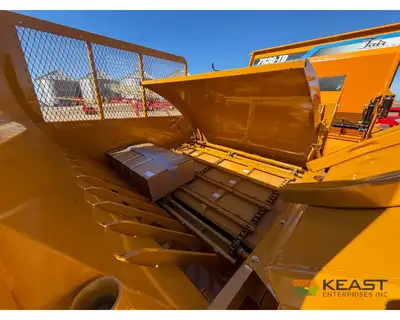

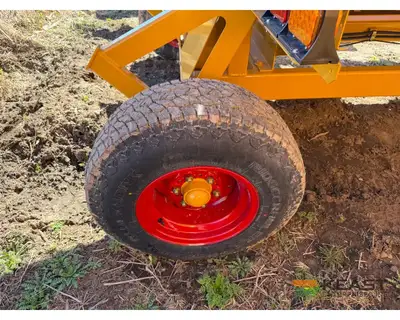

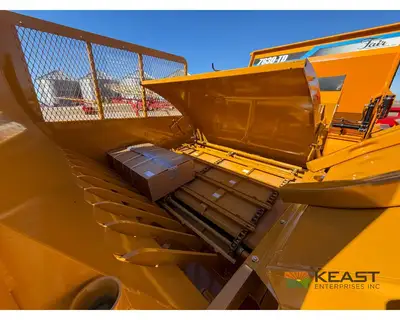

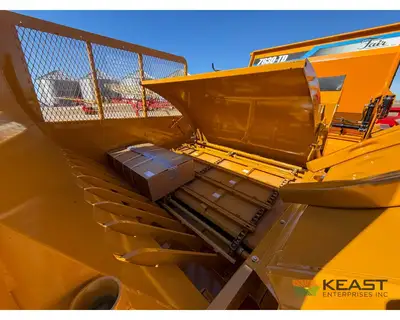

One bale runs in the chamber while a second rides on the two-stage loader. A three-chain slat conveyor keeps the bale against the slug bars as the rotor works through it. This listed configuration includes a CV PTO driveline, highway tires, and a hydraulic right-side deflector.
Specifications

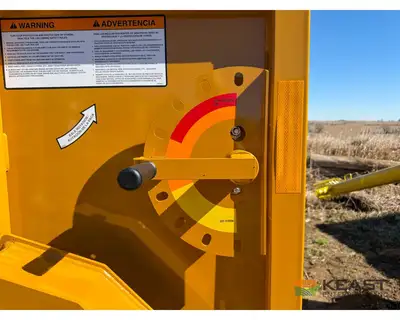

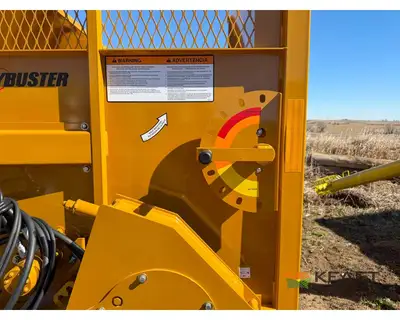

The shorter cut comes from the 2665's rotor, flail, slug-bar, and stripper arrangement rather than the deflector. Tractor PTO power, bale type and moisture, slug-bar position, and conveyor speed all affect how quickly the bale processes and how uniform the finished material will be.

Specs

Finished material: Approximately 2 to 4 in.
Bale capacity: Two round bales; one in chamber and one on loader
Maximum bale weight: 2,200 lb. each
Rotor: 78 in. long; 1,300 RPM
Flails: 40 swinging flails
Slug bars and stripper channels: Nine slug bars; three stripper channels
PTO power range: 65 to 155 HP
PTO: 1,000 RPM; listed with CV driveline
Minimum hydraulic output: 8 GPM at 1,500 PSI
Hydraulic controls: Two double-acting tractor valves
