Icon AG11 11 Yard Ejection Scraper, 8' Working Width, Replaceable Cutting Edge
Overview

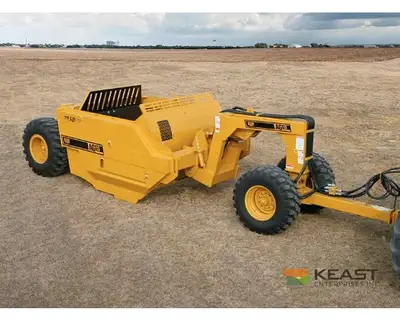

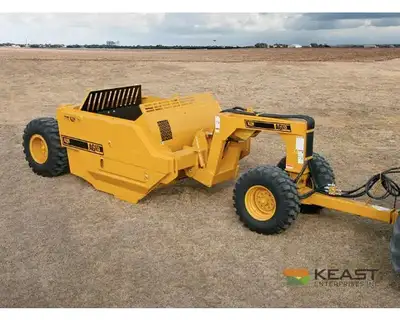

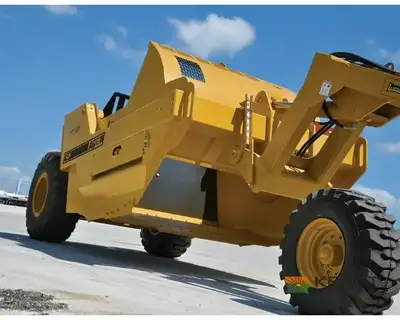

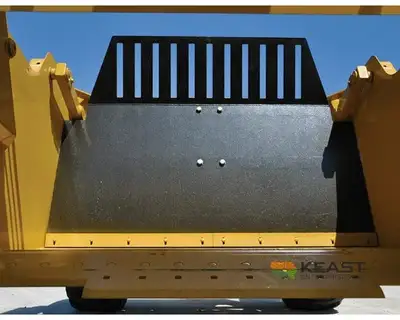

The Landoll Icon AG11 is a pull-type ejection scraper for drainage, land leveling, and building fills. Its push-off wall unloads material through the lowered front opening, allowing the operator to spread a load without tipping the bowl.

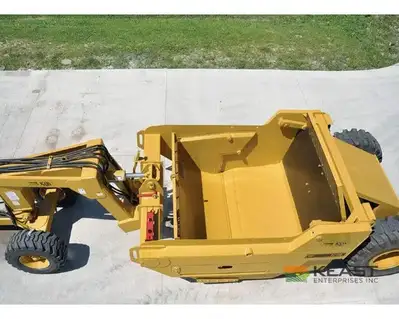

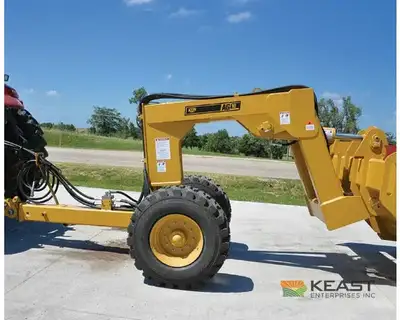

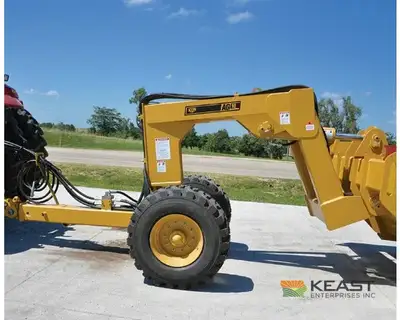

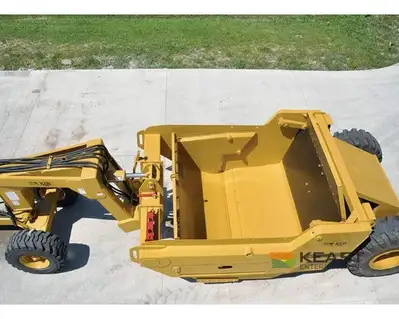

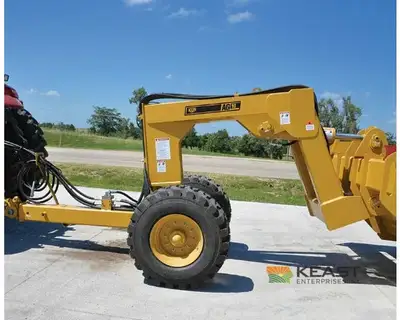

Replaceable CAT-style cutting-edge segments make it possible to service individual wear sections. The epoxy-coated bowl interior helps material release, and the front dolly supports the scraper through the swivel pintle hitch.
Specifications
The heaped and struck capacities describe different fill levels, so use the same measure when comparing scrapers. We can help check the tractor's drawbar, hydraulics, and loaded-scraper suitability for your soil and terrain.
Specs
Working Width: 8 ft
Heaped Capacity: 11.2 cu yd
Struck Capacity: 9.1 cu yd
Weight: Approx. 17,612 lb
Ground Clearance: 20 in. fully raised
Transport Width: 9 ft 1 in (2.8 m)
Transport Height: 8 ft 8 in (2.6 m)
Cutting Edge: Replaceable CAT-style segments

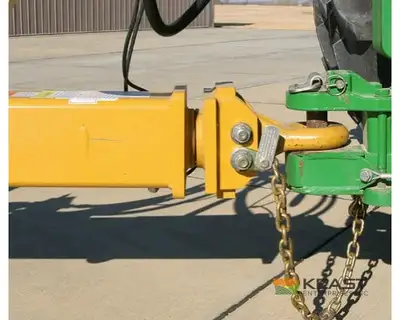

Hitch: 360° swivel pintle hitch
Tires (Front / Rear): 500/70R × 24 / 20.5L × 25
Wheel Hubs (Front / Rear): 10-bolt 12,000 lb / 10-bolt 20,000 lb
Standard Safety Equipment: SMV emblem, safety chains, LED lights
Overall length: 29 ft.
