John B.M. T-2000LM Load Master Dump Trailer, 20-Ton Capacity
Overview

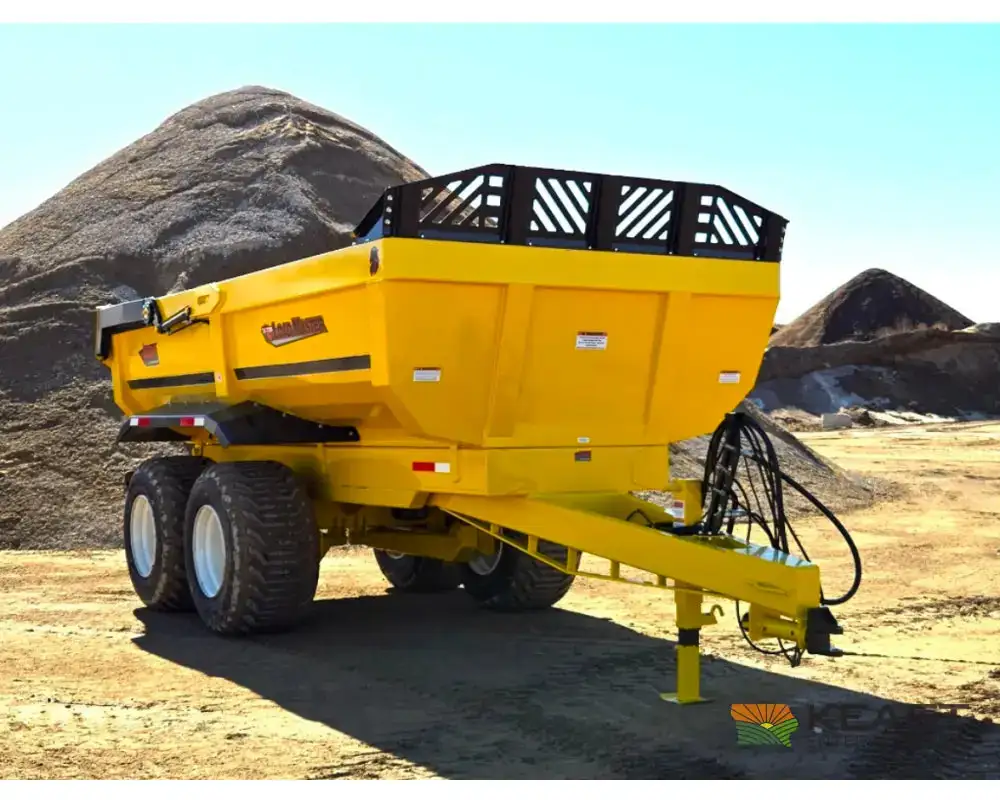

The John B.M. T-2000LM Load Master is a 20-ton pull-type dump trailer for rock, gravel, construction material, demolition debris, manure, and other heavy bulk loads. Its 14-cubic-yard box measures 8 feet wide by 16 feet long with 3-foot sides. The box and deck are built from 3/16-inch Hardox 500 Tuf wear-resistant steel.
Hoist, Tailgate, and Running Gear
A six-stage underbody telescopic cylinder raises the box and is mounted to accommodate movement when dumping on uneven ground. The hydraulic tailgate opens 3 feet 7 inches above the sides. Tandem axles with two-wheel hydraulic disc brakes, 16,000-pound spindles and 10-bolt hubs, and 600/50 x 22.5 flotation tires support the trailer under load.
John B.M. T-2000LM Specifications
Included Equipment
The manufacturer lists hydraulic hoses, two Grade 70 safety chains, an LED light kit, hose keeper, removable fenders, and a stone guard as standard equipment on the 20-ton Load Master.
Before Ordering
Confirm tractor drawbar compatibility, hydraulic pressure and couplers, loaded trailer weight, and road-lighting and braking requirements. Contact us at [email protected] for pricing, delivery information, and help reviewing the T-2000LM configuration.
Availability is limited to IA, KS, NE, MI, CO, IL, NM, OK, TX, and AR.
Specs
Rated capacity: 20 tons
Box capacity: 14 cu yd
Box dimensions: 8 ft wide x 16 ft long x 3 ft sides
Box and deck material: 3/16 in Hardox 500 Tuf wear-resistant steel
Hoist: Six-stage underbody telescopic cylinder
Tailgate: Hydraulic; opens 3 ft 7 in above the sides
Axles and brakes: Tandem axle with two-wheel hydraulic disc brakes
Hubs and spindles: 16,000 lb each; 10-bolt
Tires: 600/50 x 22.5, 16-ply flotation
Hitch: Swivel clevis
Jack: 12,000 lb drop-leg
