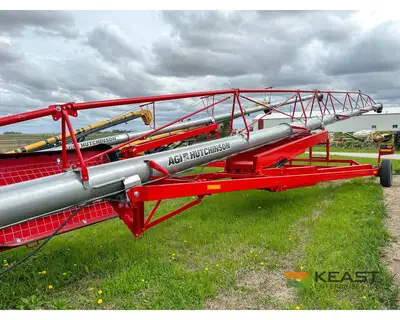

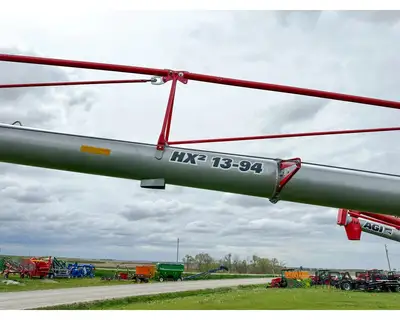

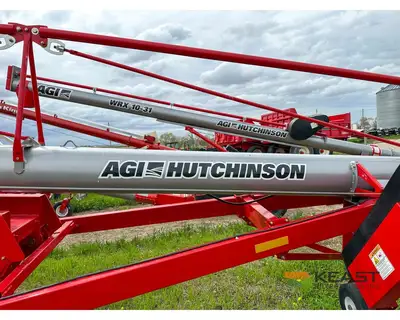

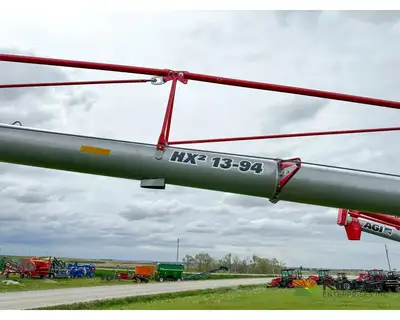

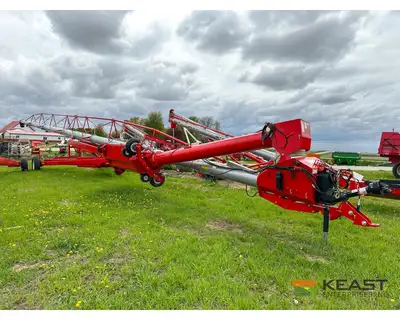

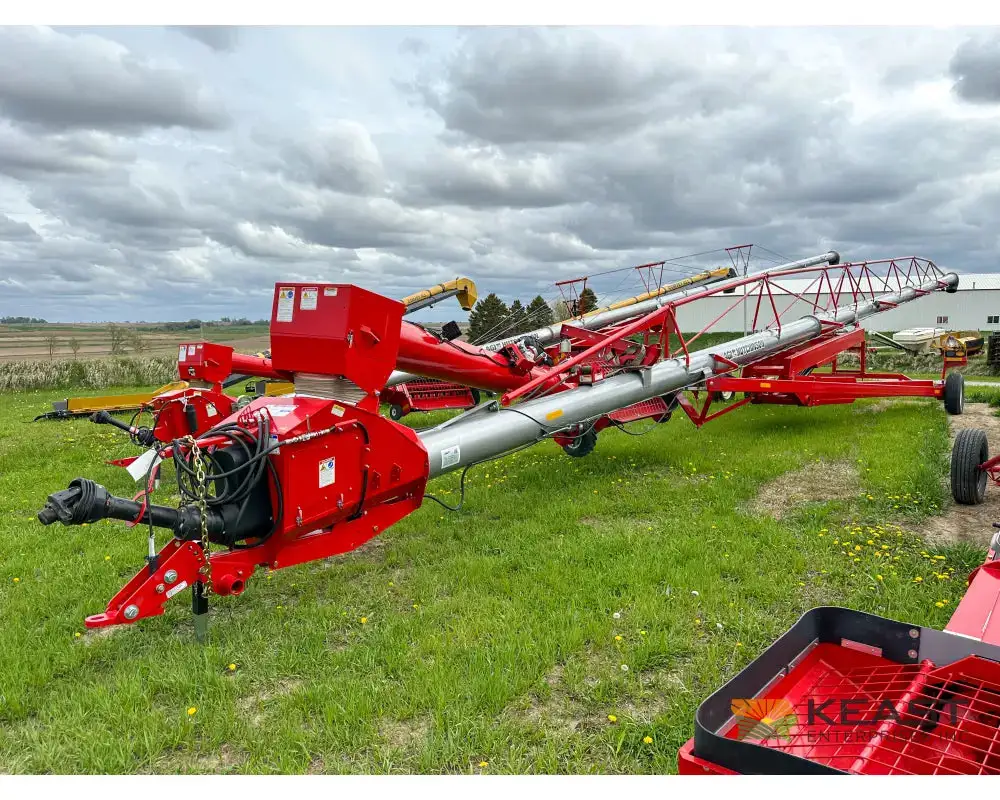

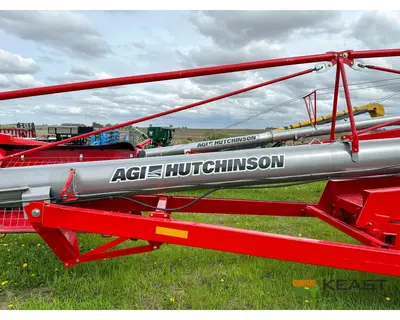

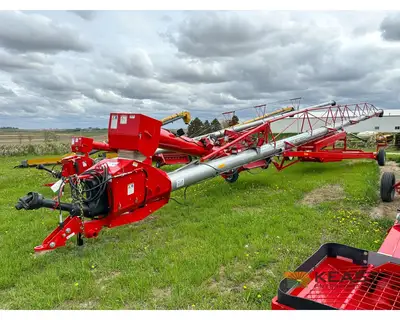

Hutchinson HX2 13-94 Swing-Away Auger, 13" x 94', Scissor Lift

Iowa, United States
Asking Price
USD $46,224.00
1 available
608Listings|6Followers
Overview
Augers

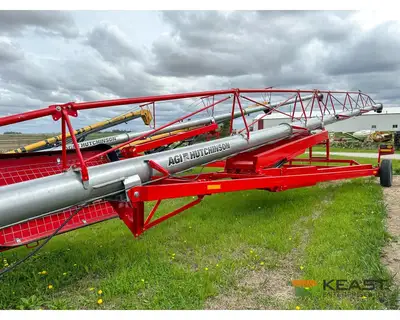

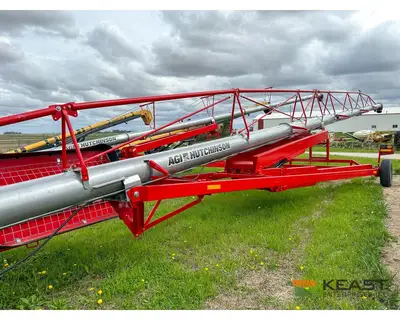

The Hutchinson HX2 13-94 is a 94-foot swing-away grain auger with a 13-inch tube and scissor-lift undercarriage. AGI rates the HX2 13-inch series at up to 11,000 bushels per hour for bin filling, with actual output depending on the grain, moisture, and operating angle.

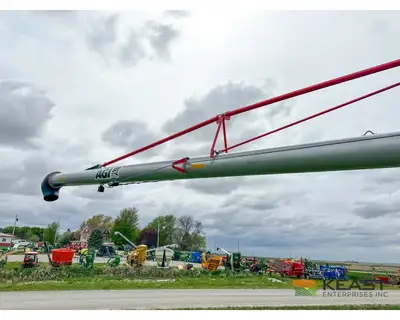

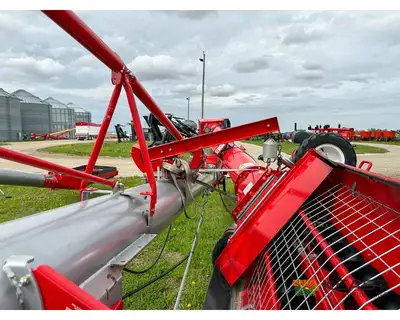

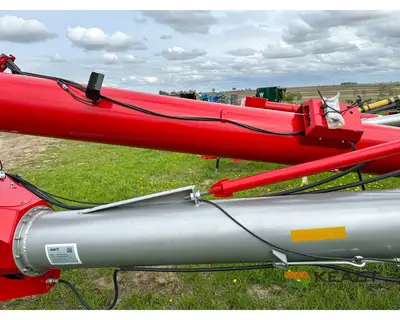

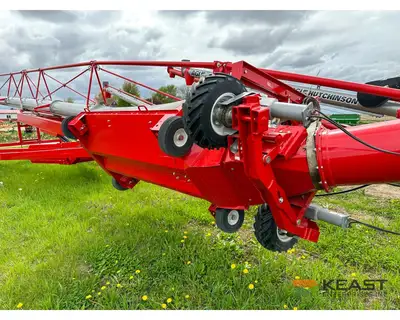

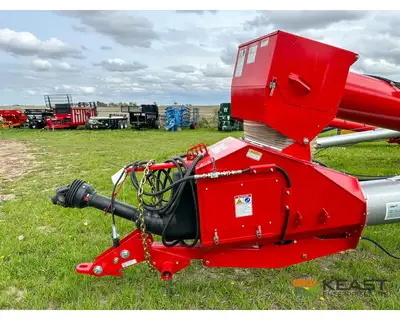

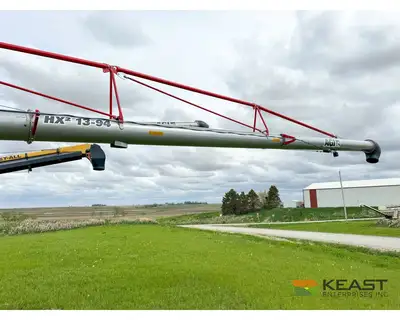

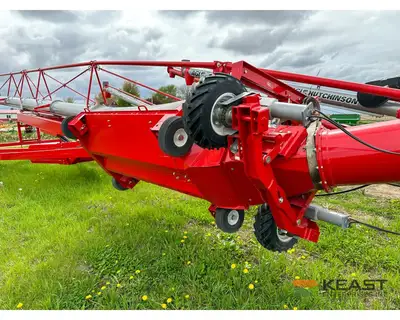

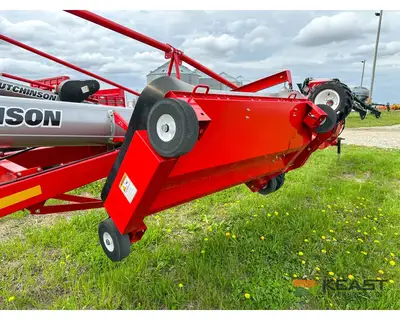

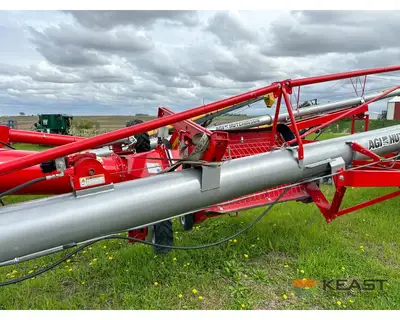

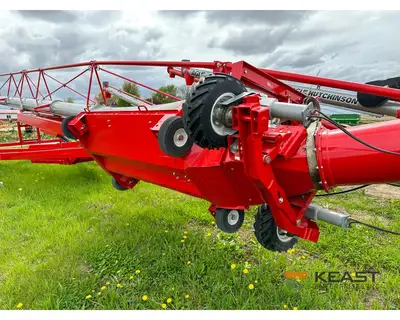

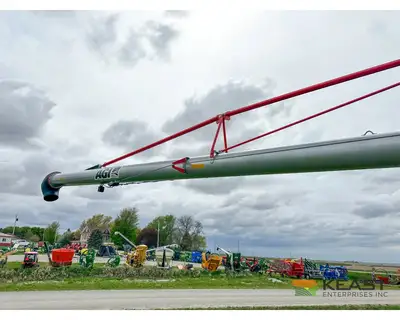

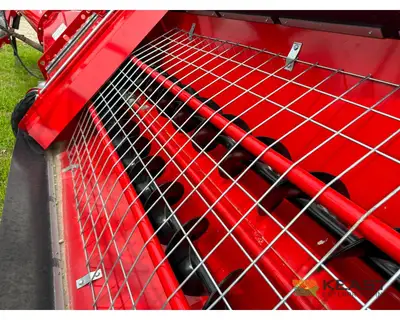

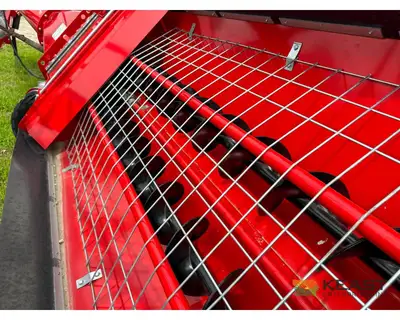

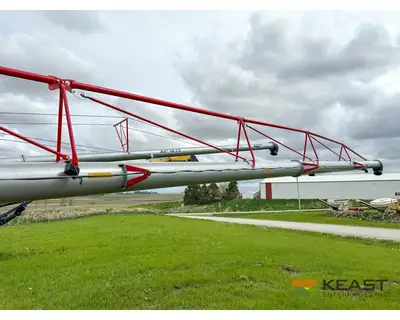

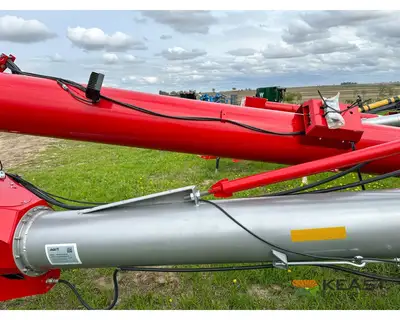

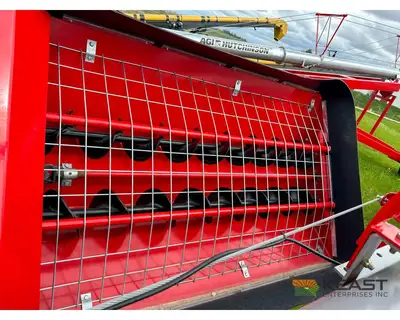

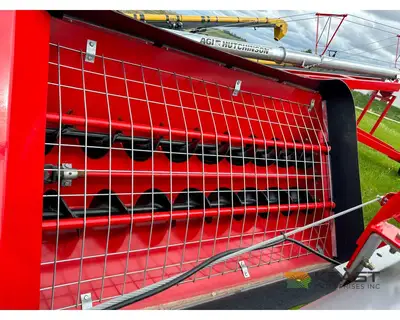

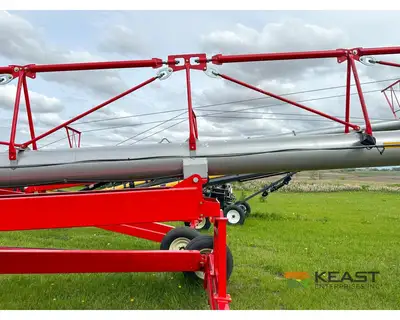

Rigid steel tube trussing supports the long auger, and two hydraulic cylinders raise the main tube. Abrasion-resistant flighting protects critical wear points in the hopper, transition, incline tube, and boot. The low-profile hopper measures 10 inches high in AGI’s standard configuration, making trailer clearance a useful measurement when planning the unloading area.
Specifications

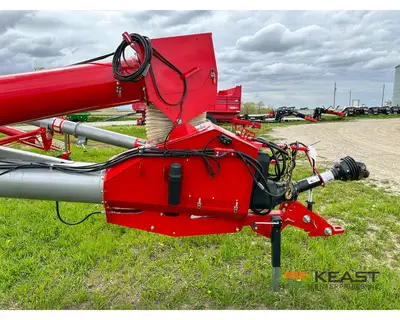

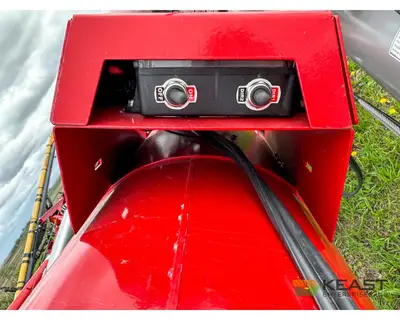

The dimensions and power range above follow AGI’s current HX2 model chart. Use its height-and-reach diagram to place the discharge at the bin inlet and allow room for the scissor frame and truck. Electric and hydraulic hopper movers are available options; the quote should state which mover and winch are supplied.

Specs

Tube diameter: 13 in.
Auger length: 94 ft.
Series capacity: Up to 11,000 bu./hr.

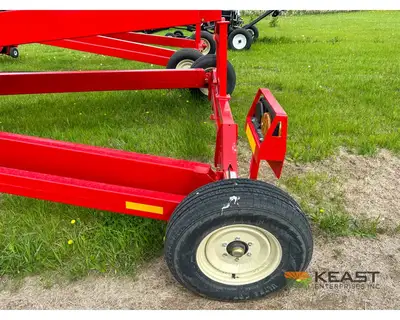

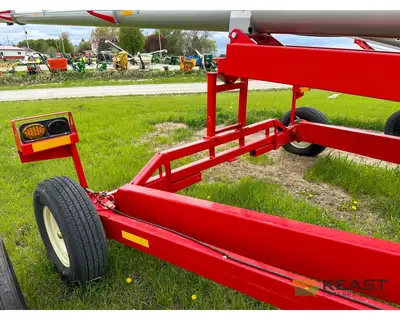

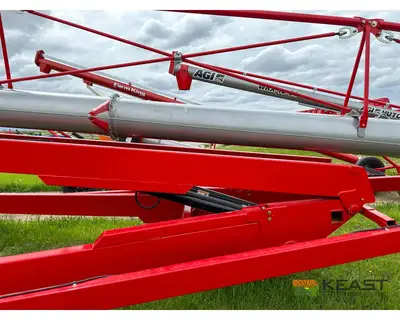

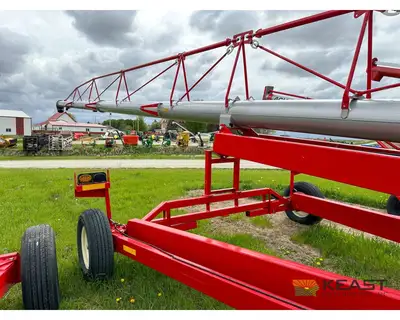

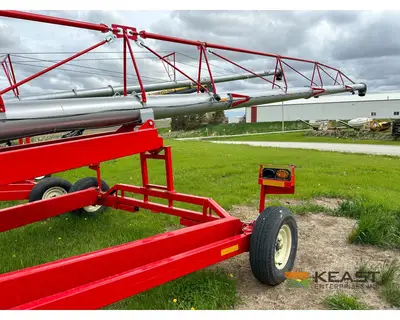

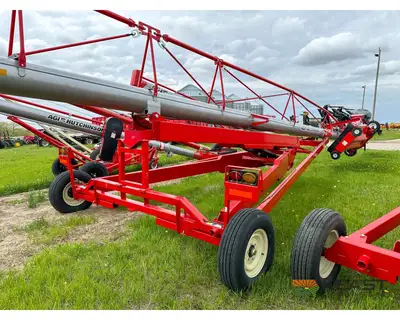

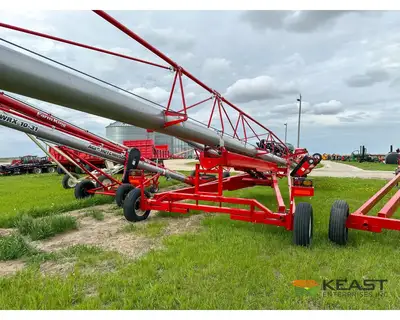

Undercarriage: Scissor lift

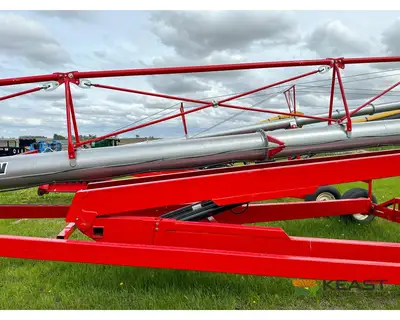

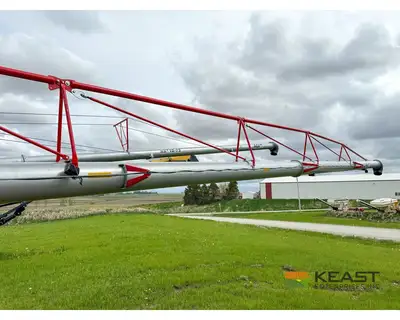

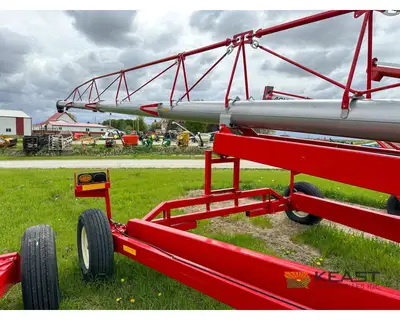

Tube support: Rigid steel trussing
Standard hopper length / width / height: 60 / 40 / 10 in.
Manufacturer power range: 125–165 HP with dry wheat
Hydraulic pressure to raise auger: 2,050 PSI
Transport height: 12 ft. at an 18 in. hitch height
