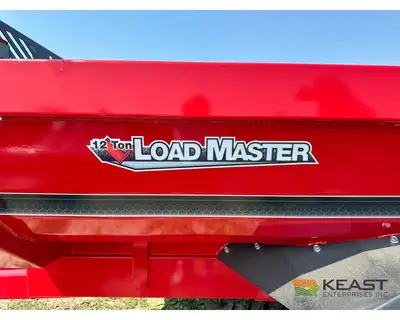

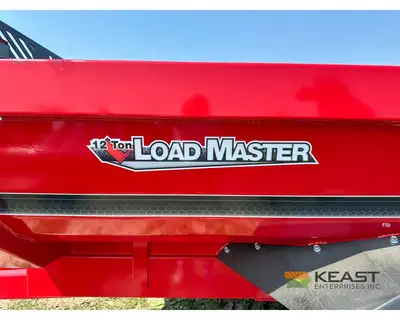

John B.M. LM12 Load Master Dump Trailer, 12-Ton Capacity
Overview

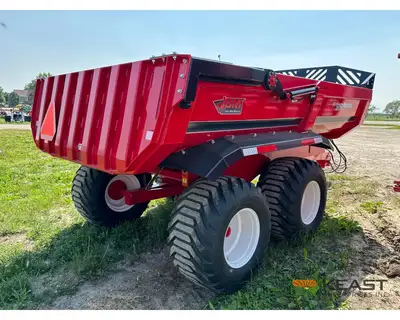

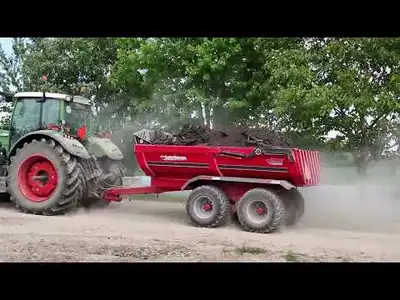

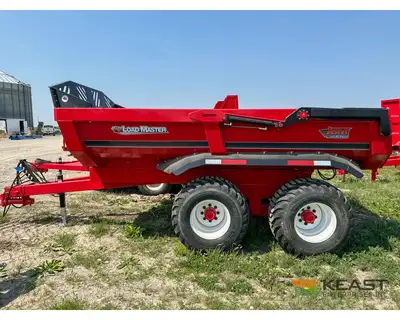

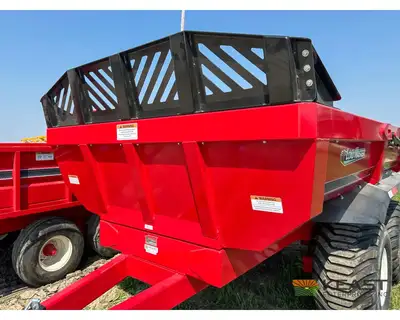

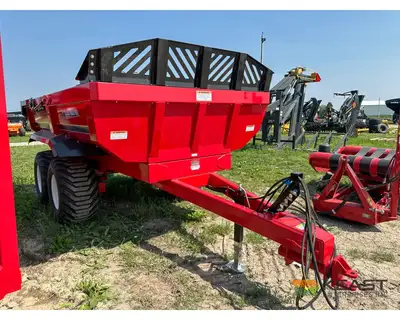

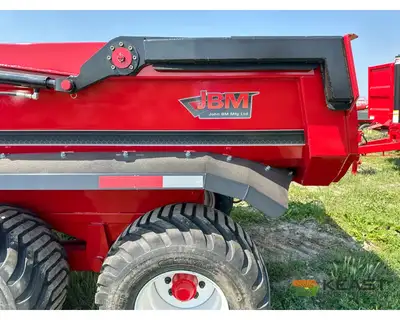

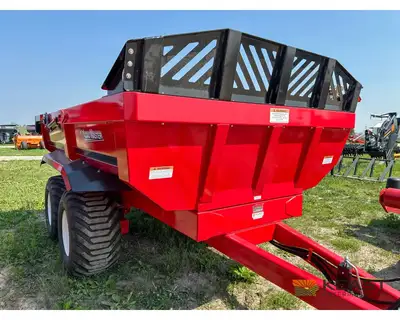

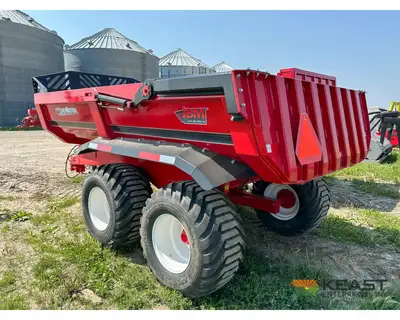

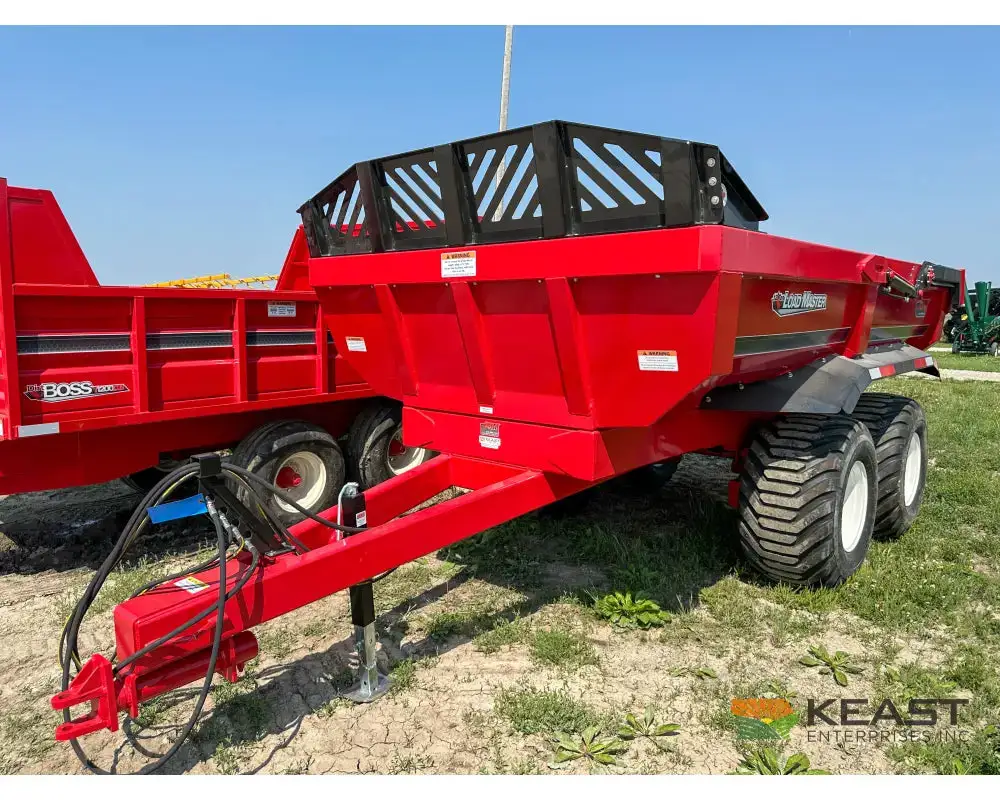

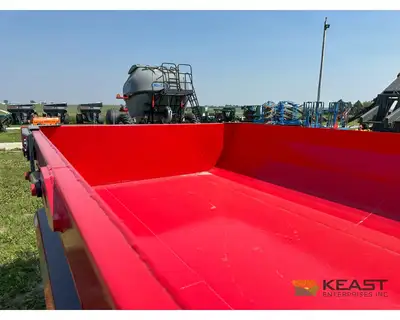

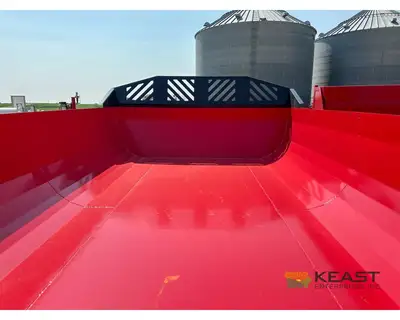

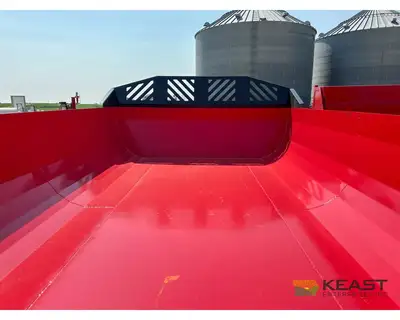

The John B.M. LM12 Load Master is a 12-ton pull-type dump trailer for soil, gravel, stone, grain, land-clearing debris, manure, and other bulk material. Its box measures 7 feet wide by 12 feet long with 24-inch sides. The box combines 1/4-inch formed-steel sides with a 3/16-inch Hardox 500 Tuf wear-resistant steel floor.
Tailgate, Hoist, and Running Gear

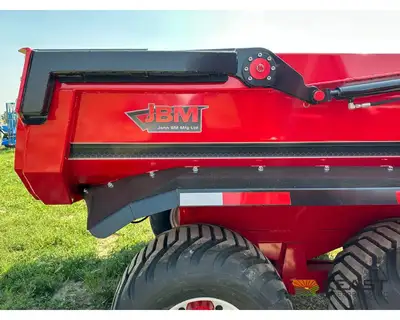

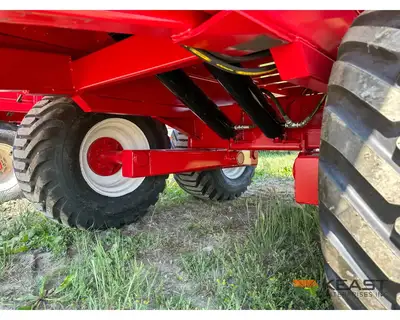

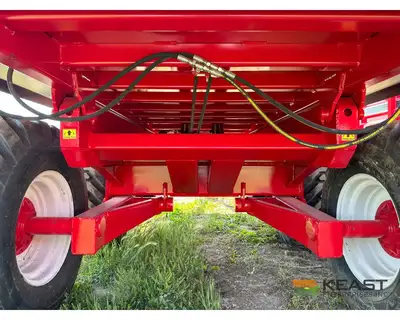

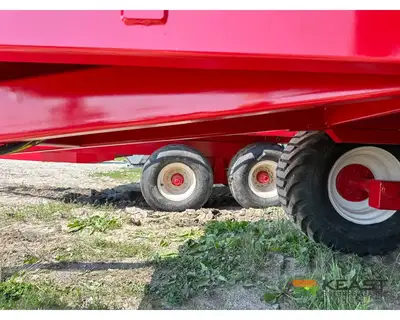

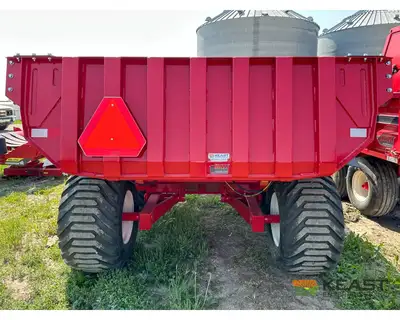

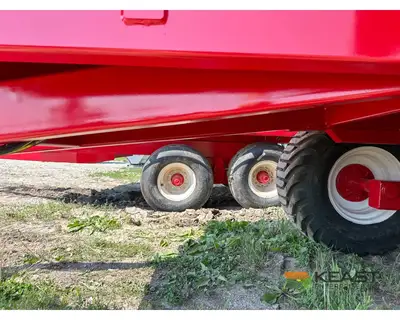

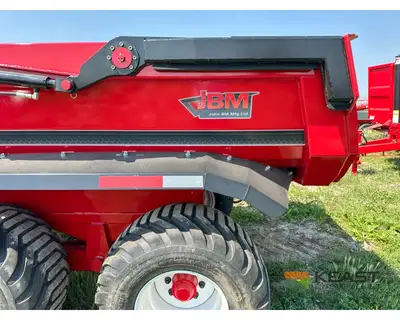

Dual 4-inch by 27-inch double-acting cylinders raise the box. The hydraulic tailgate opens more than 2 feet above the sides and includes a grain door. A swivel hitch, 8,000-pound drop-leg jack, 12,000-pound hubs and spindles, and 500/50 x 17 flotation tires complete the pull-type running gear.
John B.M. LM12 Specifications
Available Equipment
John B.M. lists safety chains and a rear light kit as options for the 12-ton Load Master. Contact us to confirm which options are included with the current LM12 configuration.
Before Ordering
Confirm tractor drawbar compatibility, hydraulic pressure and couplers, loaded trailer weight, road-lighting and braking requirements, and the material being hauled. Contact us at [email protected] for pricing, delivery information, and help reviewing the LM12 configuration.
Sales are limited to IA, KS, NE, MI, CO, IL, NM, OK, TX, and AR.
Specs
Rated capacity: 12 tons
Box dimensions: 7 ft wide x 12 ft long x 24 in sides
Side material: 1/4 in formed steel
Floor material: 3/16 in Hardox 500 Tuf wear-resistant steel plate

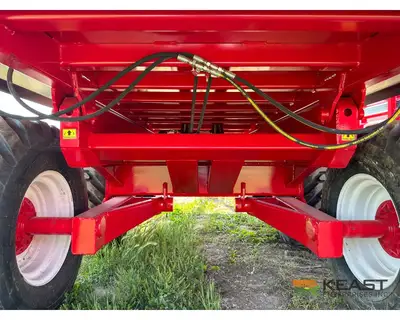

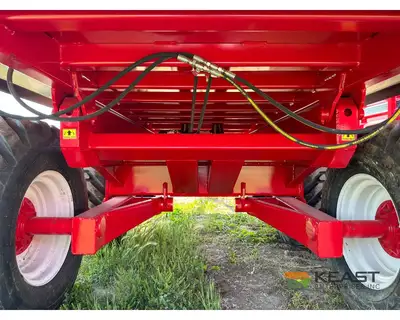

Hydraulic cylinders: Dual 4 in x 27 in double-acting; hoses included

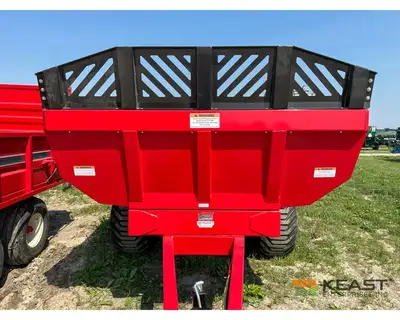

Tailgate: Hydraulic with grain door; opens more than 2 ft above the sides

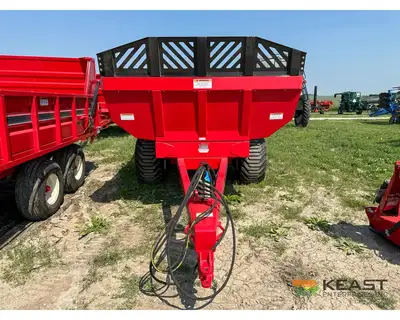

Hitch: Swivel hitch
Jack: 8,000 lb drop-leg

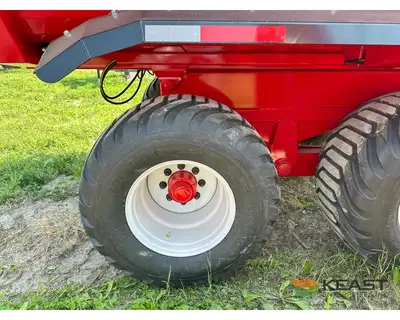

Hubs and spindles: 12,000 lb, 8-bolt

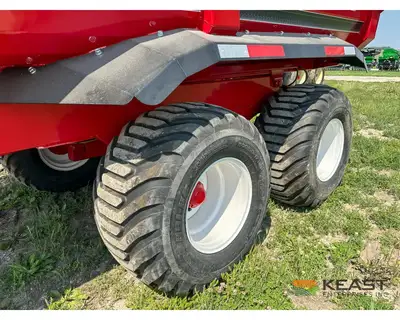

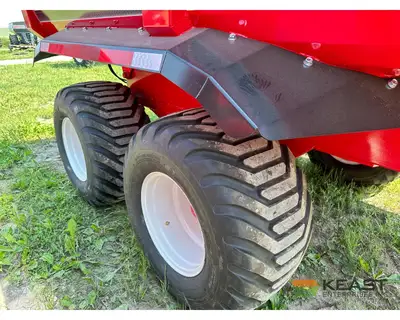

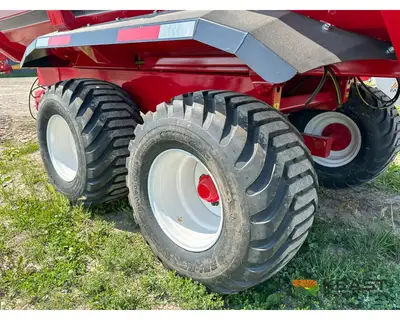

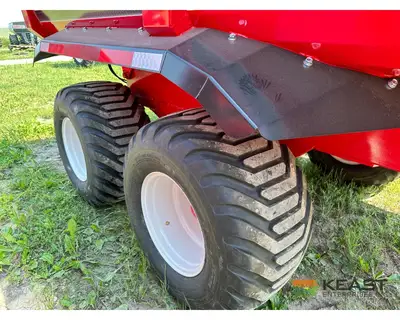

Tires: 500/50 x 17, 18-ply flotation
