Icon 6510 Construction Disc, 10' 9" Working Width
Overview

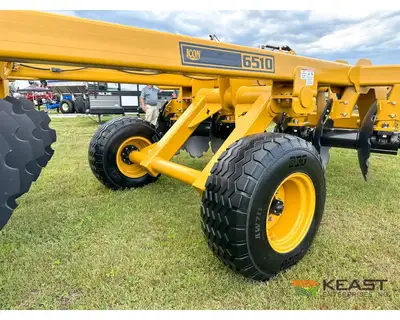

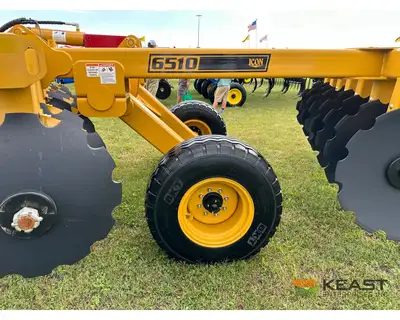

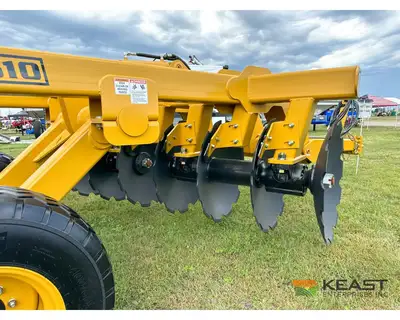

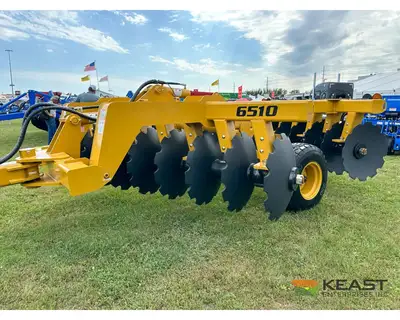

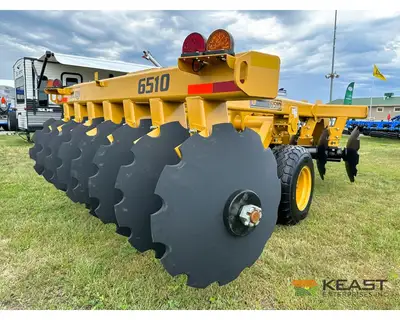

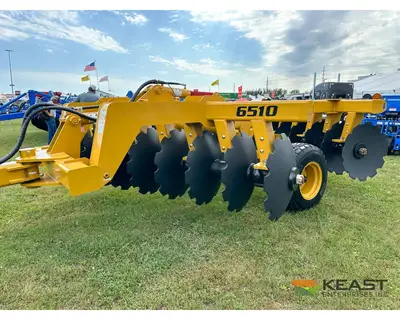

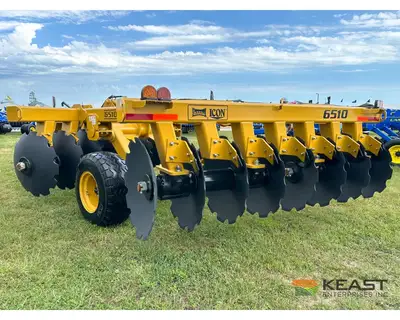

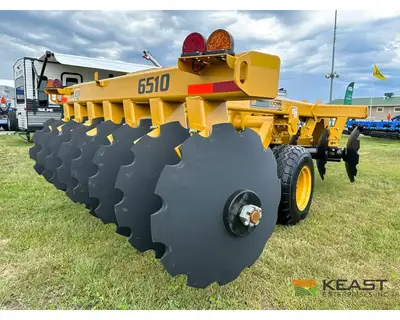

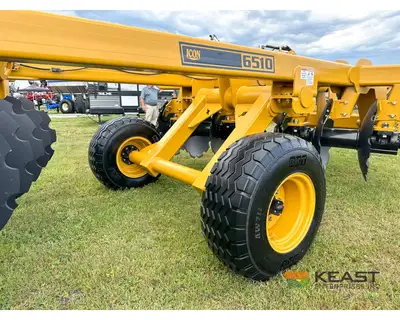

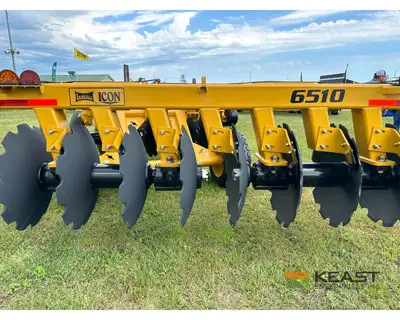

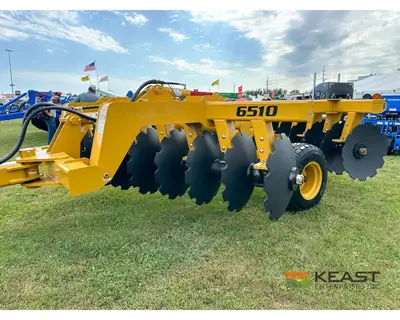

The Landoll Icon 6510 is a construction disc for breaking and mixing soil on earthmoving and site-preparation jobs. Its widely spaced notched blades provide clearance for large clods and debris, and the heavy frame carries rigid-mount oil-bath gang bearings.

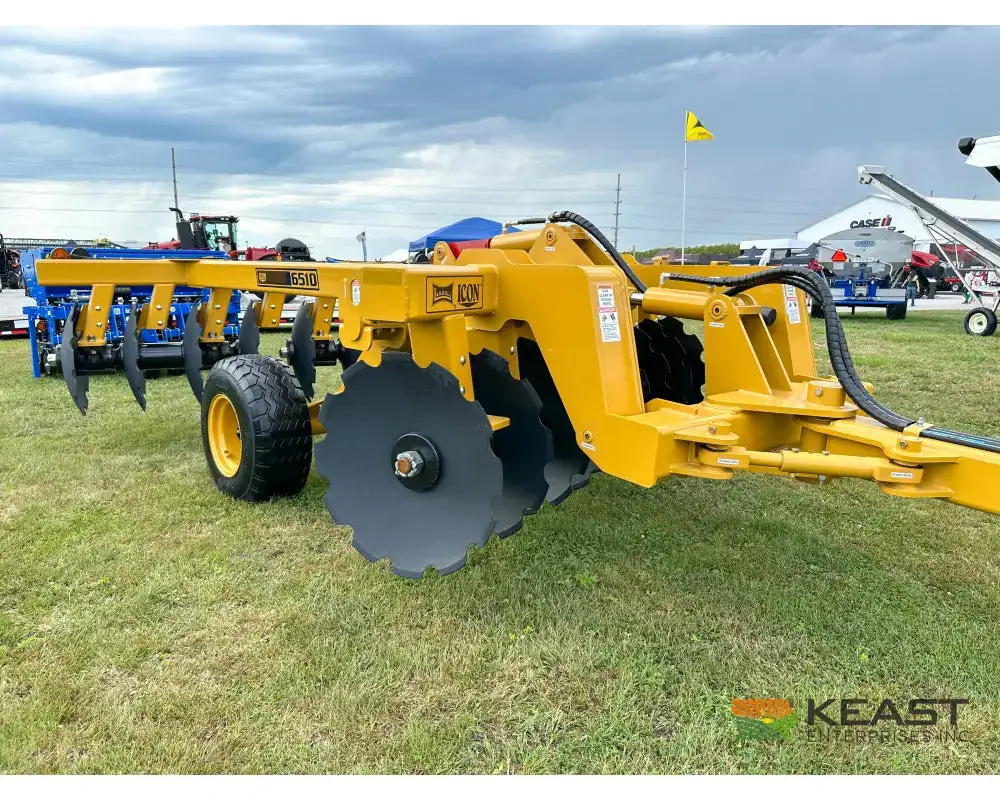

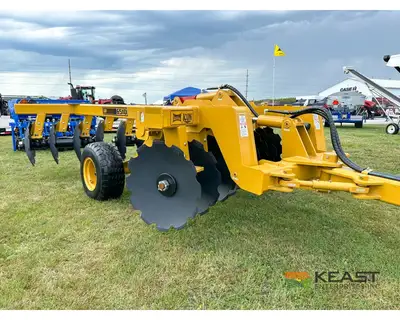

The blade options suit different requirements for penetration and wear. The hydraulic draft and leveling adjustment helps set the disc behind the tractor, while the swivel pintle hitch allows movement between the tractor and implement.
Specifications
Confirm which blade size is being quoted, since it changes both weight and the disc's working characteristics. Tractor selection should account for the soil, working depth, and the machine's transport width.
Specs
Working Width: 10 ft. 9 in.
Transport Width: 11 ft. 11 in.

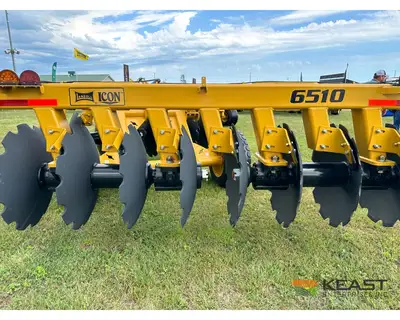

Number of Blades: 16 total; 8 front and 8 rear

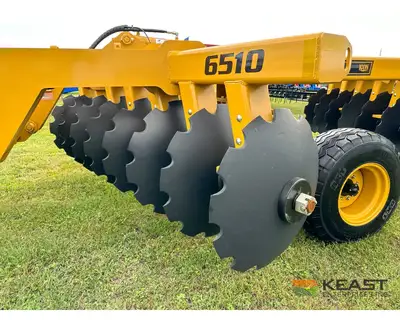

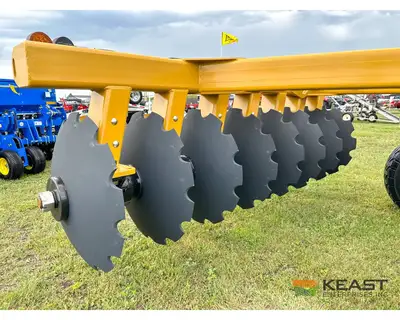

Blade Diameter: 32 in. or 36 in.
Blade Spacing: 17.5 in.
Gang Bearings: Rigid-mount oil-bath bearings
Approximate Weight: 11,500 lb with 32-in. blades; 12,396 lb with 36-in. blades
Horsepower Requirement: 20-30 HP per foot

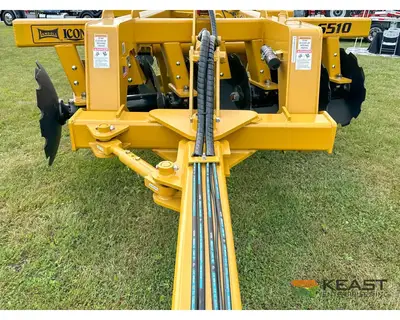

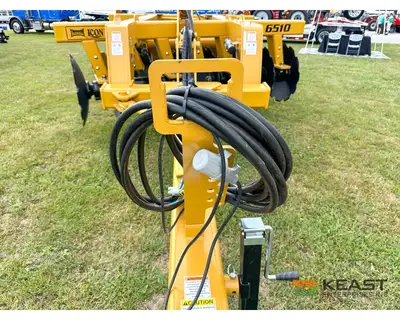

Hitch: 360-degree swivel pintle hitch
Blade thickness: 10 mm with 32-in. blades; 12 mm with 36-in. blades
Gang angles: 20 degrees front; 18 degrees rear
Maximum published penetration: 15 in.
Frame / gang shafts: 8-in. structural frame; 2.5-in. gang shafts
