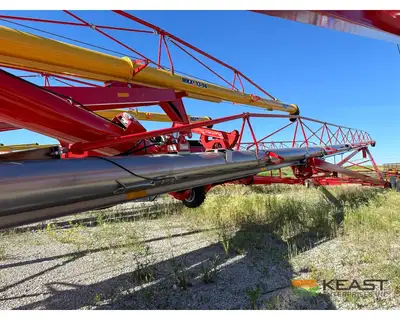

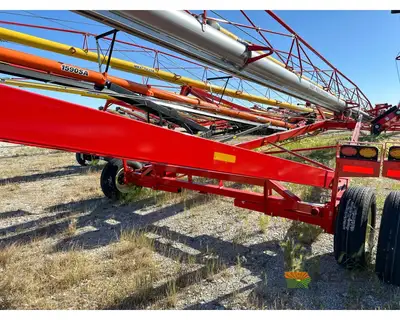

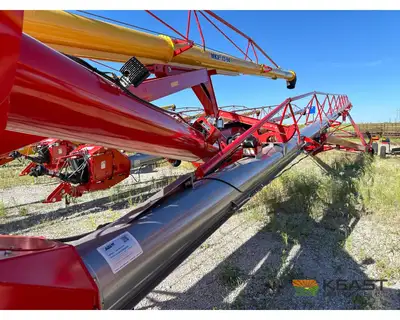

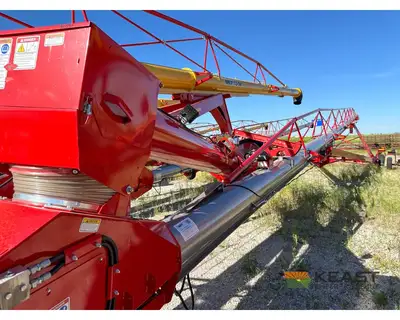

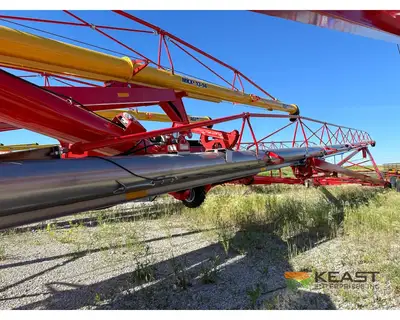

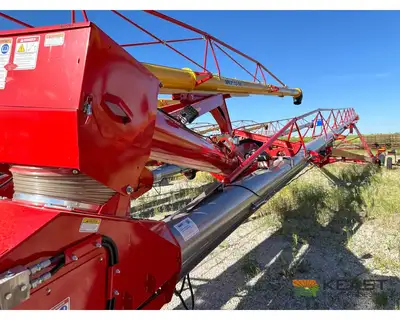

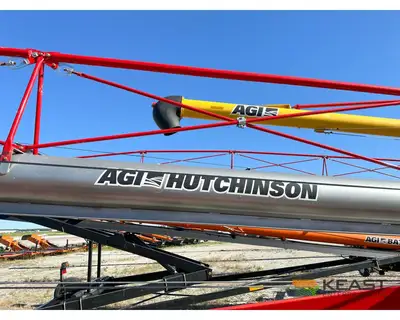

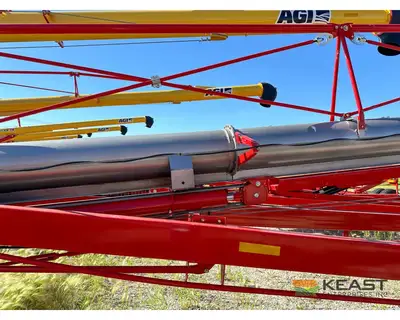

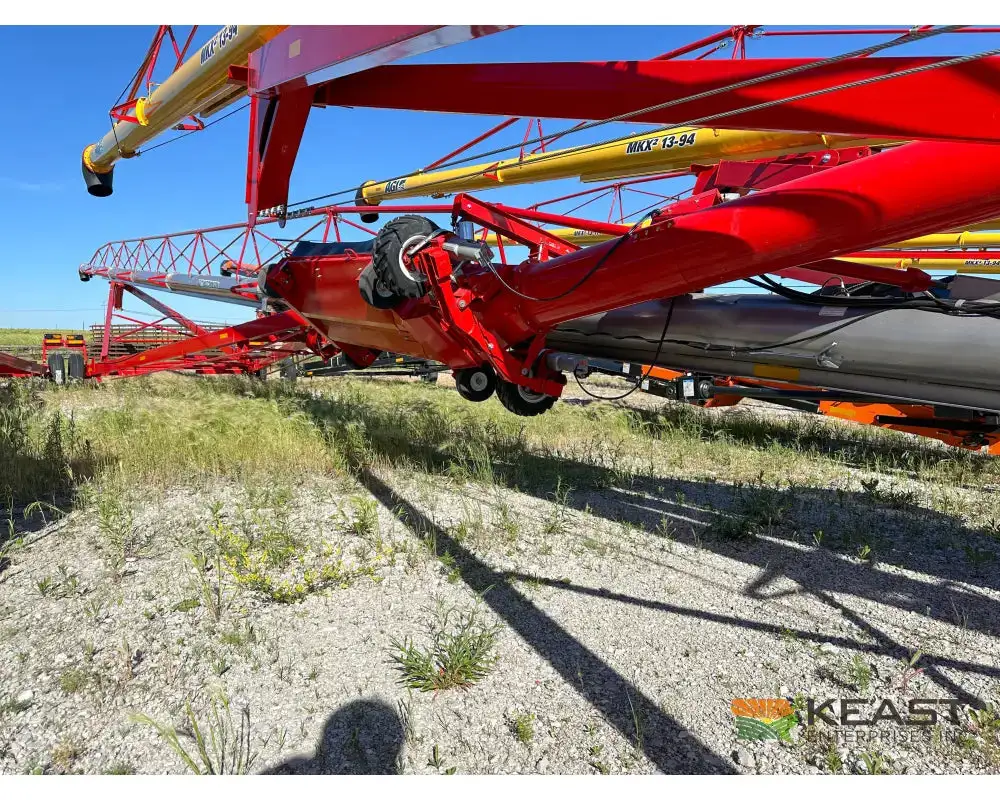

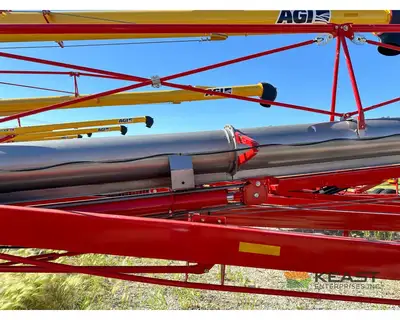

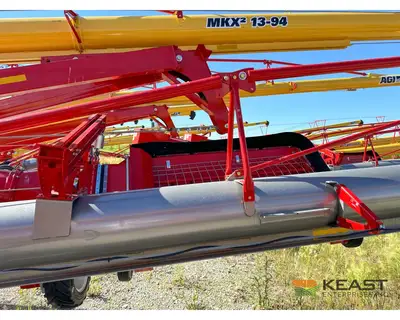

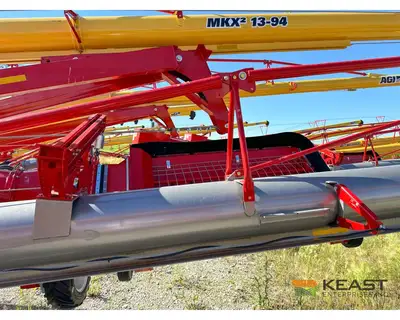

Hutchinson HX2 13-114 Swing-Away Auger, 13" x 114', A-Frame Support

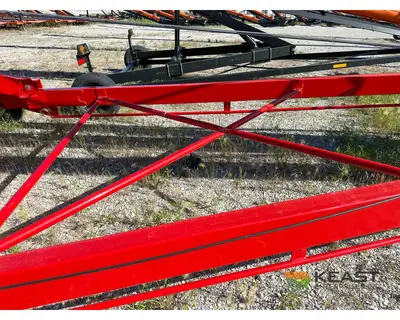

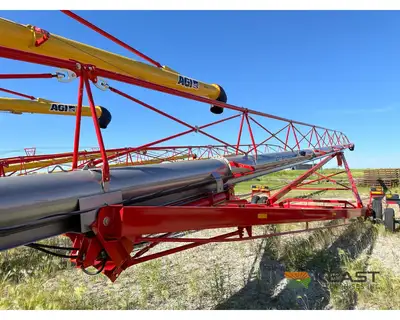

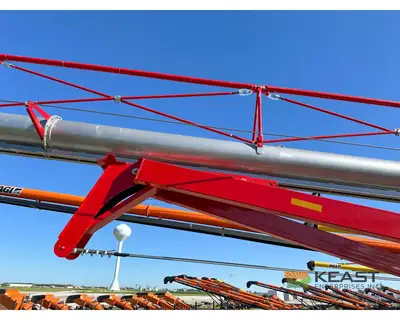

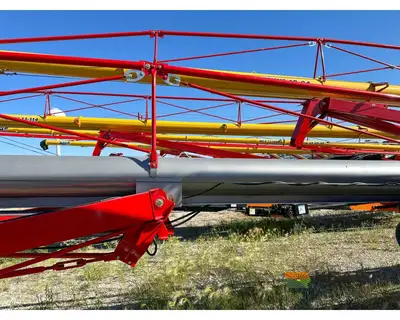

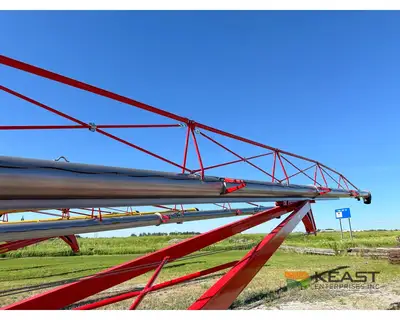

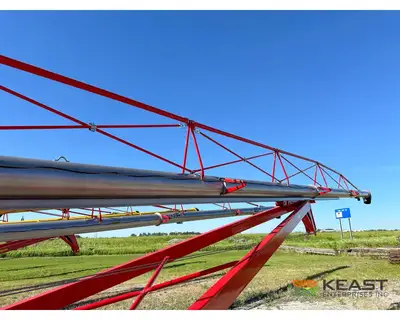

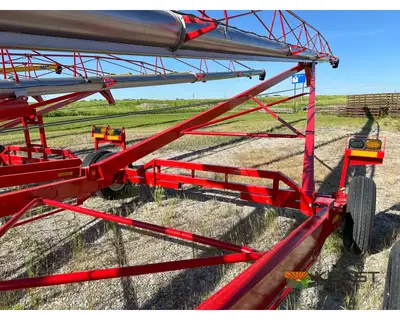

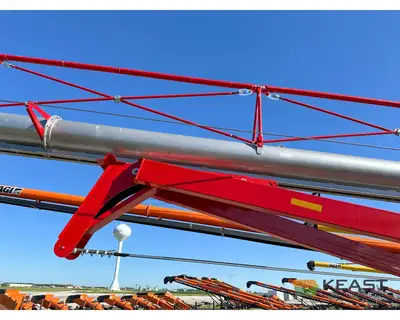

The Hutchinson HX2 13-114 is a 114-foot swing-away grain auger with a 13-inch tube, A-frame support, and rigid steel trussing. It is built for tall-bin filling, with the HX2 13-inch series rated at up to 11,000 bushels per hour.

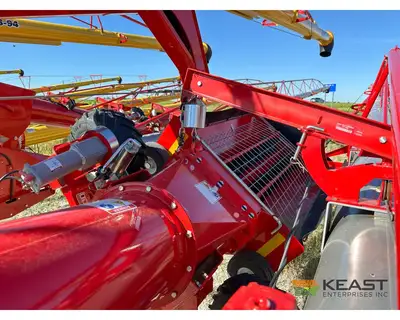

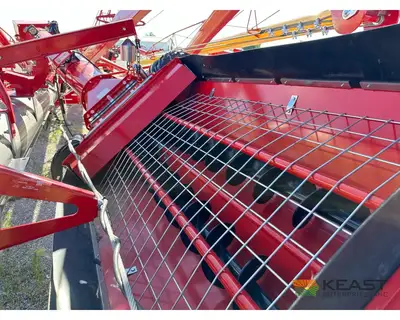

The long A-frame auger needs room for the tractor, truck, and hopper as well as the discharge. AGI’s current model chart gives a fully raised discharge height of 68 feet 11 inches and a horizontal discharge reach of 46 feet 2 inches. Those two measurements describe the same raised position and should be checked together against the bin.
Specifications

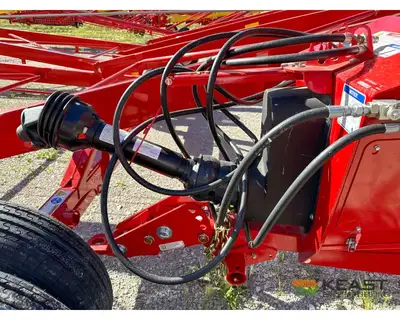

AGI measures discharge height from the bottom of the spout to the ground. Use the chart for the intended auger position, and include bin eave clearance and the approach needed for transport. Power-swing and winch options are specified separately; the tractor’s PTO, hydraulics, and connections must match the equipment supplied.
