Used

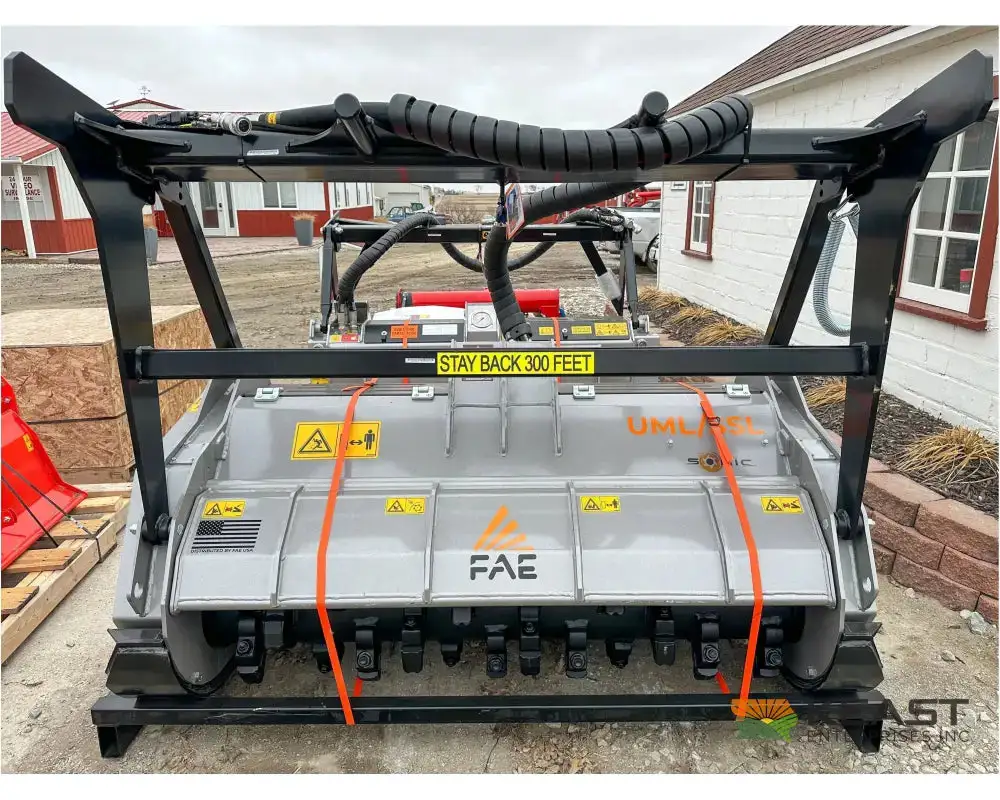

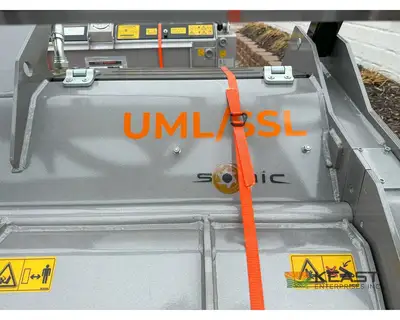

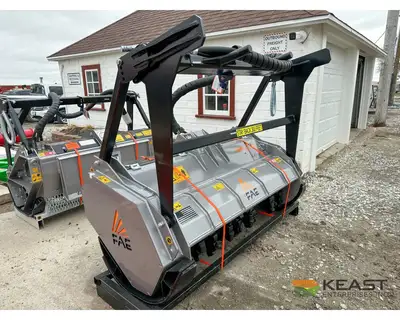

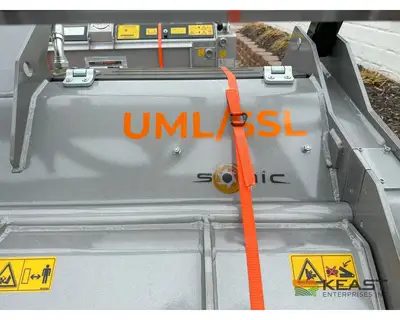

FAE UML/SSL 150 High Flow Mulcher, 62" Cut Width, 8" Cut Capacity, High Flow

Iowa, United States
Asking Price
USD $48,281.00
1 available
608Listings|6Followers
Overview
Forestry Grinders

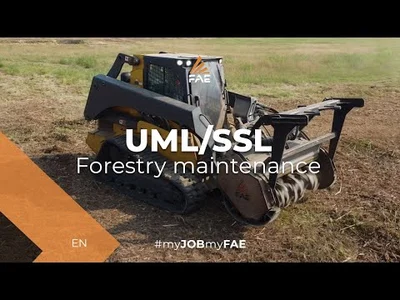

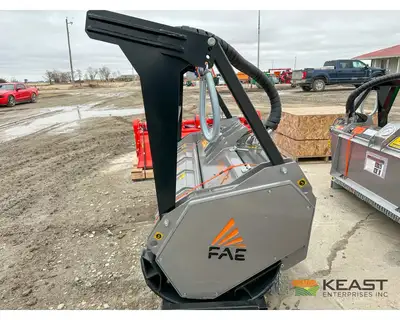

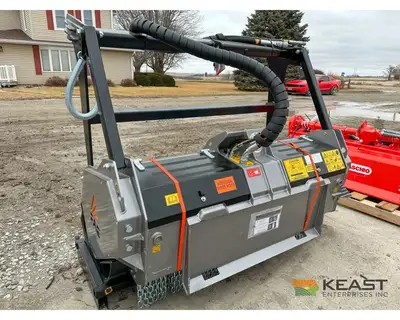

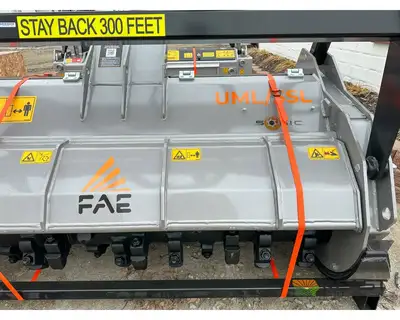

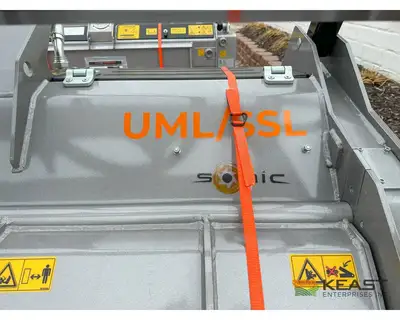

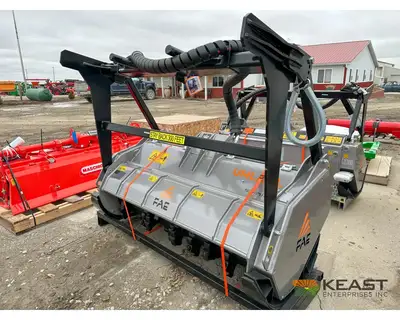

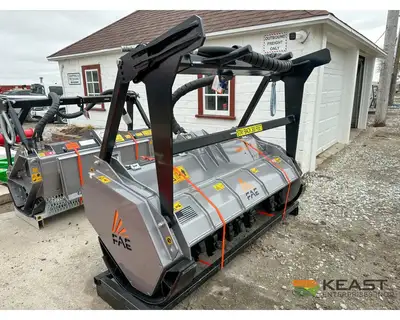

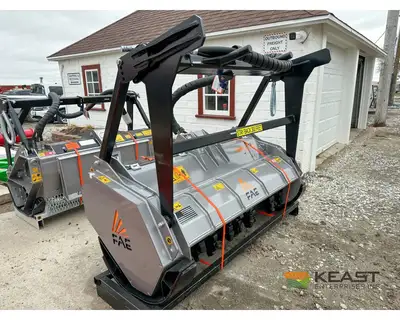

The FAE UML/SSL 150 is a 62-inch forestry mulcher for 75- to 135-horsepower skid steers and compact track loaders. Its published eight-inch maximum shredding diameter places it in heavier brush, tree, right-of-way, and land-clearing work where a high-flow carrier is available.

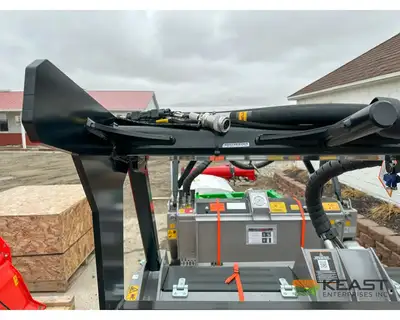

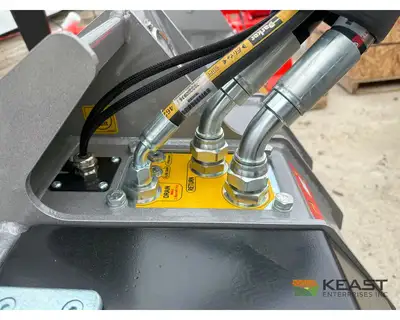

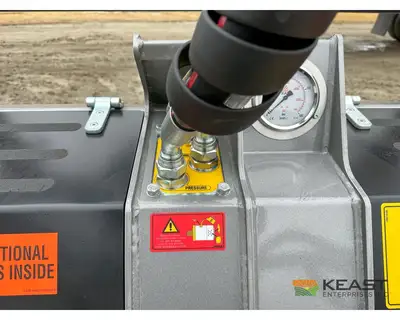

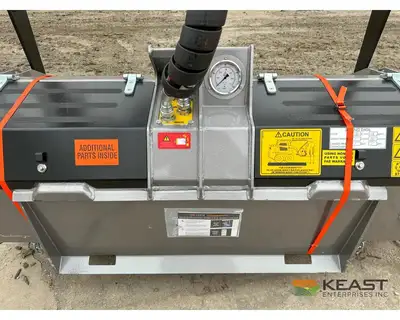

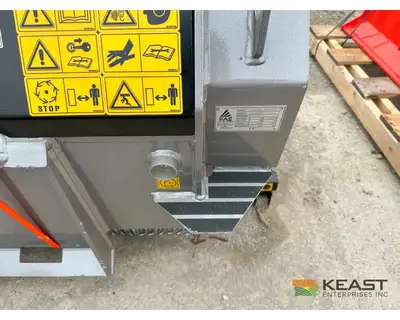

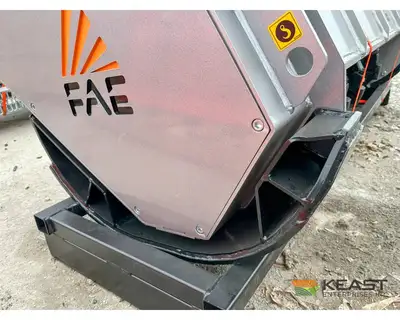

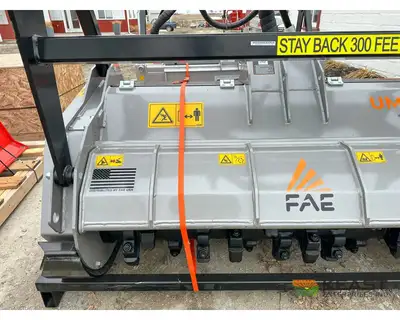

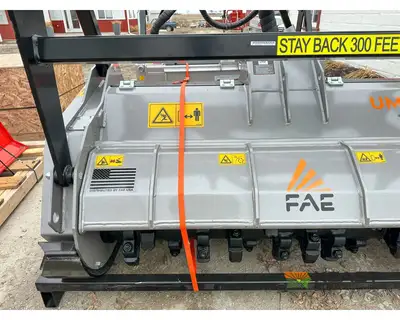

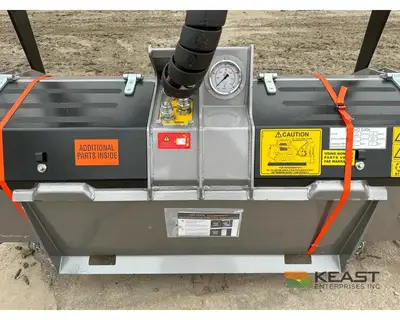

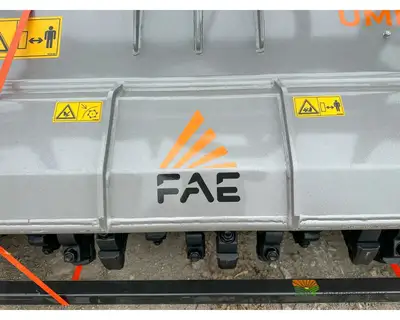

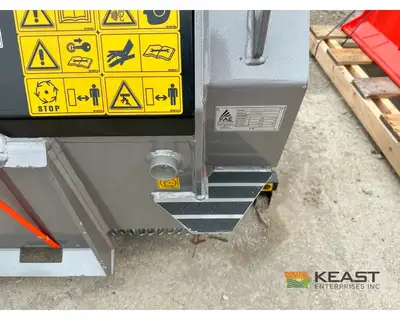

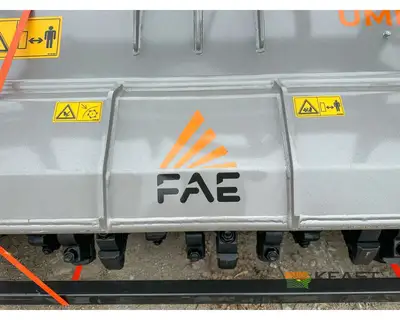

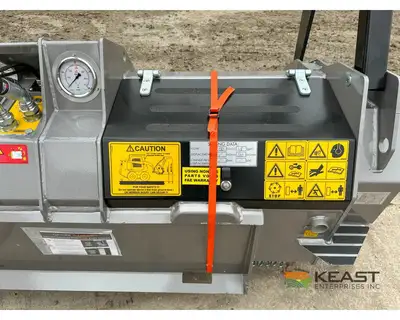

FAE offers this family with different rotor and motor combinations, including Bite Limiter, variable-torque, and SONIC versions. The head uses an enclosed frame, adjustable skids, replaceable wear surfaces, protection chains, and hydraulic relief and anticavitation valves. The selected rotor and motor determine the tools, hydraulic requirement, and electrical connection.
Specifications

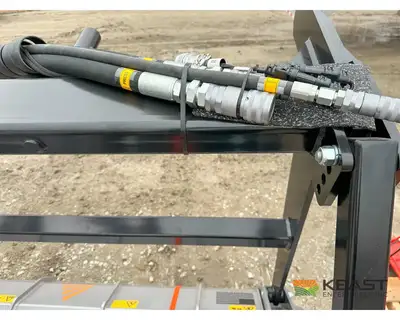

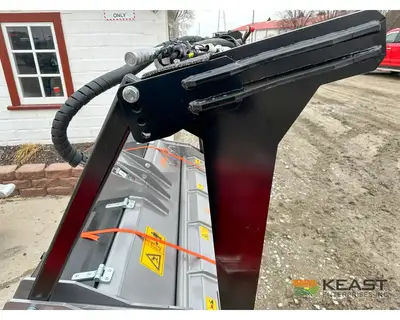

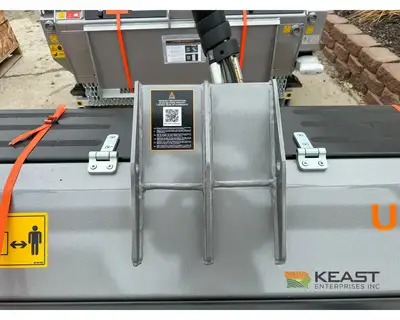

To match the head correctly, provide the carrier make and model, rated operating capacity, engine horsepower, auxiliary flow and pressure, high-flow package, case drain, couplers, and electrical connector. The quote should identify the ordered motor, rotor, tools, mount, and wiring rather than treating every UML/SSL 150 as the same configuration.

Specs

Working width: 62 in.
Published maximum shredding diameter: 8 in.
Carrier range: 75-135 HP skid steer or compact track loader
Hydraulic flow: 32-53 GPM
Operating pressure: 2,900-5,080 PSI
Motor: VT or SONIC piston motor

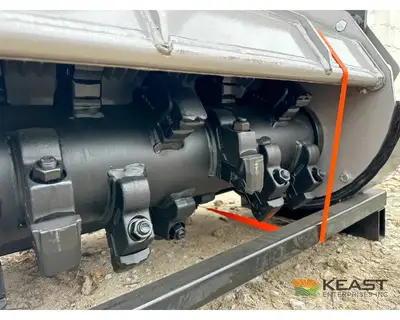

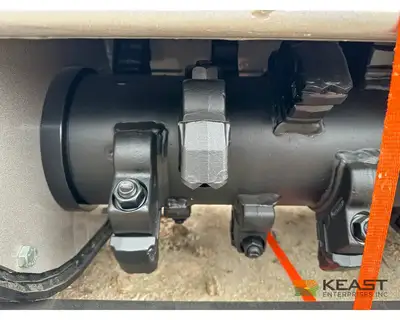

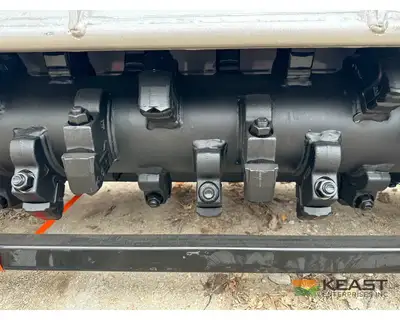

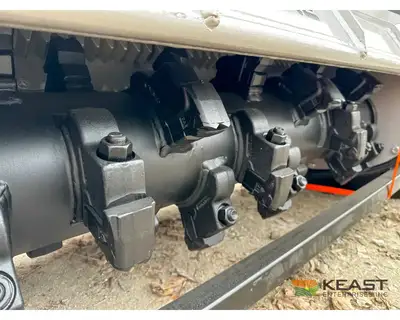

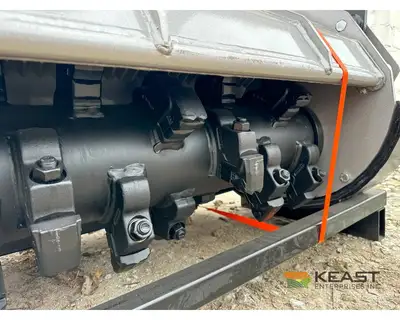

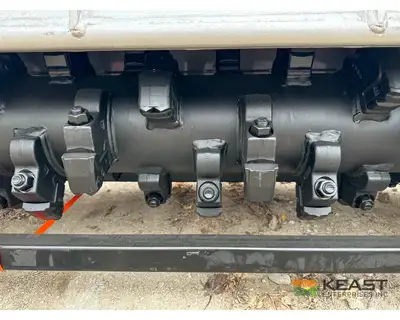

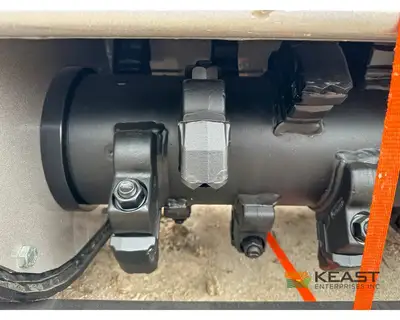

Tools: 32 + 2 BL/C3 or C3/SS forged tools
Rotor diameter: 16.5 in.
Transmission: Poly-Chain belt drive
Approximate weight: 2,866 lb.
